Warn 97720 M12-S 12V Electric Recovery Winch with Spydura

Save $1,047.00
WarnSKU: 13-7421

Price:
Sale price$3,184.00 Regular price$4,231.00

Shipping calculated at checkout

Stock:
In stock (86 units), ready to be shipped

Description

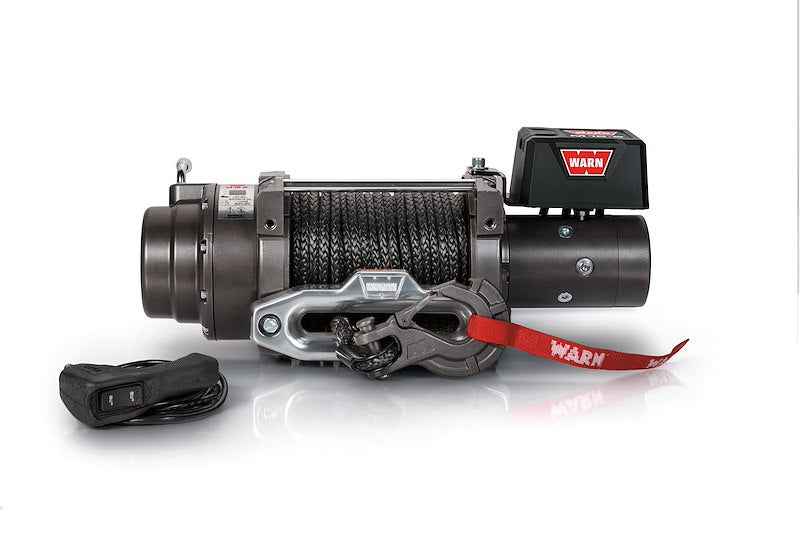

Take on demanding recovery situations with the WARN 97720 M12-S Electric Recovery Winch. This brand new premium recovery winch combines WARN's proven large-frame winch platform with 100 feet of Spydura® synthetic rope, providing exceptional strength, reduced weight, and easier handling than traditional steel cable.

Product Details

  • Designed for large pickup trucks, SUVs, overland vehicles, commercial vehicles, and off-road applications, the M12-S delivers a 12,000-pound maximum line pull using a powerful 12-volt series wound motor and durable three-stage planetary gear drive with a 261:1 gear reduction ratio. The heat-treated Spydura® synthetic rope includes a temperature-resistant protective sleeve for outstanding durability and long service life.
  • A hawse fairlead, wired remote control, automatic cone brake, and included mounting hardware complete one of WARN's most capable premium recovery winches.

Features

  • Genuine WARN 97720 OEM product
  • Brand new
  • M12-S Series vehicle recovery winch
  • 12,000-pound maximum pulling capacity
  • Powerful 12-volt electric operation
  • High-efficiency series wound motor
  • Durable three-stage planetary gear drive
  • 100-foot Spydura® synthetic rope
  • Heat-resistant protective sleeve on first rope layer
  • Hawse fairlead included
  • Wired remote control included
  • Automatic cone brake
  • Free-spooling clutch
  • Large-frame winch architecture
  • Reliable contactor-controlled electrical system
  • Mounting hardware included

Specifications

  • Manufacturer Part Number: 97720
  • NTP Part Number: 13-7421
  • Series: M12-S
  • Product Type: Vehicle Recovery Winch
  • Rated Line Pull: 12,000 Pounds
  • Operation: Electric
  • Voltage: 12 Volt DC
  • Motor Type: Series Wound
  • Drive Gear: Planetary
  • Gear Reduction Ratio: 261:1
  • Line Material: Spydura® Synthetic Rope
  • Line Length: 100 Feet
  • Line Diameter: 3/8 Inch
  • Fairlead Type: Hawse
  • Brake Type: Automatic Cone
  • Remote Type: Wired
  • Electrical Controls: Contactors
  • Maximum Amp Draw: 440 Amps
  • Line Speed at Maximum Pull: 3.9 Feet Per Minute

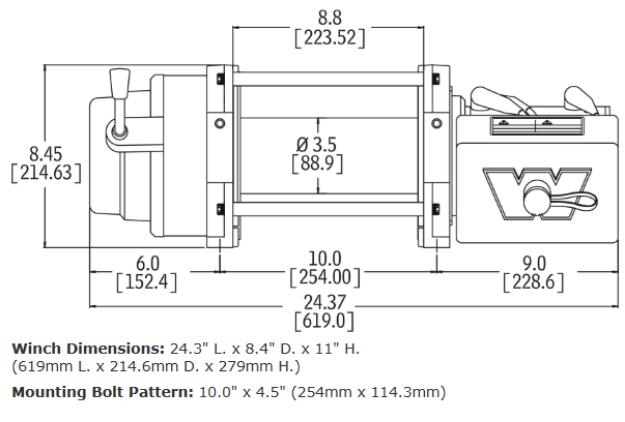

  • Mounting Pattern: 10 Inches x 4-1/2 Inches
  • Mounting Hole Quantity: 4
  • Mounting Hardware Included: Yes
  • Color: Gray
  • Estimated Installation Time: Approximately 2 Hours

Compatibility

  • Suitable for a wide variety of:
  • Full-size pickup trucks
  • Heavy-duty pickup trucks
  • SUVs
  • Off-road vehicles
  • Overland vehicles
  • Commercial vehicles
  • Utility trucks
  • Service trucks
  • Recovery vehicles

Vehicle Notes

  • Universal application
  • Fits standard 10 inch x 4-1/2 inch winch mounting pattern
  • Designed for heavy-duty recovery applications
  • Requires a compatible winch mounting plate or winch-ready bumper
  • Includes mounting hardware
  • Important: Verify your vehicle's winch mounting system, electrical capacity, bumper compatibility, mounting pattern, and manufacturer part number before ordering.

Warranty

  • Limited Lifetime Manufacturer Warranty
