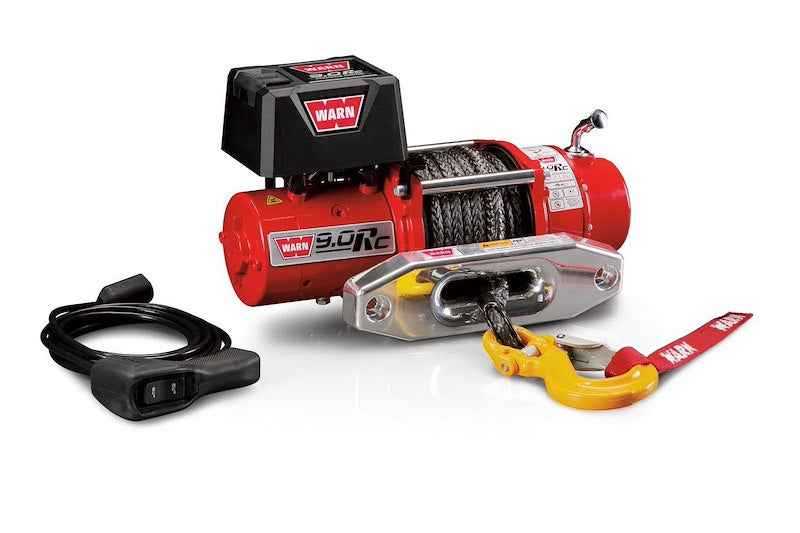

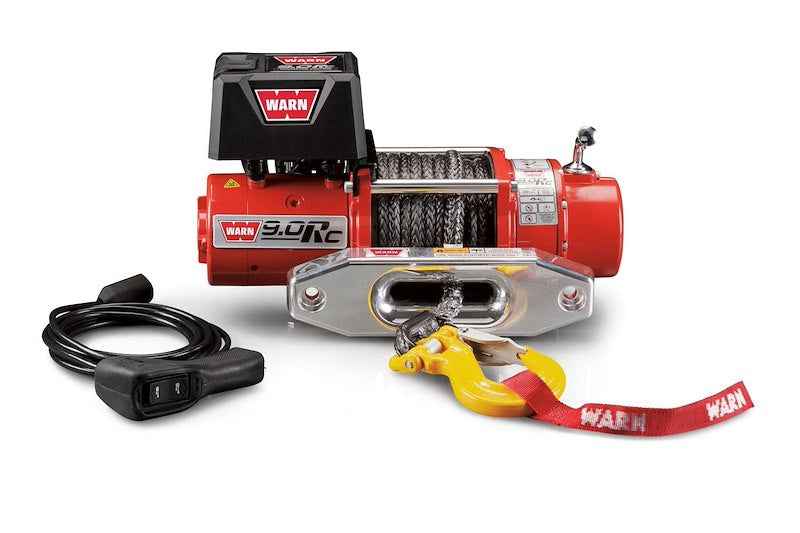

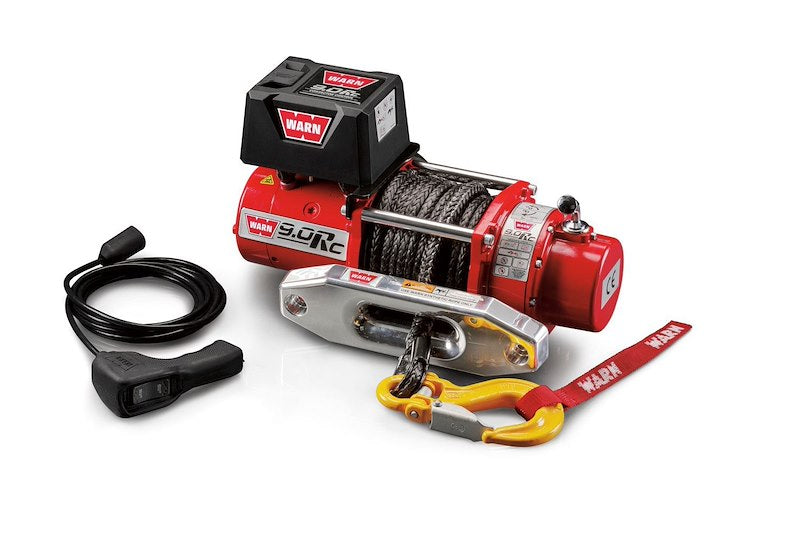

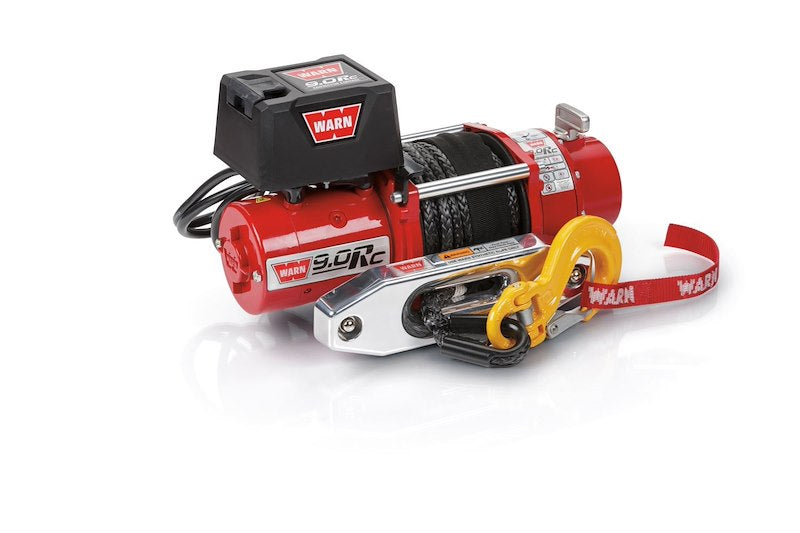

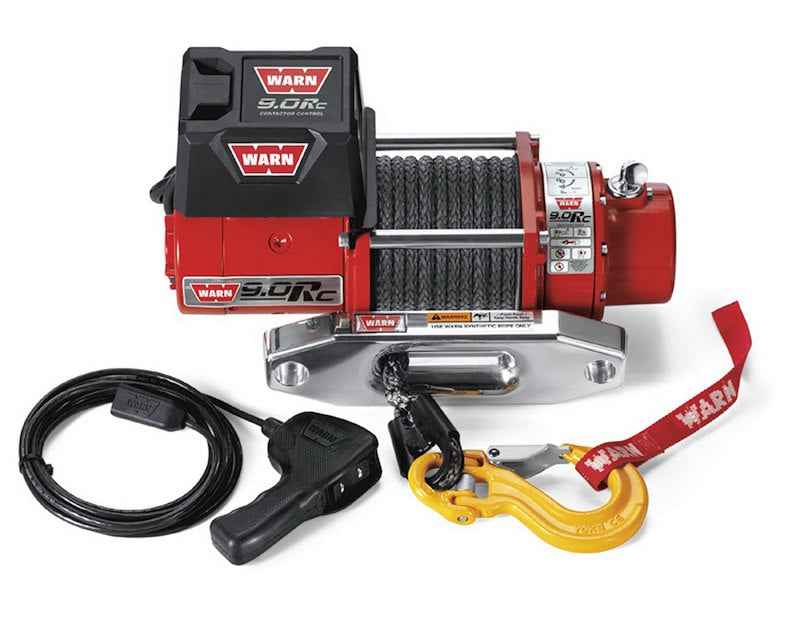

Warn 71550 9.0Rc 9,000 lb Vehicle Recovery Winch, 50' Synthetic Rope & Hawse Fairlead

Save $940.00
WarnSKU: 13-7362

Price:
Sale price$2,861.00 Regular price$3,801.00

Shipping calculated at checkout

Stock:
In stock (48 units), ready to be shipped

Description

Equip your off-road or rock-crawling vehicle with the WARN 71550 9.0Rc Vehicle Recovery Winch. This brand new compact recovery winch delivers a 9,000-pound line pull capacity from a powerful 4.8 horsepower series-wound motor while maintaining a low-profile, lightweight design suited to demanding off-road applications.

Product Details

  • The 9.0Rc includes 50 feet of 3/8-inch synthetic rope, an aluminum hawse fairlead, and a wired remote control. Its planetary gear drive, automatic cone brake, and next-generation control pack are designed to provide dependable recovery performance, long duty cycles, and fast line speed under load.

Features

  • Genuine WARN 71550 9.0Rc vehicle recovery winch
  • Brand New
  • 9,000 lb maximum line pull capacity
  • Compact low-profile design
  • Designed for vehicle recovery and rock crawling
  • 12-volt electric operation
  • Powerful 4.8 HP series-wound motor
  • 50-foot synthetic rope
  • 3/8-inch rope diameter
  • Aluminum hawse fairlead
  • Wired remote control
  • Planetary gear drive
  • Free-spooling capability
  • Automatic cone brake
  • Next-generation contactor control pack
  • Ballistic nylon sliding sleeve helps protect synthetic rope from abrasion and wear
  • Gloss red finish with primer undercoat for corrosion resistance
  • Fast line speed under load
  • Limited lifetime warranty

Specifications

  • Manufacturer Part Number: 71550
  • Series: 9.0Rc
  • Product Type: Vehicle Recovery Winch
  • Recommended Use: Vehicle Recovery
  • Maximum Line Pull: 9,000 lb
  • Operation Type: Electric
  • Voltage: 12 Volt
  • Motor Type: Series Wound
  • Motor Output: 4.8 Horsepower
  • Gear Type: Planetary
  • Gear Reduction Ratio: 261:1
  • Brake Type: Automatic Cone
  • Free Spooling: Yes
  • Rope Material: Synthetic
  • Rope Length: 50 Feet
  • Rope Diameter: 3/8 Inch
  • Fairlead Type: Hawse
  • Remote Type: Wired
  • Maximum Amp Draw: 408 Amps at 9,000 lb
  • Line Speed at Maximum Pull: 5.6 Feet Per Minute
  • Mount Type: Fixed Mount

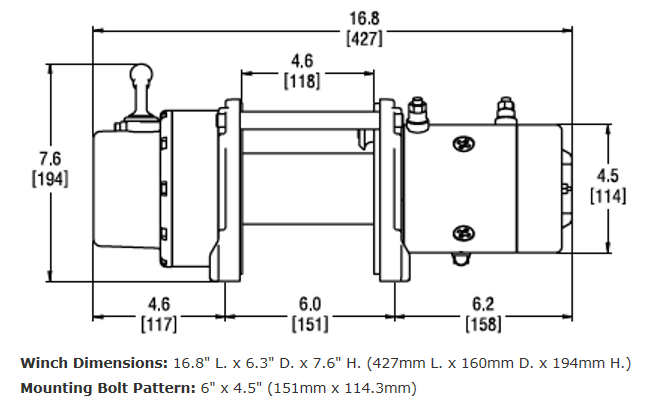

  • Mounting Pattern: 6 Inch Ɨ 4-1/2 Inch
  • Mounting Holes: 4
  • Drum Material: Aluminum
  • Control Type: Contactors
  • Color: Red
  • Estimated Installation Time: Approximately 2 Hours
  • Mounting Hardware Included: No

What's Included

  • (1) WARN 9.0Rc Winch
  • (1) 50-foot synthetic rope
  • (1) Aluminum hawse fairlead
  • (1) Wired remote control
  • Ballistic nylon rope-protection sleeve
  • Mounting Requirement
  • A compatible WARN winch mount must be used for installation.
  • Please verify the correct WARN mounting system for your specific vehicle or bumper before ordering. Mounting hardware is not included unless otherwise specified by the selected mount kit.

Applications

  • Designed for demanding vehicle-recovery applications including:
  • Rock crawlers
  • Off-road trucks
  • Jeeps and SUVs
  • Trail rigs
  • Competition vehicles
  • Custom recovery builds
  • Its compact size and low-profile design make the 9.0Rc particularly suitable where approach angle and front-end clearance are important.
  • Electrical & Installation Notes
  • Requires a 12-volt electrical system
  • Maximum current draw can reach approximately 408 amps at full 9,000 lb load
  • Verify the battery, charging system, wiring, and connections are suitable for high-current winch operation
  • Install using a compatible WARN winch mount
  • Confirm the mounting structure is rated for the winch and recovery loads
  • Route power cables away from heat, sharp edges, and moving components
  • Follow WARN installation, rigging, and recovery procedures
  • Professional installation is recommended if you are unfamiliar with high-current recovery equipment

Warranty

  • Limited Lifetime Warranty
