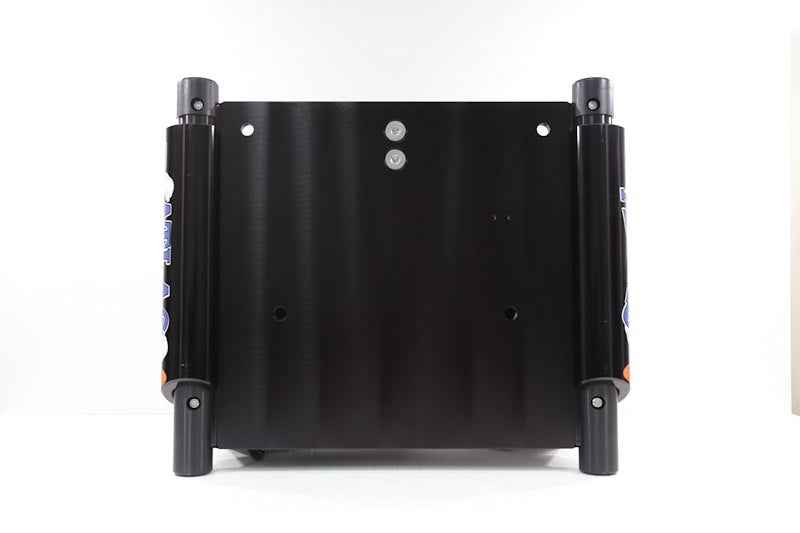

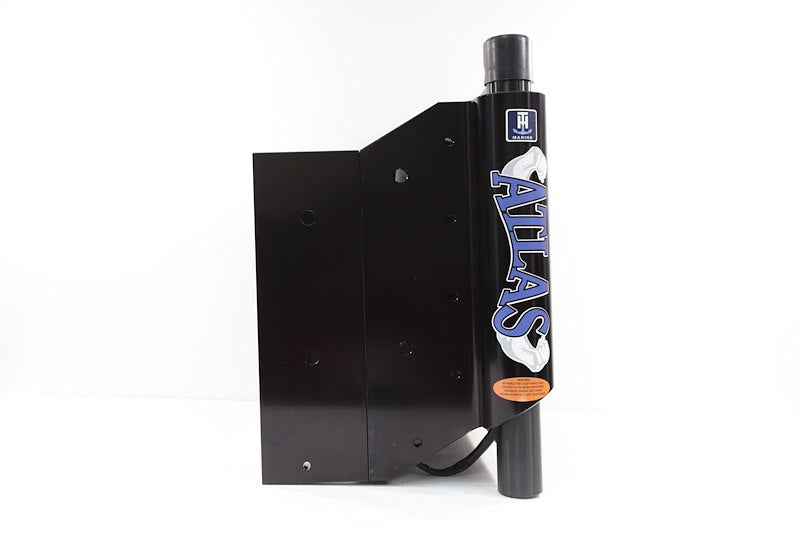

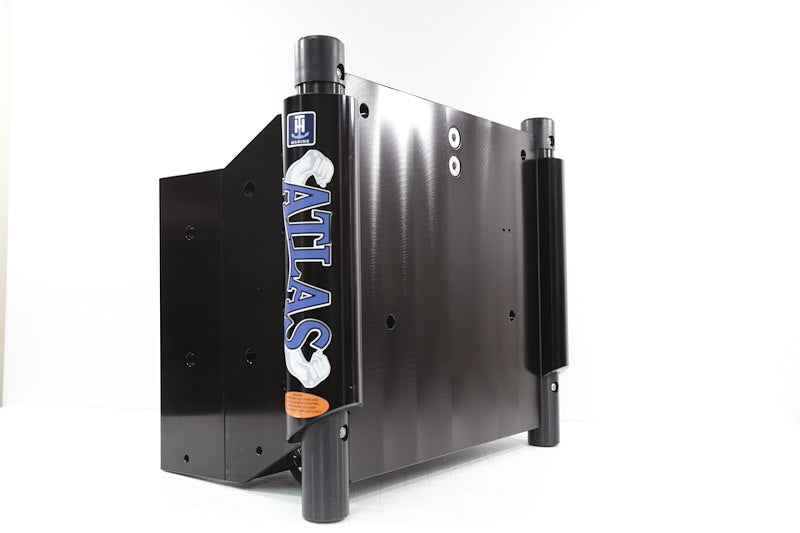

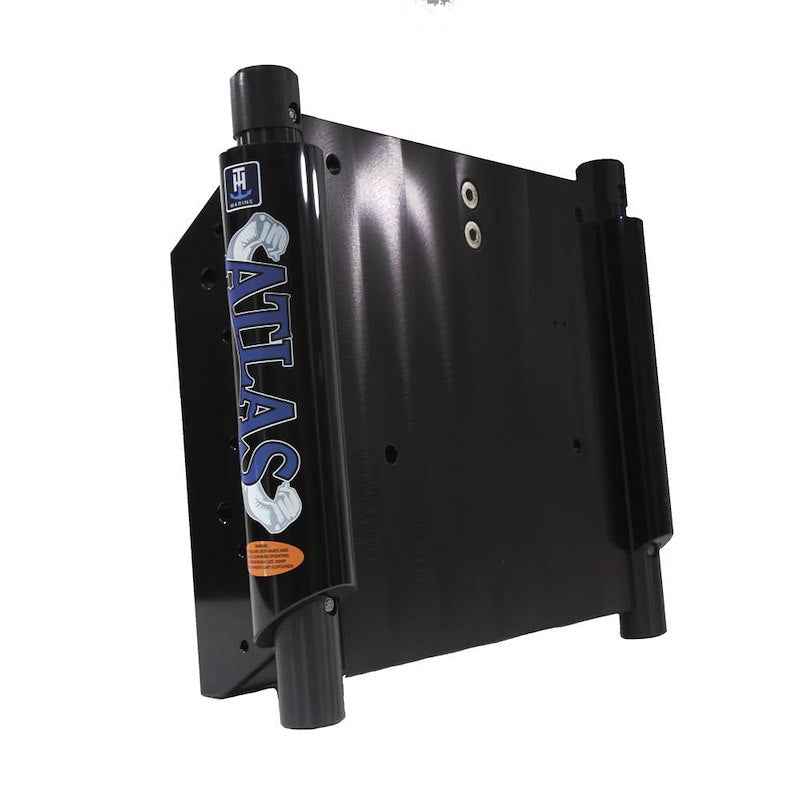

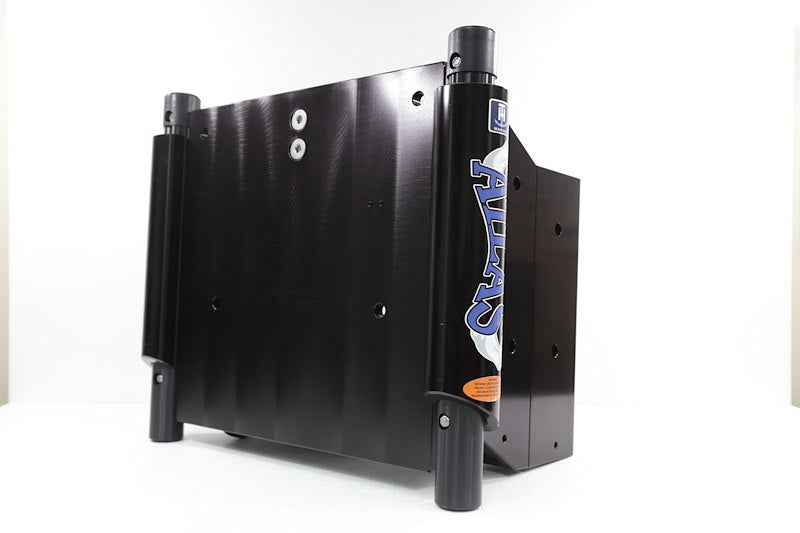

T-H Marine AHJ-12V-B-DP Atlas Hydraulic Jack Plate 12 Inch Setback

Save $997.00
T-H MarineSKU: 11-1912

Price:
Sale price$3,034.00 Regular price$4,031.00

Shipping calculated at checkout

Stock:
Only 3 units left

Description

Maximize your boat's performance with the T-H Marine AHJ-12V-B-DP Atlas™ Hydraulic Jack Plate. This brand new hydraulic jack plate is engineered to provide precise, on-the-fly height adjustment for outboard motors up to 300 horsepower, helping improve holeshot, top-end speed, fuel efficiency, and shallow water operation.

Product Details

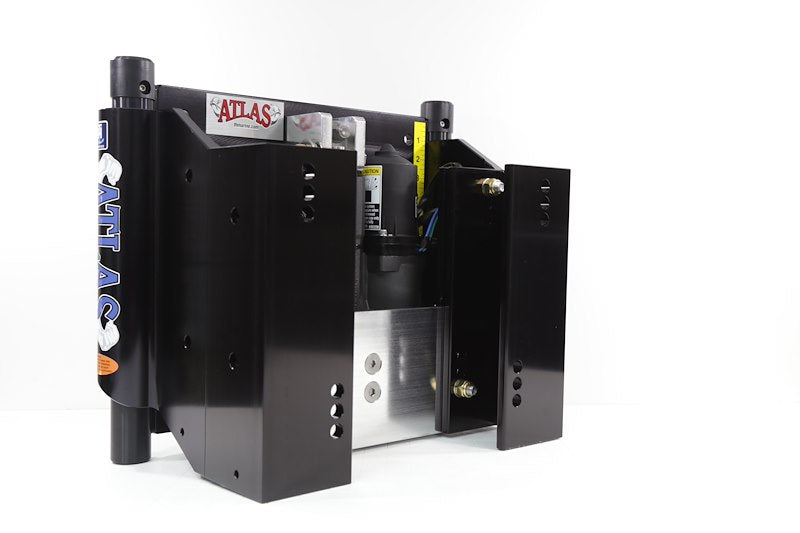

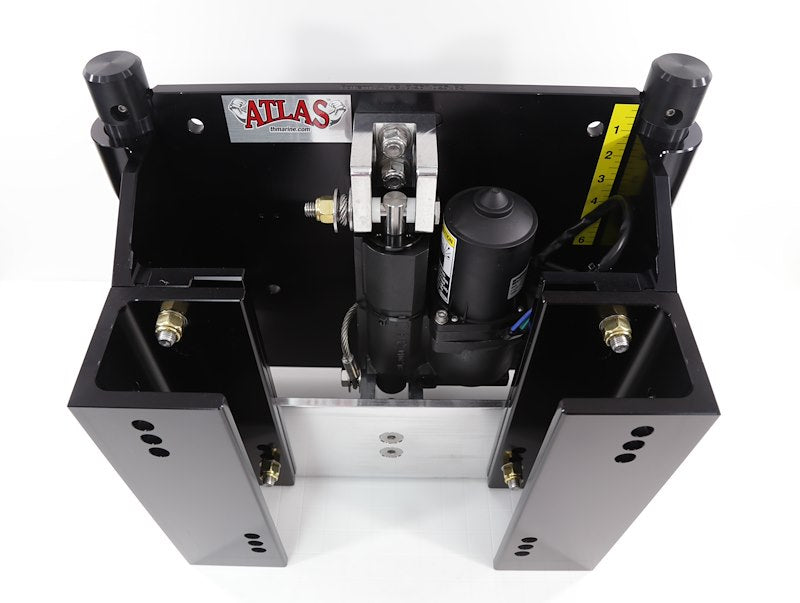

  • The Atlas™ Black Series features an innovative one-piece design with T-H Marine's patented Rod and Slot lifting system, eliminating the need for external hydraulic pumps and reservoirs. All hydraulic components are integrated directly into the jack plate, creating a cleaner installation while reducing maintenance. The powerful hydraulic system raises the engine from bottom to top in approximately 8 seconds, allowing quick adjustments to changing water conditions.
  • Constructed from high-strength anodized aluminum with a durable black finish, this jack plate is designed to withstand the demands of today's high-performance outboard engines while supporting up to 625 pounds.

Features

  • Genuine T-H Marine AHJ-12V-B-DP OEM product
  • Brand new
  • Atlas™ Black Series hydraulic jack plate
  • Hydraulic height adjustment
  • One-piece integrated hydraulic design
  • Patented Rod and Slot lifting system
  • No external hydraulic pump or reservoir required
  • Raises from bottom to top in approximately 8 seconds
  • Designed for outboard motors up to 300 HP
  • Supports up to 625-pound engine weight
  • Heavy-duty anodized aluminum construction
  • Durable black finish
  • Improves performance, handling, and shallow-water capability
  • Includes rocker switch and relay wiring harness

Specifications

  • Manufacturer Part Number: AHJ-12V-B-DP
  • NTP Part Number: 11-1912
  • Series: Atlas™ Black Series
  • Product Type: Hydraulic Outboard Motor Jack Plate
  • Adjustment Type: Hydraulic
  • Setback: 12 Inches
  • Hydraulic Rise: 5-3/4 Inches
  • Total Vertical Travel: 8-1/4 to 9-3/4 Inches
  • Maximum Horsepower: 300 HP
  • Maximum Weight Capacity: 625 Pounds
  • Rise Time: Approximately 8 Seconds
  • Material: Aluminum
  • Finish: Anodized
  • Color: Black
  • Rocker Switch Included: Yes
  • Relay Harness Included: Yes

What's Included

  • Atlas™ Hydraulic Jack Plate
  • Rocker Switch
  • Relay Wiring Harness

Compatibility

  • Compatible with outboard-powered boats using engines up to 300 horsepower and weighing up to 625 pounds.

Vehicle Notes

  • Universal marine application
  • Fits many bass boats, bay boats, flats boats, and other outboard-powered vessels
  • Supports engines up to 300 HP
  • Hydraulic system is fully integrated into the jack plate
  • No external hydraulic pump or fluid reservoir required
  • Outboard mounting hardware may be sold separately depending on application
  • Important: Verify your boat's transom dimensions, outboard bolt pattern, engine weight, horsepower rating, and manufacturer part number AHJ-12V-B-DP before ordering.

Warranty

  • Limited Lifetime Frame Warranty
  • Limited 3-Year Structural Warranty
