T-H Marine AHJ-10V-B-DP Black Atlas 10" Hydraulic Outboard Jack Plate, 300 HP

Save $941.00
T-H MarineSKU: 11-1909

Price:
Sale price$2,862.00 Regular price$3,803.00

Shipping calculated at checkout

Stock:
Only 3 units left

Description

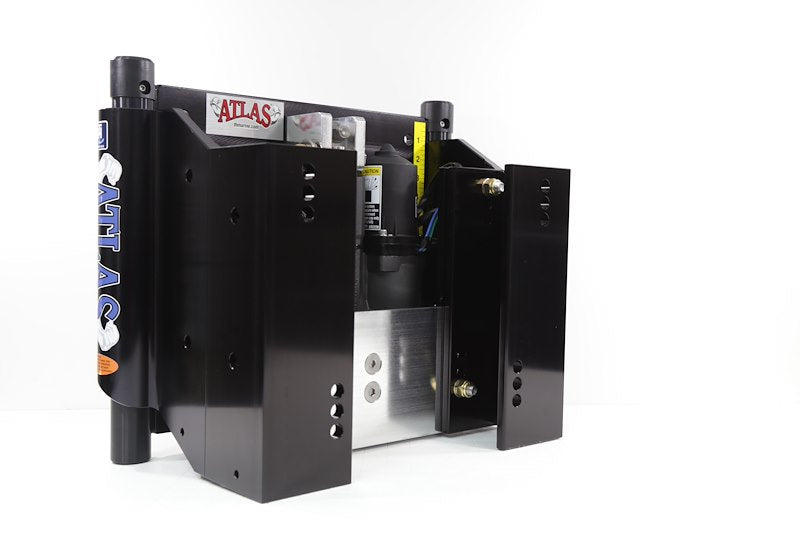

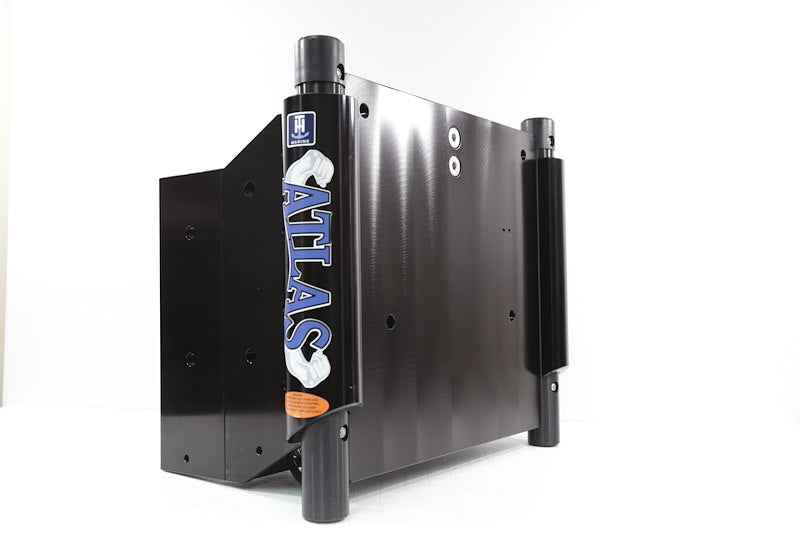

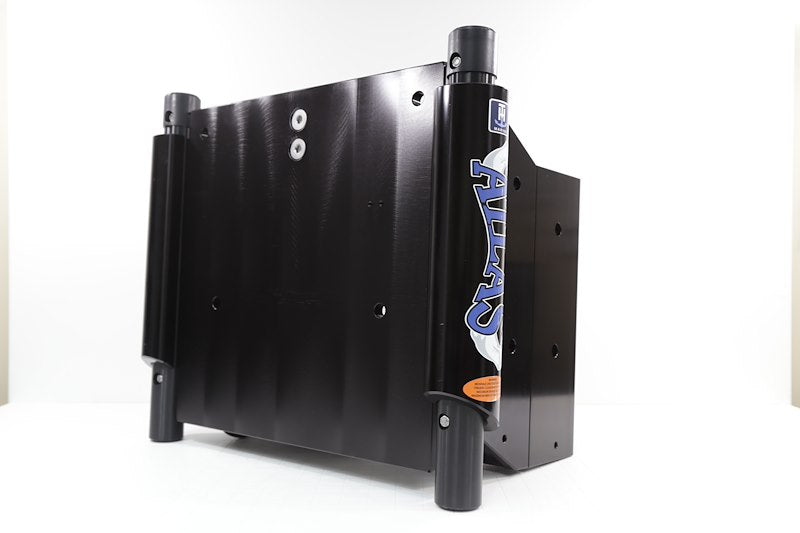

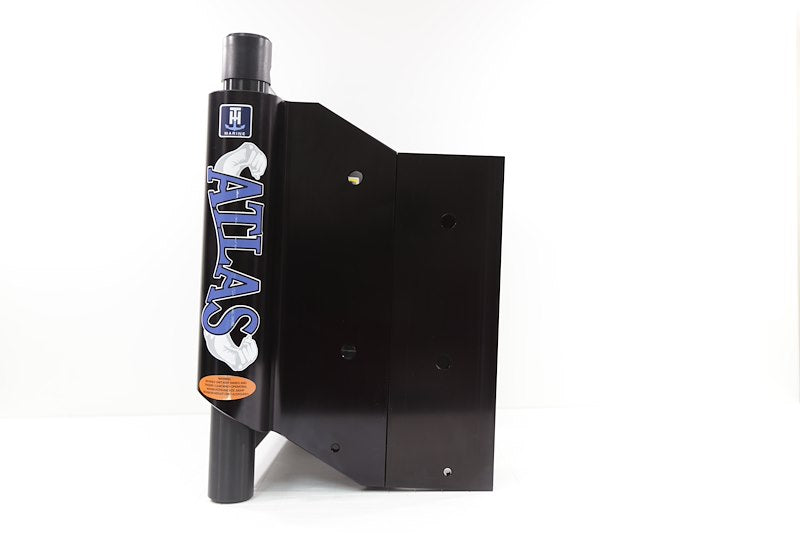

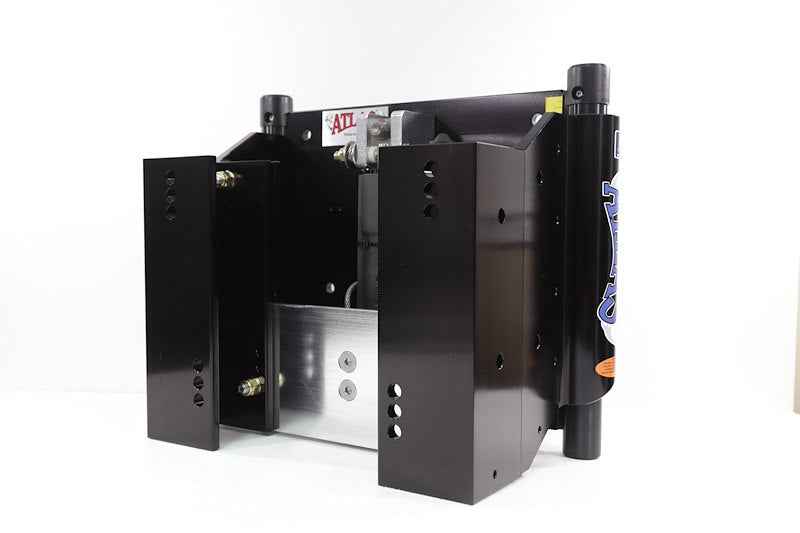

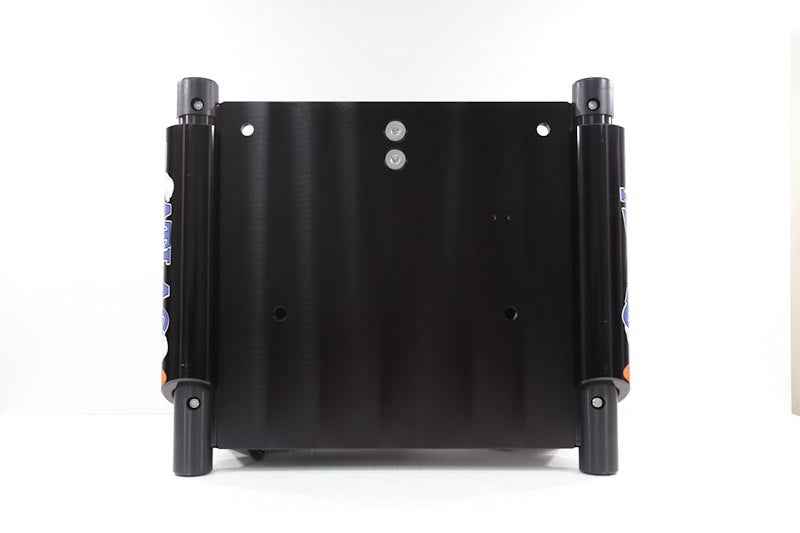

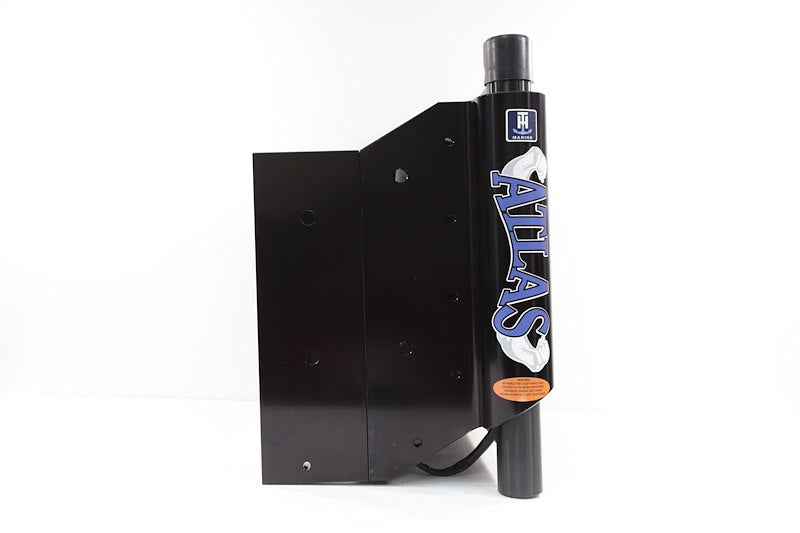

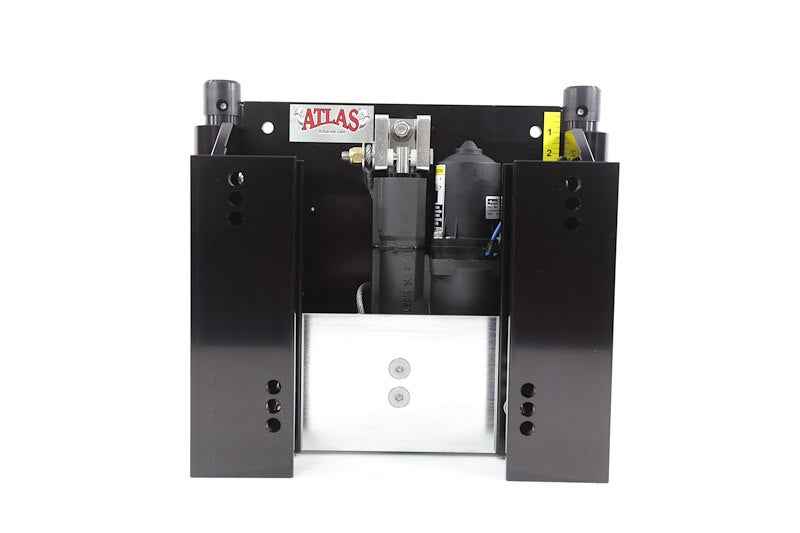

Upgrade your boat's outboard setup with the T-H Marine Black Atlas Hydraulic Jack Plate (Part #AHJ-10V-B-DP). This brand new heavy-duty hydraulic jack plate features a 10-inch setback, 5-3/4 inches of hydraulic rise, and an overall adjustment range of approximately 8-1/4 to 9-3/4 inches.

Product Details

  • Designed for outboard engines up to 300 horsepower and 625 pounds, the Atlas system allows quick, precise engine-height adjustment to help optimize performance in changing water conditions. Its self-contained hydraulic design keeps the pump and reservoir integrated into the jack plate itself, eliminating the need for separate hydraulic components inside the transom area.

Features

  • Genuine T-H Marine AHJ-10V-B-DP Black Atlas hydraulic jack plate
  • Brand New
  • Heavy-duty hydraulic outboard motor jack plate
  • 10-inch setback
  • 5-3/4-inch hydraulic rise
  • Approximately 8-1/4 to 9-3/4 inches total rise
  • Rated for outboards up to 300 HP
  • Supports up to 625 lb
  • Fast approximately 8-second bottom-to-top rise time
  • Self-contained hydraulic system
  • No separate pump or reservoir required inside the transom
  • One-piece design
  • Innovative rod-and-slot lifting system
  • Built to handle heavy, high-output outboard engines
  • Durable aluminum construction
  • Black anodized finish
  • Includes rocker switch
  • Includes relay harness

Specifications

  • Manufacturer Part Number: AHJ-10V-B-DP
  • Series: Black Atlas
  • Product Type: Hydraulic Outboard Motor Jack Plate
  • Adjustment Type: Hydraulic
  • Setback: 10 Inch
  • Hydraulic Rise: 5-3/4 Inch
  • Total Rise: 8-1/4 Inch to 9-3/4 Inch
  • Maximum Horsepower: 300 HP
  • Weight Capacity: 625 lb
  • Rise Time: Approximately 8 Seconds
  • Material: Aluminum
  • Finish: Anodized
  • Color: Black
  • Rocker Switch Included: Yes
  • Relay Harness Included: Yes

What's Included

  • (1) T-H Marine Black Atlas Hydraulic Jack Plate
  • Rocker switch
  • Relay harness
  • Owner's manual
  • Mounting hardware is not included.

Applications

  • Designed for compatible boats equipped with outboard motors requiring:
  • Up to 300 horsepower
  • Up to 625 lb motor weight
  • 10-inch setback
  • Hydraulic engine-height adjustment
  • The jack plate allows the outboard motor to be raised or lowered to better suit changing operating conditions, helping optimize propeller depth, shallow-water clearance, acceleration, and overall boat setup.
  • Hydraulic System

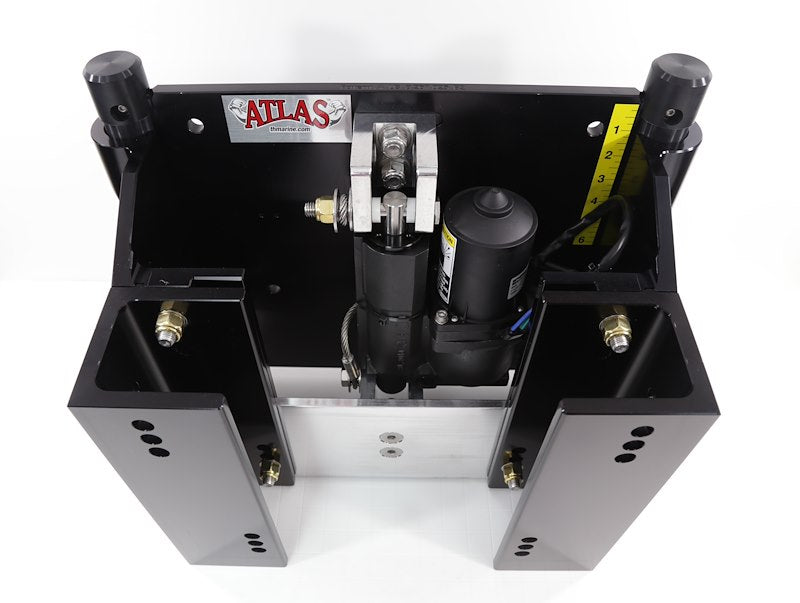

  • The Black Atlas uses a fully integrated hydraulic system, with the hydraulic components built into the jack plate assembly itself.
  • This design:
  • Eliminates the need for a remote hydraulic pump inside the transom
  • Reduces installation complexity
  • Provides fast engine-height adjustment
  • Raises the jack plate from bottom to top in approximately 8 seconds
  • Allows height adjustments from the included rocker switch

Installation Notes

  • Verify your outboard motor's horsepower and weight before installation
  • Confirm a 10-inch setback is appropriate for your boat and transom
  • Mounting hardware is not included
  • Ensure the transom is structurally suitable for the engine and jack plate combination
  • Follow T-H Marine installation and torque specifications
  • Verify adequate steering, electrical, fuel-line, and control-cable clearance throughout the full adjustment range
  • Professional marine installation is recommended for high-horsepower outboard applications

Warranty

  • Limited Lifetime Frame Warranty
  • 3-Year Structural Warranty
