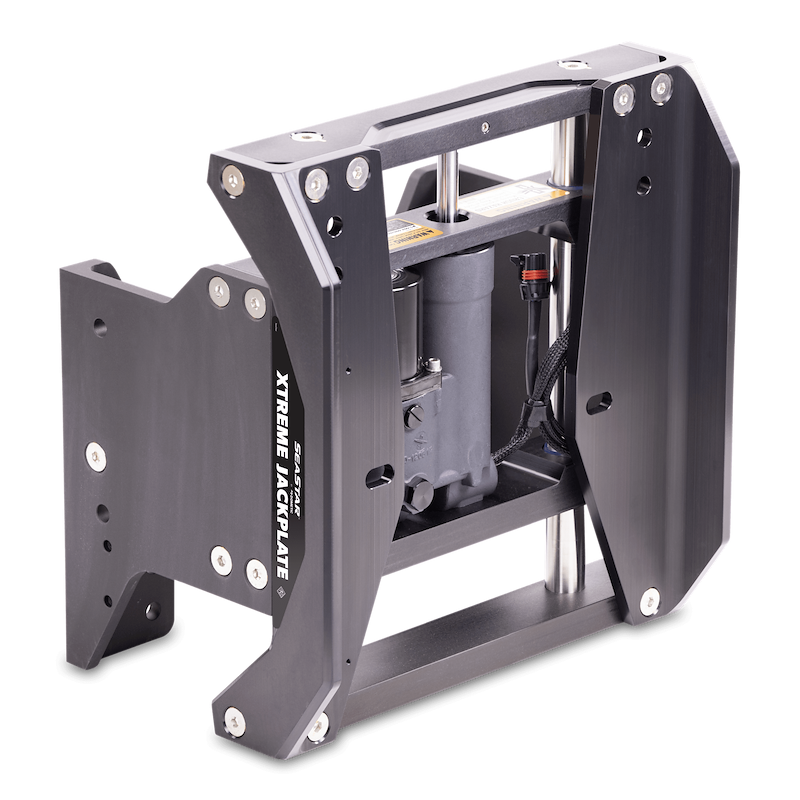

SeaStar JP5100X Xtreme Hydraulic Jack Plate 10-Inch Setback for Outboard Motors

Save $1,477.00
SeaStarSKU: 04-8534

Price:
Sale price$4,492.00 Regular price$5,969.00

Shipping calculated at checkout

Stock:
Only 4 units left

Description

Maximize your boat's performance with the SeaStar JP5100X Xtreme Hydraulic Jack Plate. This brand new premium hydraulic jack plate is engineered for high-performance fishing boats, bass boats, bay boats, and performance vessels running outboard engines up to 400 horsepower.

Product Details

  • Featuring a 10-inch setback and 5-5/8 inches of hydraulic vertical travel, the Xtreme Jack Plate allows precise engine height adjustment while underway to improve acceleration, increase top speed, enhance fuel efficiency, and provide better shallow-water performance. Its powerful hydraulic system raises or lowers the engine in approximately 8.5 seconds, even under full thrust.
  • Constructed from high-strength marine-grade aluminum with a durable black finish, the JP5100X provides exceptional rigidity while remaining lightweight. It also offers excellent compatibility with popular shallow-water anchor systems including Power-Pole® and Minn Kota Talon®.

Features

  • Genuine SeaStar JP5100X OEM product
  • Brand new
  • Xtreme hydraulic outboard jack plate
  • Supports outboard engines up to 400 horsepower
  • 10-inch setback
  • 5-5/8-inch hydraulic lift
  • Raises or lowers engine while underway
  • Fast hydraulic operation in approximately 8.5 seconds
  • High-strength aluminum construction
  • Complete engine support under full thrust
  • Smooth operation with maintenance-friendly composite bushings
  • Easy side access to engine mounting bolts
  • Compatible with Power-Pole® and Minn Kota Talon® shallow-water anchors
  • Includes rocker switch and relay harness

Specifications

  • Manufacturer Part Number: JP5100X
  • Series: Xtreme
  • Adjustment Type: Hydraulic
  • Setback: 10 Inches
  • Vertical Travel: 5-5/8 Inches
  • Maximum Horsepower: 400 HP
  • Rise Time: Approximately 8.5 Seconds
  • Material: Marine-Grade Aluminum
  • Finish: Black
  • Rocker Switch Included: Yes
  • Relay Harness Included: Yes

Compatibility

  • Compatible with most single outboard-powered boats using standard BIA outboard mounting patterns, including:
  • Bass boats
  • Bay boats
  • Flats boats
  • Performance fishing boats
  • Center console boats
  • Multi-species fishing boats
  • Performance recreational boats
  • Designed for use with single outboard engines up to 400 horsepower from leading manufacturers, including:
  • Mercury Marine
  • Yamaha
  • Suzuki
  • Honda Marine
  • Evinrude (where applicable)
  • Also compatible with Power-Pole® and Minn Kota Talon® shallow-water anchor systems.
  • Important: Verify your outboard mounting pattern, transom capacity, engine weight, horsepower rating, hydraulic clearance, and manufacturer part number before ordering to ensure proper compatibility.

Warranty

  • Limited 2-Year Manufacturer Warranty
