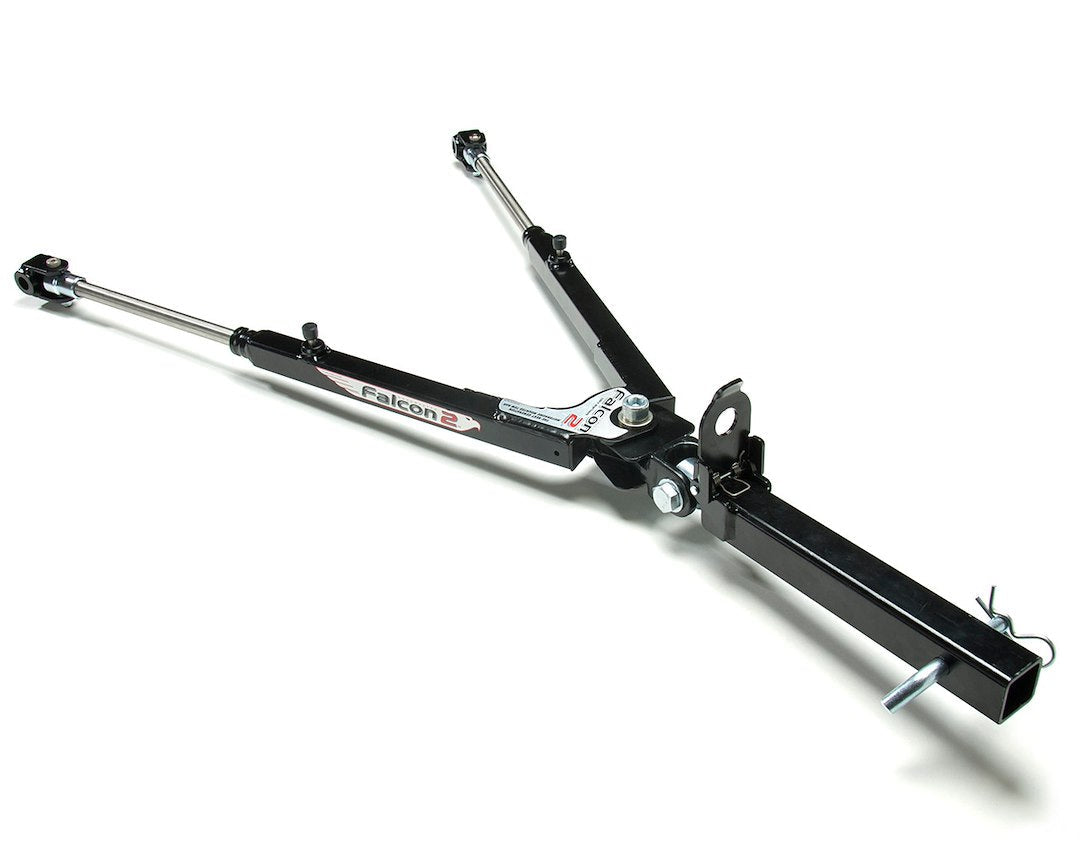

Roadmaster 520 Falcon 2 Tow Bar - 6,000 lb, 2-Inch Motorhome Receiver

A tow bar rated for 6000 lb with a 2 in receiver mount — Roadmaster part 520.

Important: Roadmaster 2026 safety recall - check tow-bar serial number

Roadmaster's October 20, 2026 safety notice (NHTSA recall 26E069) identifies certain 520 units with serial numbers 77304–80253 for a T-bolt retaining roll-pin inspection. Not every unit in this model is affected: inspect its serial number and the T-bolt assembly per Roadmaster's official recall instructions. A missing, loose or displaced roll pin may cause tow-bar separation; do not tow if the roll pin is not fully seated or has moved more than 1/16 inch above its hole. Contact Roadmaster at 800-669-9690 for inspection guidance and any required free remedy hardware. The serial number and recall status of a particular inventory unit must be verified before shipment or use.

Falcon 2 fitment and equipment

Roadmaster 520 is the Falcon 2 motorhome-mounted, self-aligning flat-towing bar with a 6,000 lb maximum tow rating and a 2-inch receiver connection. This version is for compatible Roadmaster baseplates; Roadmaster 525 is the version configured for Blue Ox baseplates. A separately purchased 910021-00 crossbar kit is required when connecting to Roadmaster crossbar-style baseplates. Safety cables and a vehicle-to-motorhome power cord are not included with part 520. Confirm the approved baseplate, tow-vehicle hitch rating and towed-vehicle flat-towing instructions.

• The steel tow bar connects to a compatible vehicle baseplate; safety cables are not included.

Key Features

• With Exclusive, Self-Supporting Quick-Disconnect System, One Person Can Easily Connect or Disconnect the Falcon 2 in Seconds.
• The hookup radius allows positioning flexibility when connecting the towed vehicle.
• Self-lubricating nylon bushings reduce friction between the inner and outer arms. A steel crossbar reinforces the assembly.
• The Autowlok mechanism allows both tow-bar arms to extend and retract for connection.
• Stainless steel inner arms provide sliding movement and access for maintenance.
• Stainless Steel Looks Better, Lasts Longer and Prevents Corrosion That Binds.
• Limited 1 Year Warranty.
• Falcon 2 ™: Time tested, proven, reliable!.
