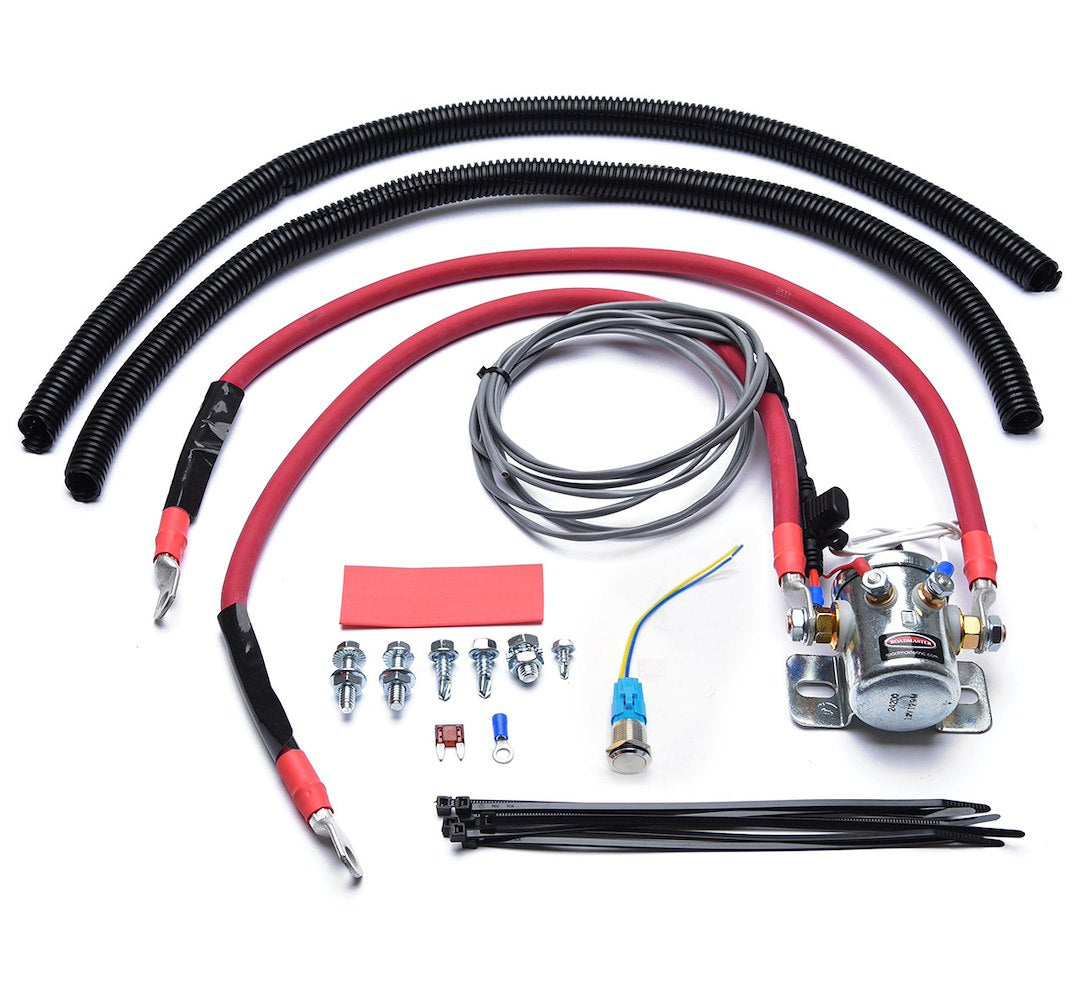

Roadmaster 766 is a remote-operated 12-volt battery disconnect kit that lets a driver disconnect or reconnect the towed vehicle's starting battery using a remotely mounted button. Roadmaster rates the kit at 200 amps continuous duty and 600 amps surge. It is intended primarily for suitable gasoline-powered vehicles requiring battery disconnection during flat towing; the higher-current manual disconnect 767 is intended for diesel/high-cranking-current applications. A positive power terminal allows compatible brakeaway systems and other essential accessories to remain powered when the vehicle battery is otherwise isolated. Verify the vehicle's flat-tow instructions and electrical requirements before installation.
- Remote switching; 12-volt battery system, 200A continuous-duty and 600A surge rating, with positive accessory power terminal.
Key Features
- Flip a Switch to Disconnect or Reconnect the Towed Vehicle’s Battery.
- Pre-Assembled for Easy Installation.
- The Most Stringent Testing in the Industry.
- Limited 1 Year Warranty.
Specifications
| Activation Type |
Remote switch |
| Continuous Current Rating |
200 Amp |
| Surge Current Rating |
600 Amp |
Part Identification
| Brand |
Roadmaster |
| Manufacturer Part Number |
766 |
Installation Notes
| Installation Type |
Bolt-On |
Installation & Product Notes
- Positive Power Post Provides an Electrical Source for Breakaway Systems, Stop Light Switches or Other Accessories Which Must Be Energized While the Battery Is Disconnected.
