Description
Optronics TLL12RK is a retail kit with two 6-inch oval STL12RB LED combination stop/turn/tail lights, two A70GB mounting grommets and two A45PB PL-3 pigtail connectors. These lamps use recessed grommet mounting rather than surface flange mounting.
Key Features
- Polycarbonate Lens and Housing.
- Sonically Sealed, Waterproof.
- Recessed grommet installation with the included A70GB grommets and PL-3 connectors.
- Standard PL-3 pigtail connectors included in this kit.
- Limited Lifetime LED Warranty.
Specifications
| Function | Stop/ Turn/ Tail Light |
|---|---|
| Kit Contents | 2 STL12RB lamps, 2 A70GB grommets and 2 A45PB PL-3 pigtails |
| Bulb Type | LED |
| Submersible | Yes |
| Mount Type | Grommet Mount |
| Shape | Oval (6-inch class) |
| Stop/Turn Current at 12.8 V | 0.161 A (STL12RB lamp) |
| Tail Current at 12.8 V | 0.007 A (STL12RB lamp) |
| Required Grommet Opening | 6.85 x 2.50 in oval cutout, 1.25-in end radius (A70GB) |

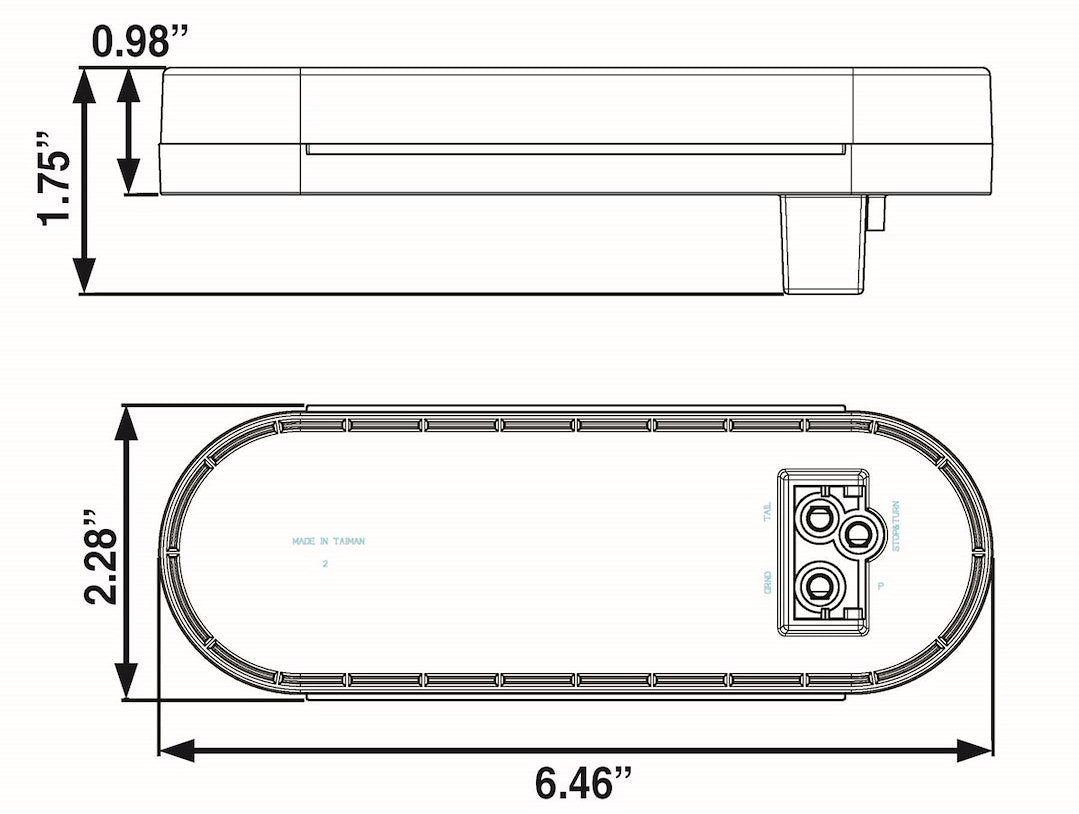

| Individual Lamp Dimensions (W x H x D) | 6.500 x 2.250 x 1.750 in |
| FMVSS Functions | S / T / I |
| Packaging | Two-light retail clamshell kit |
Part Identification
| Brand | Optronics |
|---|---|
| Manufacturer Part Number | TLL12RK |
