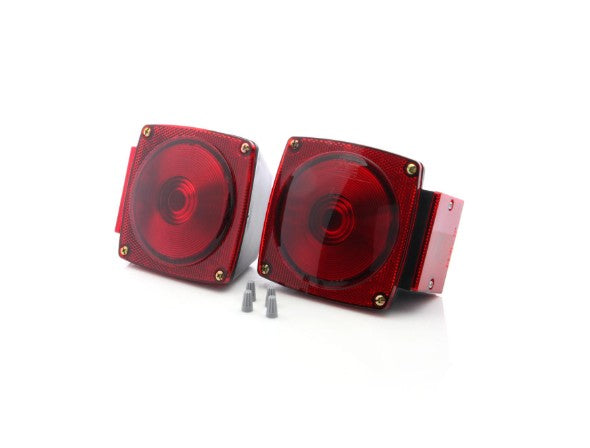

Optronics TLL008RK is a two-light retail trailer tail-light kit, not a single lamp. The set contains the passenger-side STL008RB and driver-side STL009RB ONE-LED combination stop/turn/tail lights, plus mounting hardware. The driver-side light includes license-plate illumination. Both rectangular lamps use stud mounts on 2-inch centres and hardwire to a 12.8V trailer lighting system.
Specifications
| Lens Material |
Acrylic |
| Bulb Type |
LED |
| Housing Finish |
Matte |
| Housing Material |
Plastic |
| Shape |
Rectangular |
| Lens Color |
Red |
| Type |
Two-Light Combination Stop/Turn/Tail Kit |
| Kit Contents |
1 STL008RB passenger-side lamp, 1 STL009RB driver-side lamp, mounting hardware |

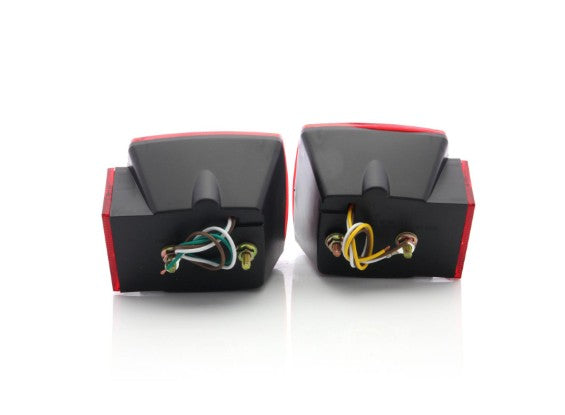

| Wiring |
Brown tail, yellow driver stop/turn, green passenger stop/turn, white ground |
| Submersible |
Yes |

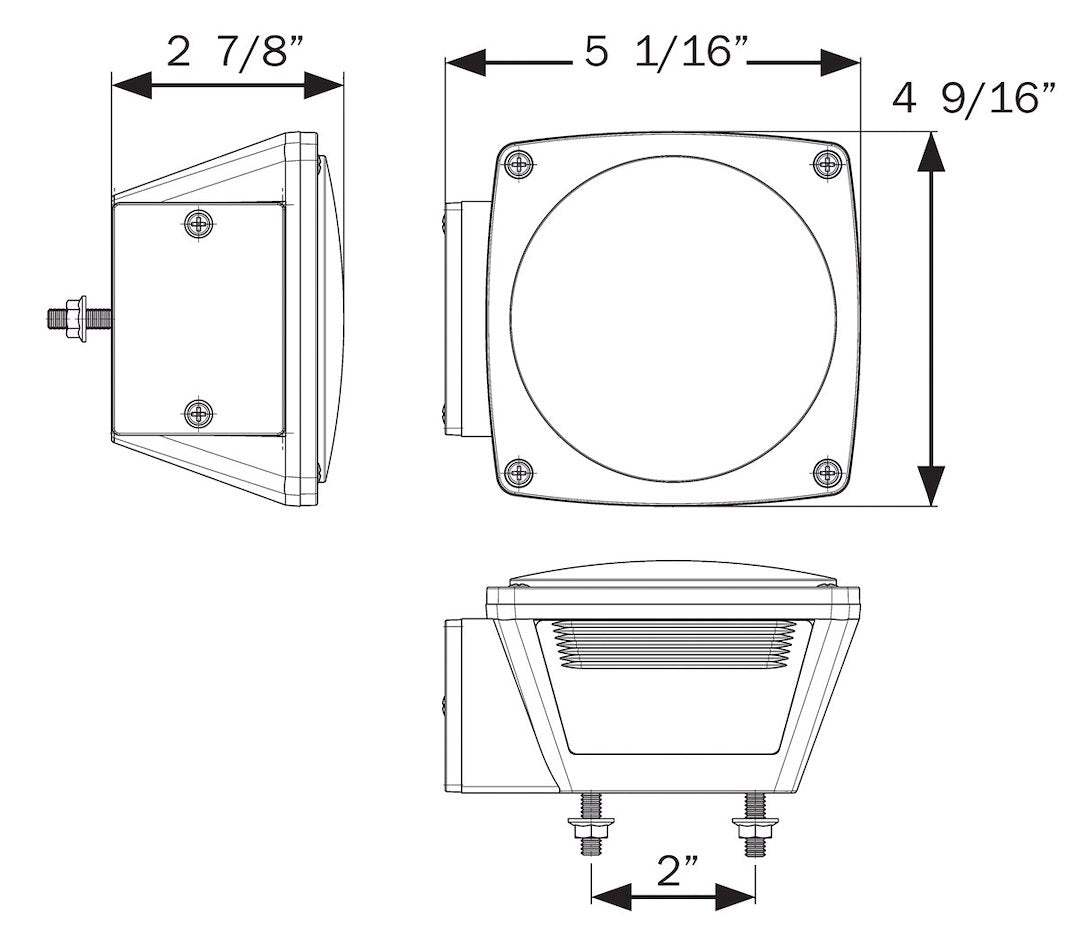

| Height (IN) |
2-7/8 in |
| Width (IN) |
4-9/16 in |
| Length (IN) |
5 in |
| Stop/Turn Current at 12.8 V |
0.25 A (STL008/009 series) |
| Marker Function Current at 12.8 V |
0.062 A (STL008/009 series) |
| Factory Wire Lead Length |
6.5 in on the retail set; separate ground ring terminal |
| FMVSS Functions |
S / T / I / A; P2 / A; L |

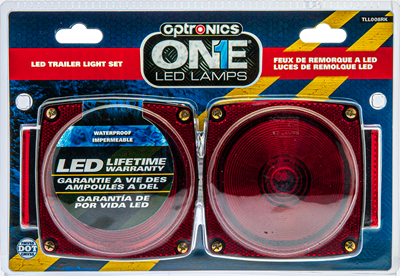

| Packaging |
Two-light retail clamshell set, including mounting hardware |
Part Identification
| Brand |
Optronics |
| Manufacturer Part Number |
TLL008RK |
Installation Notes
| Installation Type |
Stud Mount |
