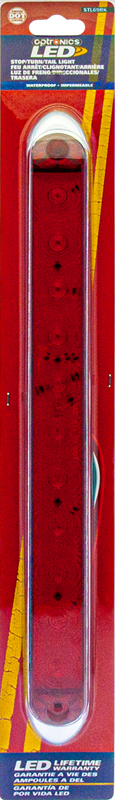

Optronics STL69RK is a 15-inch red thinline LED trailer stop/turn/tail light bar with 11 diodes and an A69CB chrome base. This retail clamshell-packaged 12V lamp surface-mounts on 14-1/8-inch centres. Hardwired 7-inch leads: red for stop/turn, black for tail and white for ground. The sealed polycarbonate unit is only 5/8 inch deep.
Key Features
- Sonically Sealed, Waterproof.
- Low Profile Design–only 5/8 in Thick.
- Surface Mount on 14-1/8 in Centers.
- Limited Lifetime LED Warranty.
Specifications
| Type |
Stop, Turn, Tail Light |
| Bulb Type |
LED |
| Shape |
Rectangular |
| Submersible |
Yes |
| Lens Color |
Red |
| Lens Material |
Polycarbonate |
| Housing Material |
Polycarbonate |

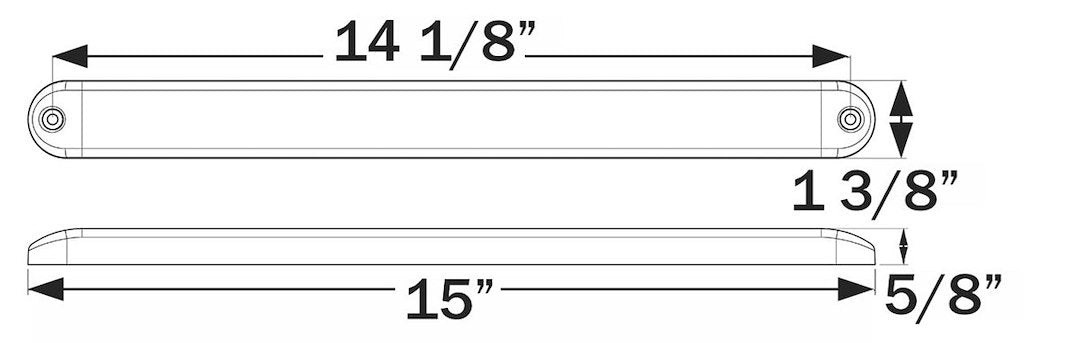

| Overall Dimensions (W x H x D) |
15.000 x 1.375 x 0.625 in |
| LED Count |
11 |
| Included Base |
A69CB chrome |
| Stop/Turn Current Draw |
0.350 A at 12.8 V DC |
| Tail Current Draw |
0.022 A at 12.8 V DC |
| FMVSS Functions |
S / T / I (manufacturer lighting classifications) |
| Optional Mounting Gasket (sold separately) |
A69GB / A69GBP |
Part Identification
| Brand |
Optronics |
| Manufacturer Part Number |
STL69RK |
Installation Notes
| Installation Type |
Hardwired |
