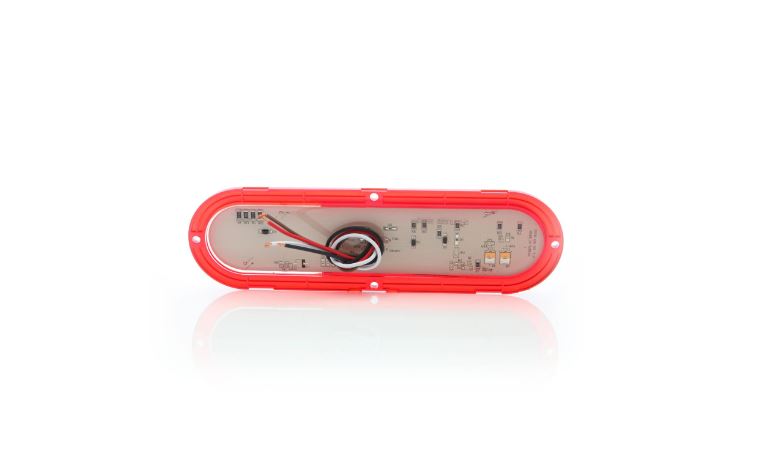

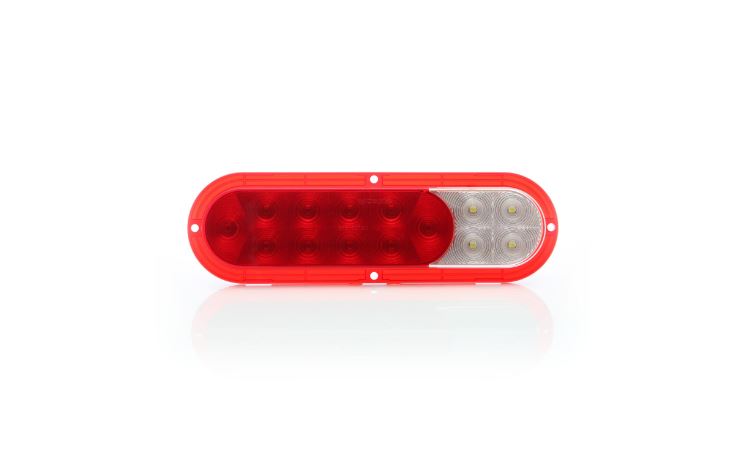

Optronics STL68RBP is a 12V, 14-LED FUSION combination stop/turn/tail and backup light with a red-and-clear lens and red/white LEDs. The sealed, waterproof oval assembly mounts on the surface using a flange with 9-11/16-inch mounting centres. Seven-inch hardwired leads: red for stop/turn, black for tail, brown for backup and white for ground.
Specifications
| Type |
Back-Up/ Stop/ Tail/ Turn Light |
| Bulb Type |
LED |
| Shape |
Oval |
| Housing Material |
Polycarbonate |
| Lens Material |
Polycarbonate |
| Lens Color |
Red and clear |
| Submersible |
Yes |
| Height (IN) |
1/2 in |

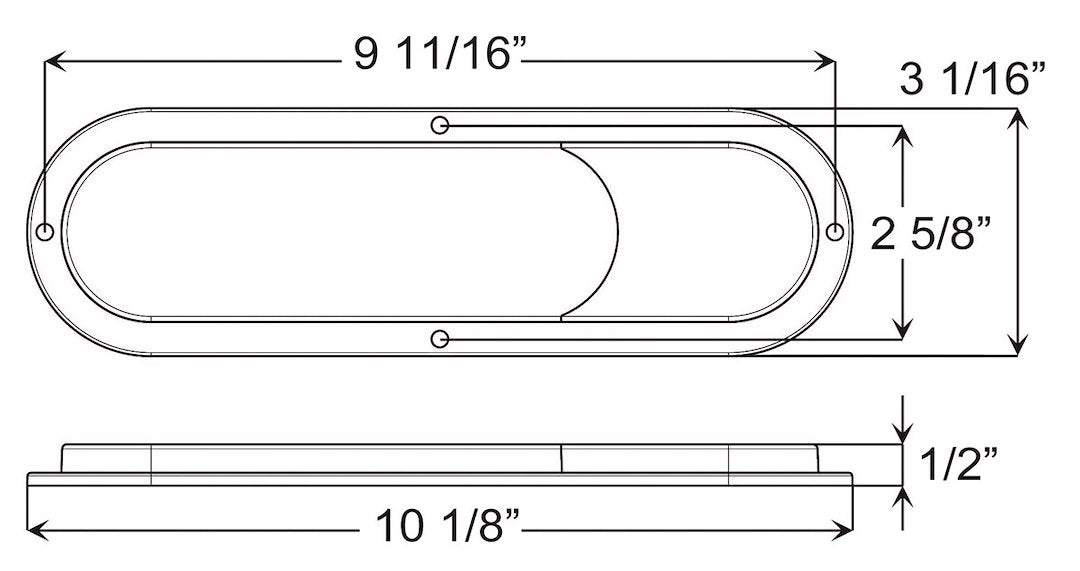

| Dimensions (W x H x D) |
10.125 x 3.063 x 0.500 in |
| LED Count |
14 (red and white diodes) |
| Stop/Turn Current Draw |
0.350 A at 12.8 V DC |
| Tail Current Draw |
0.050 A at 12.8 V DC |
| Backup Current Draw |
0.300 A at 12.8 V DC |
| FMVSS Lighting Functions |
S2 / T2 / I6 / (2)R |
| Compatible Trim Ring (sold separately) |
A68SSB or A68SSBP stainless steel snap-on trim |
| Packaging |
Polypack; STL68RB is the bulk version |
Part Identification
| Brand |
Optronics |
| Manufacturer Part Number |
STL68RBP |
Installation Notes
| Installation Type |
Surface Mount |
