Description

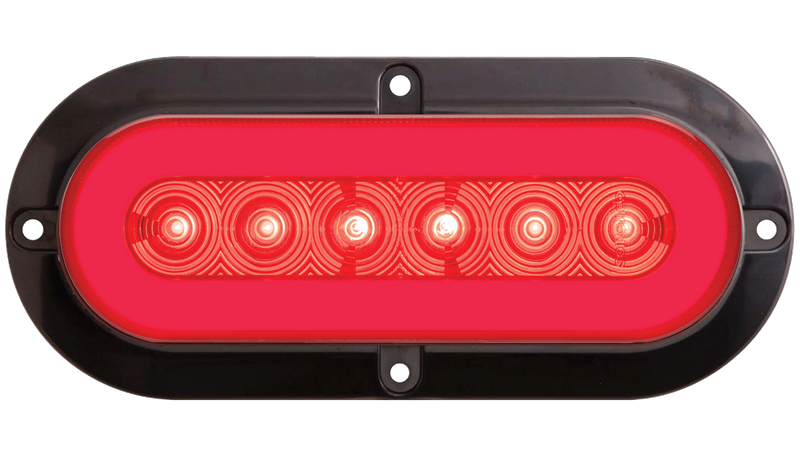

The Optronics STL111RFB is a red oval GloLight LED combination stop, turn and tail lamp for recessed-flange mounting. Its sealed polycarbonate lens and housing provide a waterproof assembly, and the lamp connects through a standard three-pin PL-3 plug.
Features
- Red LED stop, turn and tail functions
- Oval recessed-flange design
- Sonically sealed polycarbonate lens and housing
- 12V DC operation
- PL-3 three-pin connection
- Limited lifetime LED warranty from Optronics
Specifications
| Part number | STL111RFB (bulk packaging) |
|---|---|
| Lens colour | Red |
| Shape | Oval |
| Lens and housing | Polycarbonate |
| Overall dimensions | 7.500 × 3.300 × 1.938 in |
| Mounting opening | 6.85 × 2.50 in oval cutout, 1.25-in end radius |
| Connector | PL-3 three-pin |
| Stop/turn current draw | 0.590A at 12.8V DC |
| Tail current draw | 0.295A at 12.8V DC |
| Compatible pigtails | A45PB straight or A47PB right-angle, sold separately |
Check the existing lamp opening, flange style and connector before ordering. The STL111RFB has a red lens; it is not the clear-lens STL111RCFB version. The polypack version is STL111RFBP. Confirm the full warranty terms with Optronics.
