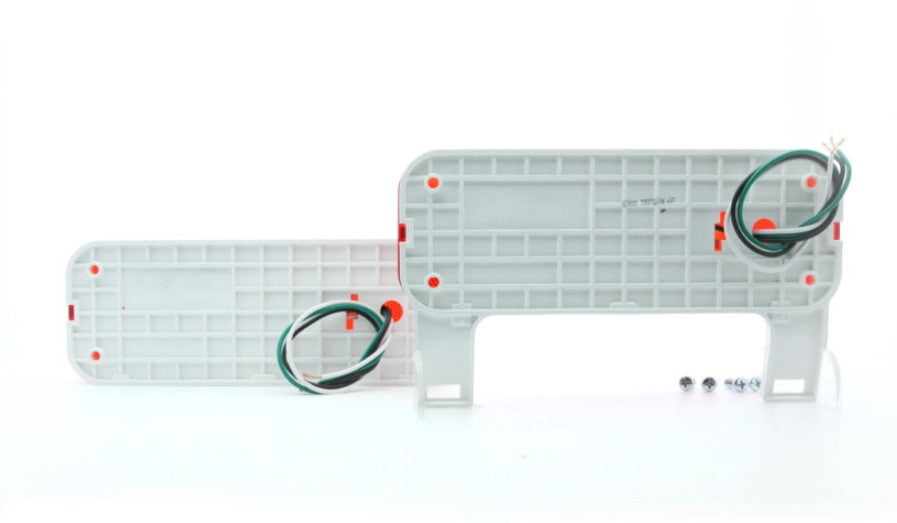

Optronics RVSTL0060RFK is a retail set of two ONE LED series combination RV stop/turn/tail lights, not a single lamp. The set includes the white-base RVSTL0060 passenger-side fixture, the white-base RVSTL0061 driver-side fixture with license-plate illumination and bracket, and mounting hardware. Both surface-mount and hardwire to 12V electrical systems (green stop/turn, black tail, white ground). The lights have red acrylic lenses and plastic housings.
Specifications
| Lens Material |
Acrylic |
| Bulb Type |
LED |
| Housing Material |
Plastic |
| Shape |
Rectangular |
| Lens Color |
Red |
| Type |
Two-Light RV Stop/Turn/Tail Kit |
| Kit Contents |
RVSTL0060 passenger-side light, RVSTL0061 driver-side light and mounting hardware |
| Passenger-Side Dimensions (W x H x D) |
8.688 x 3.188 x 2.250 in |
| Driver-Side Dimensions (W x H x D) |
8.688 x 5.000 x 2.250 in |
| Voltage |
12V DC |
| Packaging Language |
French-language retail clamshell kit |
| FMVSS Functions |
S2 / T2 / I6 / A / L (complete kit) |
| Passenger-Side Spare Lens (separate) |
AST60B or AST60BP |
| Driver-Side Spare Lens (separate) |
AST61B or AST61BP |
Electrical Specifications
| Stop/Turn Current Draw |
0.43 A at 12.8V DC (manufacturer retail-kit specification) |
| Tail Current Draw |
0.094 A at 12.8V DC (manufacturer retail-kit specification) |
Installation & Application
| Application |
RV combination tail lighting; confirm dimensions and mounting before ordering |
| Mounting |
Surface mount |
| Connections |
Green stop/turn, black tail, white ground |
Part Identification
| Brand |
Optronics |
| Manufacturer Part Number |
RVSTL0060RFK |
| Supplier SKU |
72-5906 |
Installation Notes
| Installation Type |
Hard Wired |
