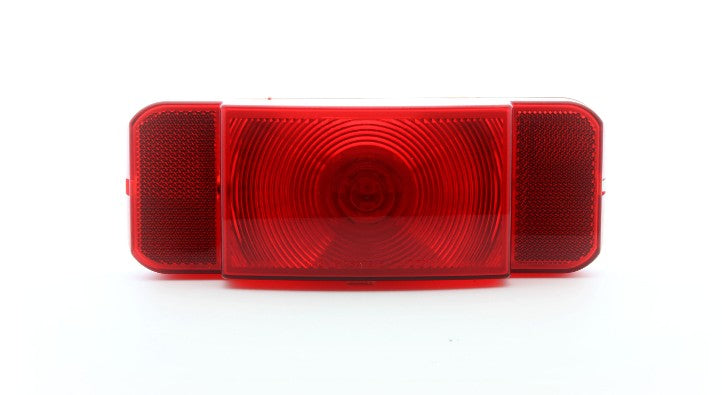

Optronics RVSTL60S is a retail-packaged, passenger-side RV combination stop/turn/tail light with nine integrated LEDs, a white base and a replaceable snap-on acrylic lens. This 12.8V surface-mounted lamp hardwires with green for stop/turn, black for tail and white for ground. The passenger-side model does not include a license-plate illuminator.
Key Features
- Acrylic Lens and Plastic Housing.
- Snap-On, Replaceable Lens.
- Passenger-side, nine-LED configuration without a license-plate illuminator.
- Limited Lifetime LED Warranty.
Specifications
| Type |
Stop/ Tail/ Turn Light |
| Bulb Type |
LED (9 diodes) |
| Side |
Passenger/right |
| Base |
White plastic |
| Shape |
Rectangular |
| Submersible |
No |
| Lens Color |
Red |
| Lens Material |
Acrylic |
| Housing Finish |
Matte |
| Housing Material |
Plastic |

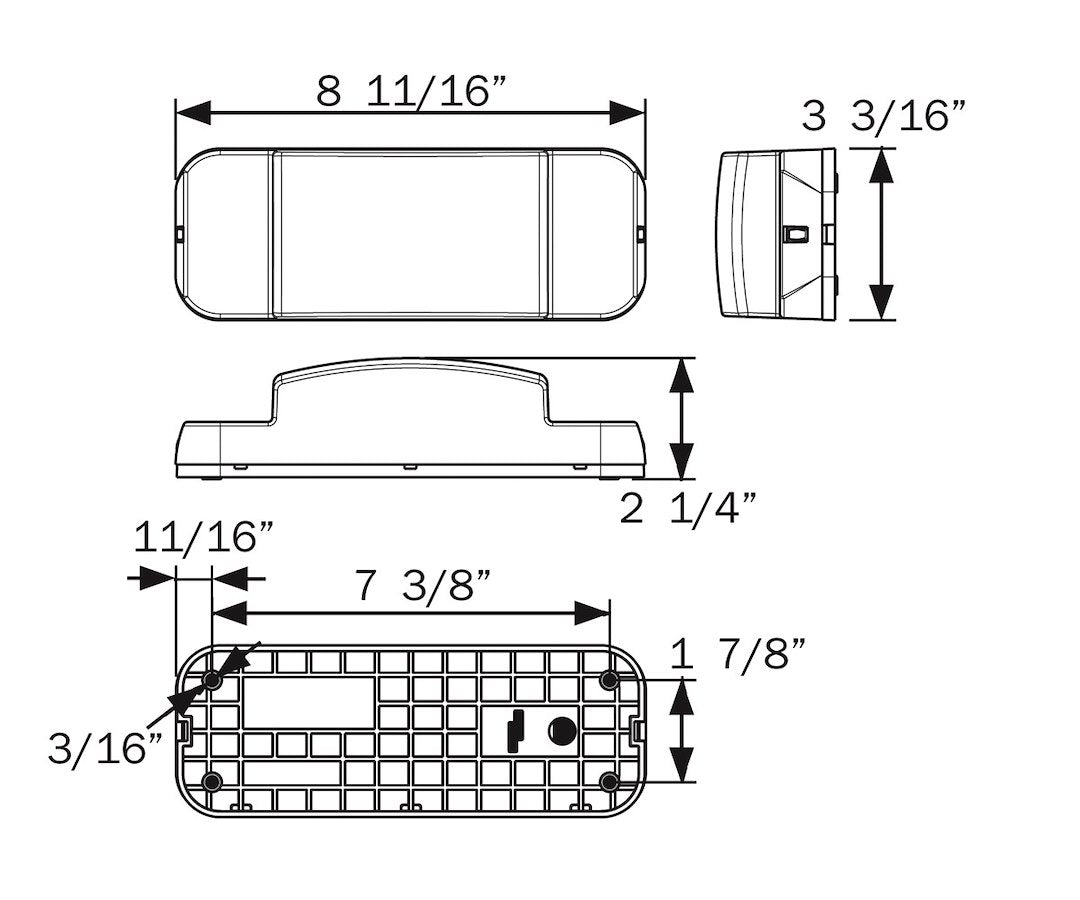

| Length (IN) |
8-5/8 in |
| Width (IN) |
3-3/16 in |
| Height (IN) |
2-1/4 in |
| Stop/Turn Current Draw |
0.243 A at 12.8 V DC |
| Tail Current Draw |
0.046 A at 12.8 V DC |
| FMVSS Functions |
S2/T2/I6/A |

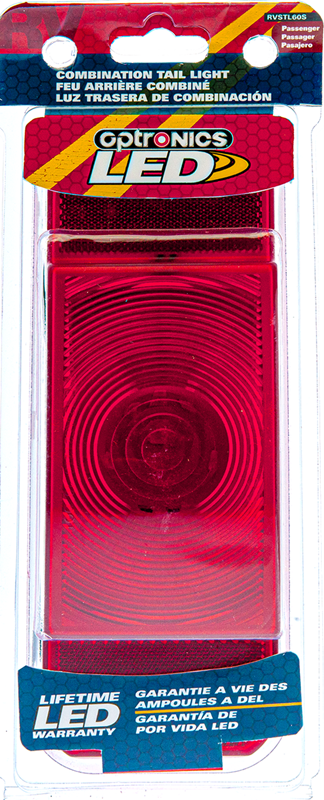

| Package Type |
Retail clamshell |
Part Identification
| Brand |
Optronics |
| Manufacturer Part Number |
RVSTL60S |
Installation Notes
| Hardwire Colours |
Green = stop/turn; black = tail; white = ground |
| Replacement Lens Part |
AST60B or AST60BP (passenger-side replacement lens; separate) |
| Installation Type |
Surface Mount |
