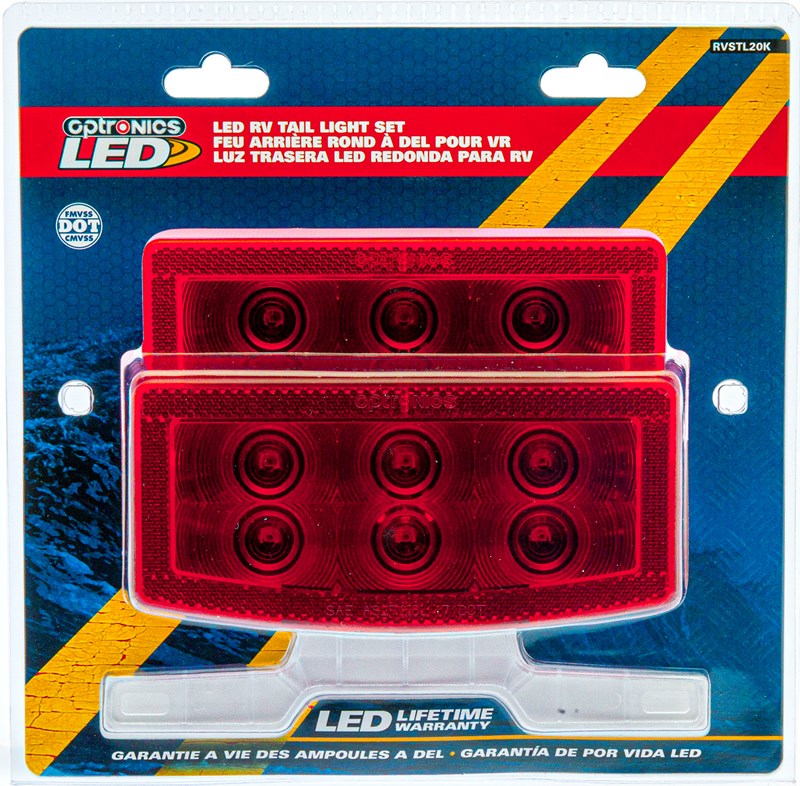

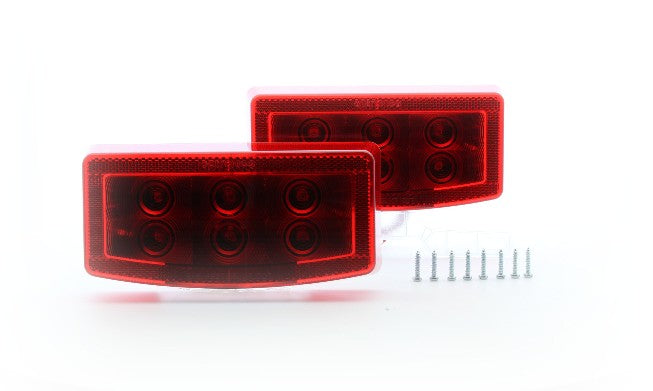

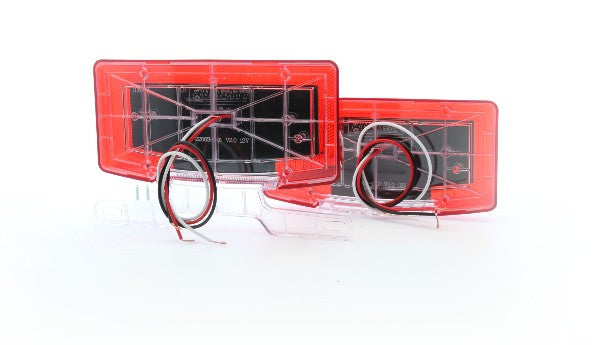

Optronics RVSTL20K is a retail kit containing a pair of low-profile, oblong LED RV combination stop/turn/tail lights: one passenger-side unit and one driver-side unit with a license-plate illuminator and bracket. Both lamps surface-mount and hardwire (red = stop/turn, black = tail, white = ground). This SKU is a two-light kit, not a single replacement lamp.
Key Features
- Pair of low-profile oblong, arched RV tail lights.
- Combination Stop or Turn or Tail Light for Surface Mount.
- Features Hard Wired, Ground Wire.
- Limited Lifetime LED Warranty.
Specifications
| Type |
Stop/ Turn/ Tail Light |
| Retail Kit Contents |
Two complete LED tail lights: passenger side and driver side with license bracket/illuminator |
| Bulb Type |
LED |
| Shape |
Oblong, arched |
| Submersible |
No |
| Lens Color |
Red |
| Lens Material |
Acrylic |
| Bulb Color |
Red |
| Housing Material |
Plastic |
| Electrical Rating at 12.8 V |
0.117 A stop/turn; 0.053 A tail |
| FMVSS Functions |
S2 / T2 / I6 / A / L (complete driver/passenger kit) |
| Passenger Lamp Size (W x H x D) |
7.50 x 3.77 x 1.29 in (RVSTL20) |
| Driver Lamp Size (W x H x D) |
7.50 x 5.02 x 1.29 in (RVSTL21) |
| Packaging |
Two-light retail clamshell kit |
Part Identification
| Brand |
Optronics |
| Manufacturer Part Number |
RVSTL20K |
Installation Notes
| Installation Type |
Hard Wired |
