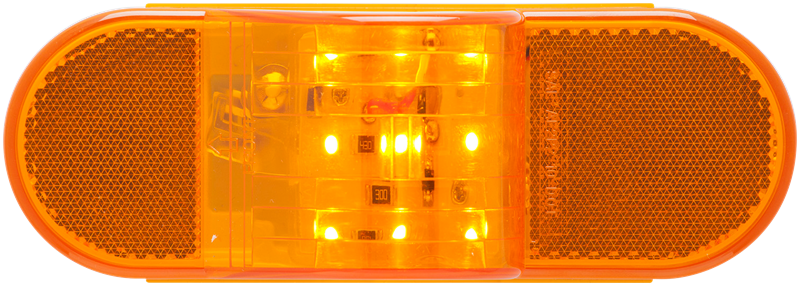

Optronics STL75AB is a yellow/amber nine-LED, six-inch oval mid-ship side turn-signal and intermediate marker light. The sealed 12V lamp is E2/P2/A-rated for vehicles under 30 feet long, uses a three-pin PL-3 connector and recessed grommet mounting. It is a bulk part number; the separate STL75ABP identifies the polypack version. Confirm grommet, plug and vehicle requirements before installation.
Specifications
| Lens Color |
Amber |
| Bulb Type |
LED |
| Type |
Mid-Ship Side Turn Signal and Marker Light (E2) |
| Shape |
Oval |
| Housing Material |
Polycarbonate |
| Lens Material |
Polycarbonate |
| Bulb Color |
Yellow |
| Submersible |
Yes |
| Height (IN) |
2-3/4 in |
| Width (IN) |
2-5/16 in |
| Length (IN) |
6-1/2 in |
| Turn Signal Current Draw |
0.141 A at 12.8 V DC |
| Marker Current Draw |
0.060 A at 12.8 V DC |
| Grommet Panel Cutout |
6.85 x 2.50 in oval hole, 1.25-in end radius (A70GB) |
| Compatible Grommet (sold separately) |
A70GB or A70GBP |
| Compatible PL-3 Pigtails (sold separately) |
A45PB straight or A47PB right-angle |
| Compatible Mounting Bracket (sold separately) |
BK70BB or BK70BBP black steel bracket |
Installation & Application
| Application |
E2-rated mid-ship turn signal/intermediate marker for vehicles under 30 feet long |

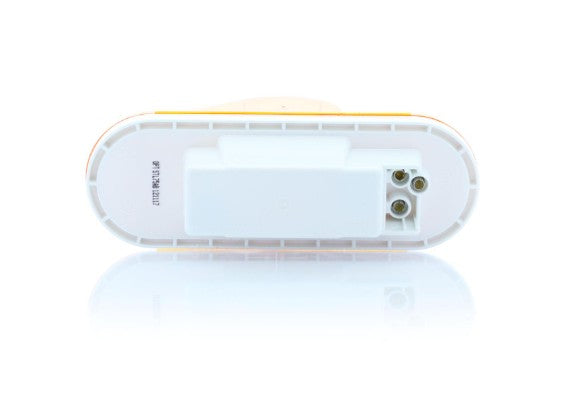

| Connection |
Three-pin PL-3 |
| Mounting |
Recessed/grommet |
Part Identification
| Brand |
Optronics |
| Manufacturer Part Number |
STL75AB |
