Description

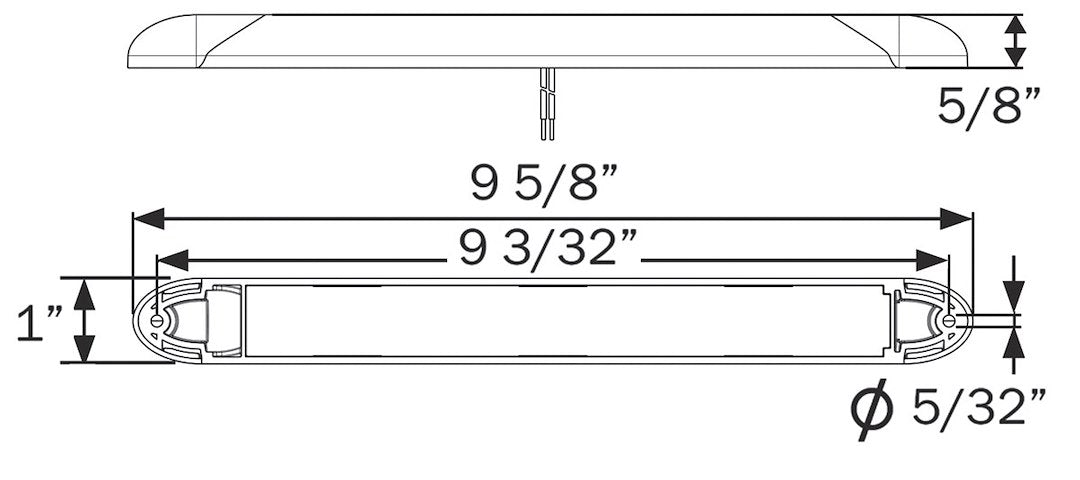

Optronics ILL70CB is a 9-LED white Opti-Brite interior strip light measuring 9.625 x 1.000 x 0.625 inches (W x H x D). It surface-mounts on 9-3/32-inch centres using 5/32-inch mounting holes, and hardwires with black power and white ground leads. The sealed polycarbonate fixture operates at 12.8V DC, drawing approximately 0.150A and producing 189 raw lumens and 171 effective lumens. It has no integrated on/off switch; ILL70CSB is a separate switched model.
Key Features
- Color Temperature 6000K Neutral White.
- Low Profile, Slimline Lights - Only 1 in Wide by 5/8 in Thick.
- Sealed and Waterproof.
- CSA Certified for Interior Use.
- Limited Lifetime Warranty.
- Features Polycarbonate housing and lens.
- Features bar style.
Specifications
| Type | 9 LED Strip |
|---|---|
| Overall Dimensions (W x H x D) | 9.625 x 1.000 x 0.625 in |
| Mounting Centres | 9-3/32 in |
| Switch | Not integrated |
| Lens Color | Clear |
| Bulb Color | White |
| Power Supply | 12.8V DC |
| Quantity | Single |
| LED Count | 9 |
| Light Output | 189 raw lumens / 171 effective lumens |
| Current Draw | 0.150 A at 12.8V DC |
| Mounting Holes | 5/32-in holes on 9-3/32-in centers |
| Lead and Ground Wire Length | 4 in |
| Certification | CSA certified for interior use |
Part Identification
| Brand | Optronics |
|---|---|
| Manufacturer Part Number | ILL70CB |
