Lippert 168956 Venture 40-Inch Slide-Out Actuator with 18:1 Motor

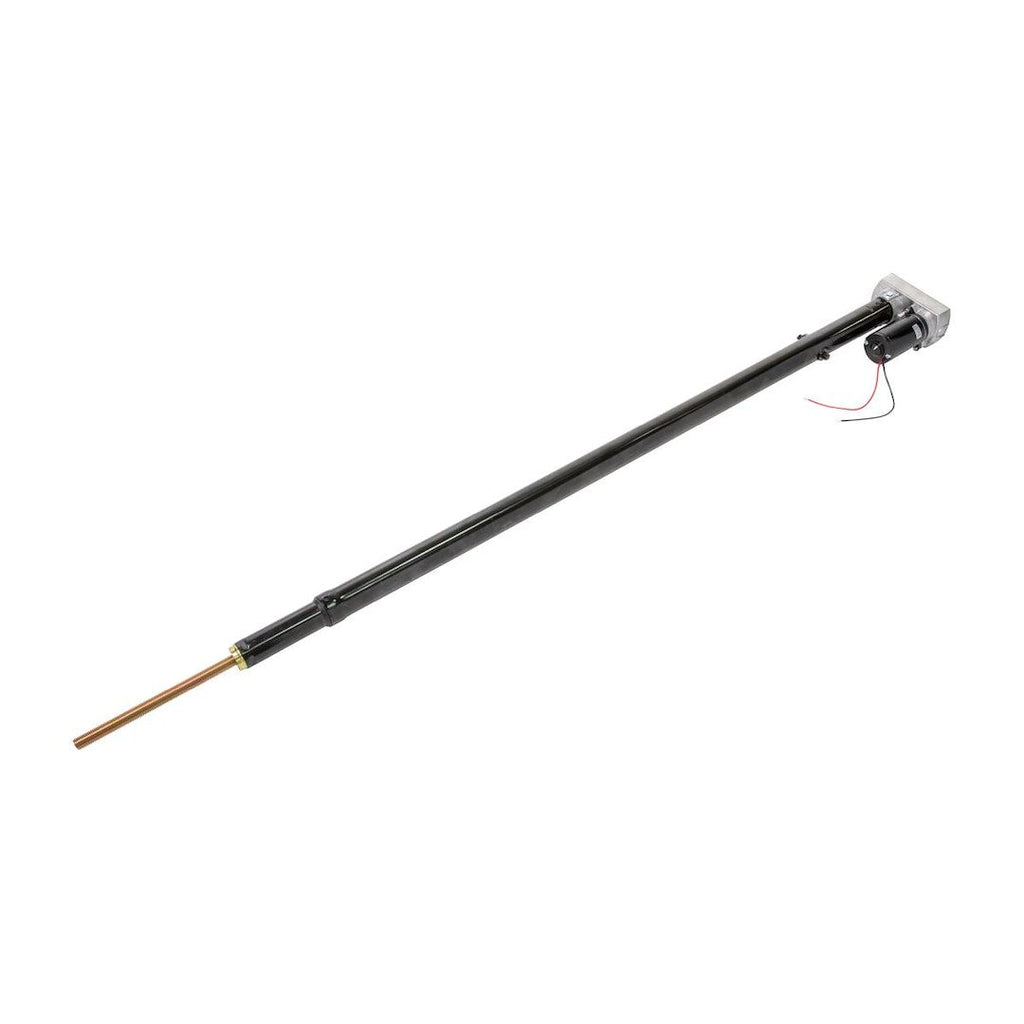

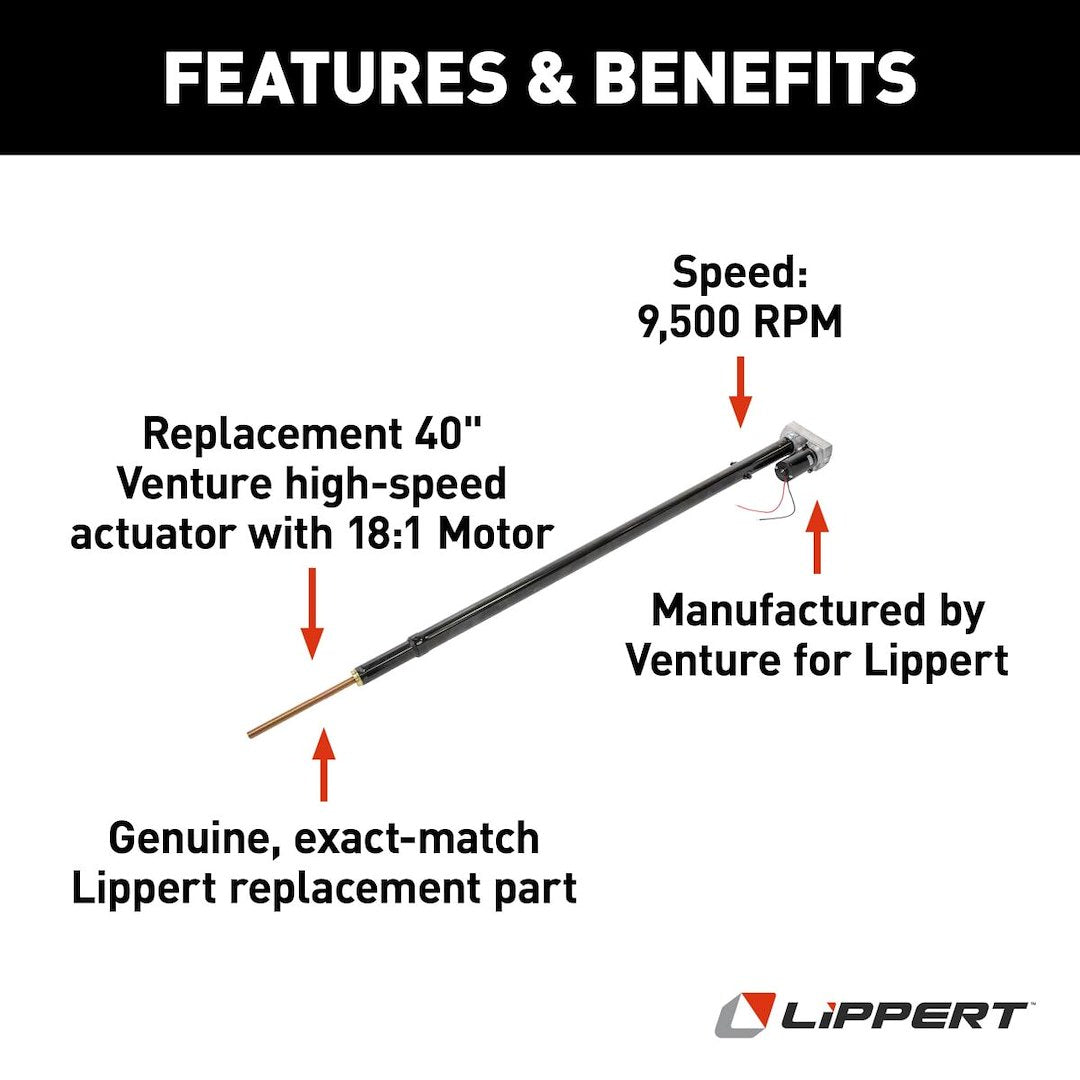

Lippert 168956 is a complete Venture 40-inch high-speed through-frame slide-out actuator and 18:1 electric motor assembly, identified by Venture reference 8532-18HT. Unlike a motor-only replacement, this package includes both the linear actuator and attached drive motor.

What is included

• One 40-inch Venture high-speed slide-out actuator
• One 12V DC, 18:1 Venture drive motor attached to the actuator
• Not included: complete slide-out room arms, gear packs, cross shaft, controller or a full slide-out system

Manufacturer specifications

• Lippert MPN: 168956; Venture reference: 8532-18HT

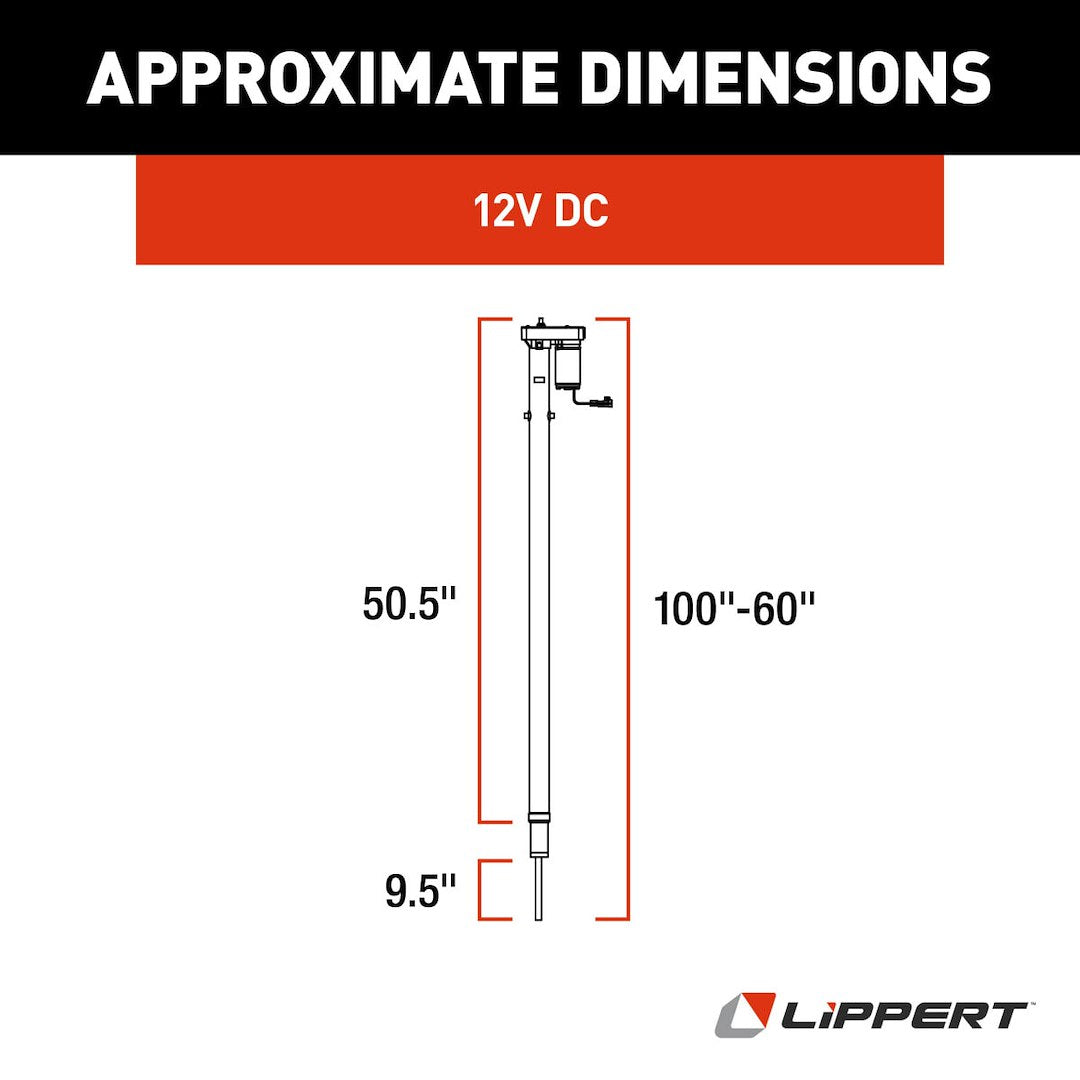

• Nominal actuator length: 40 inches, as designated by Lippert

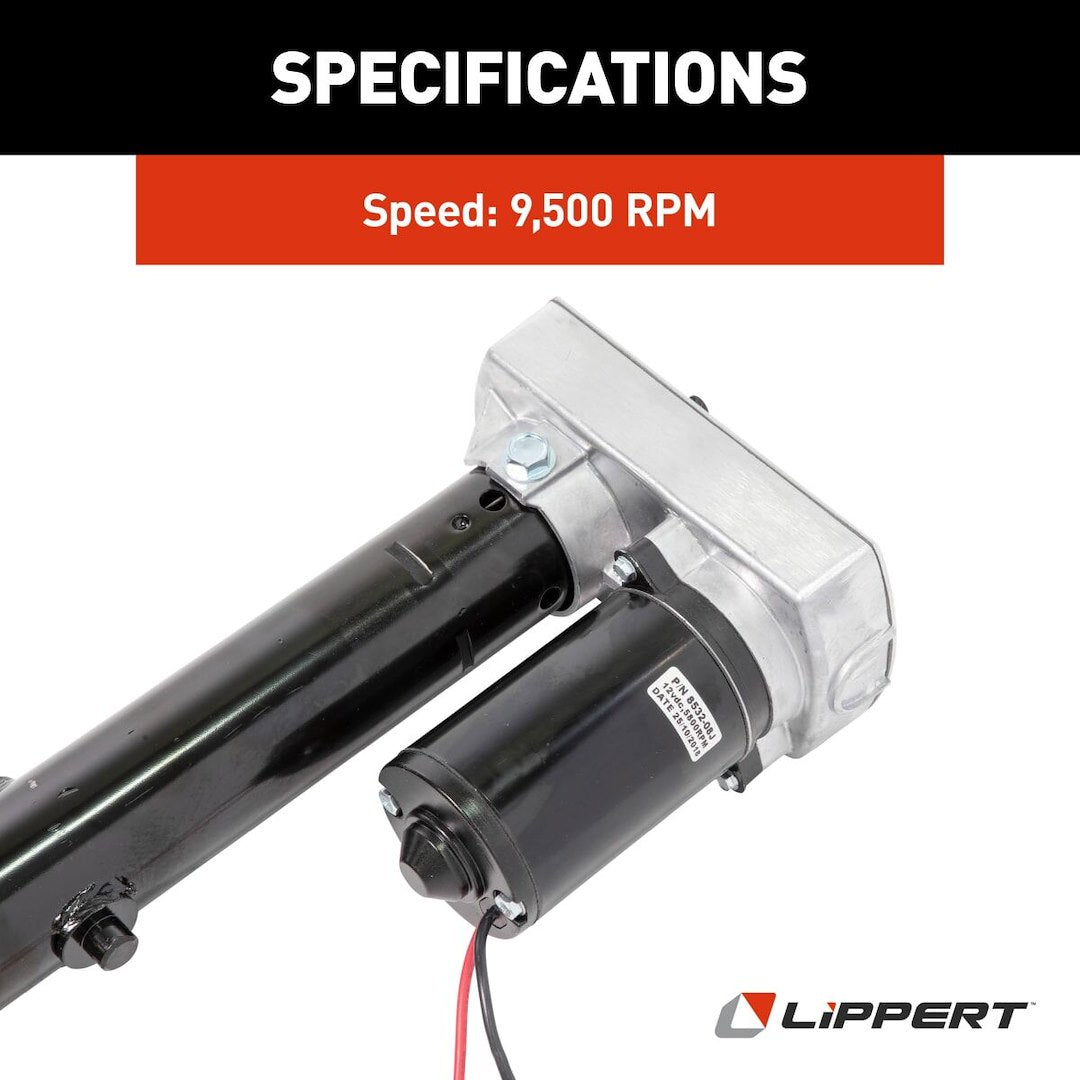

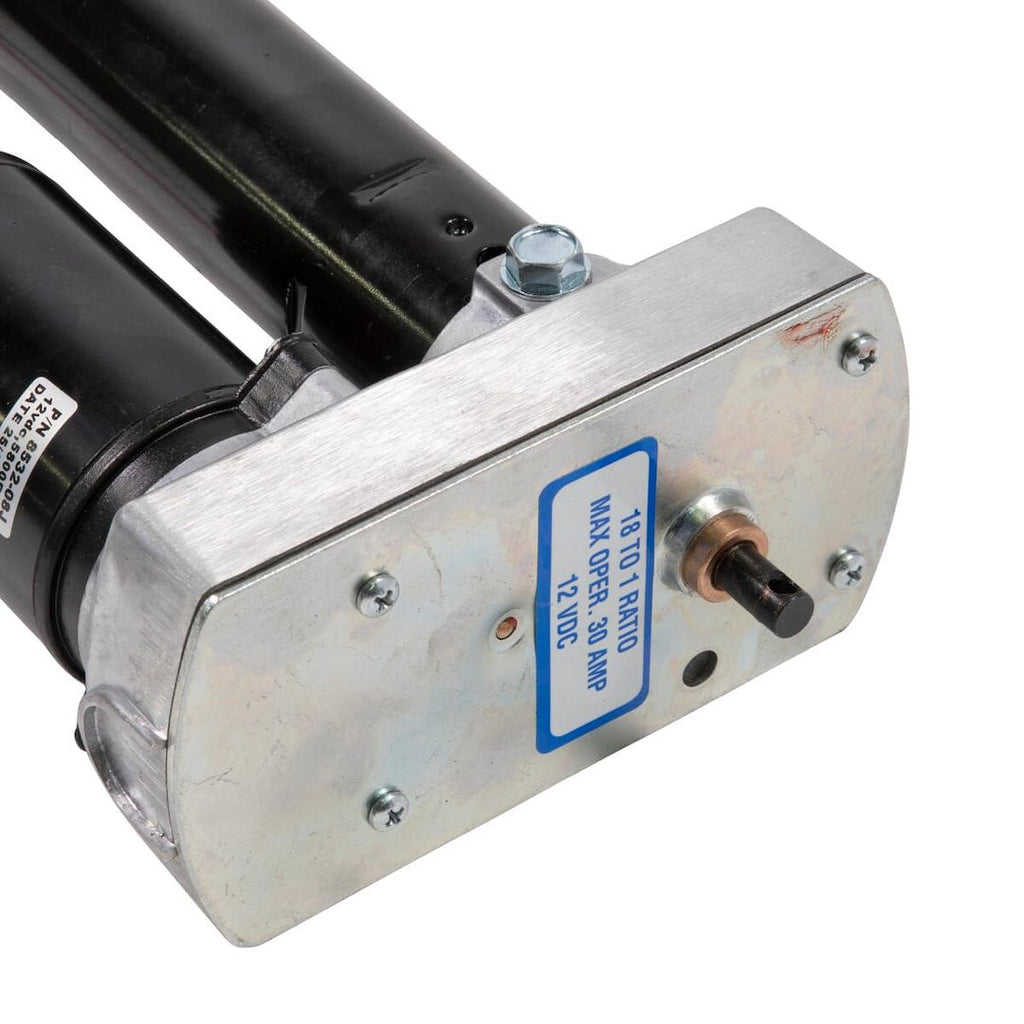

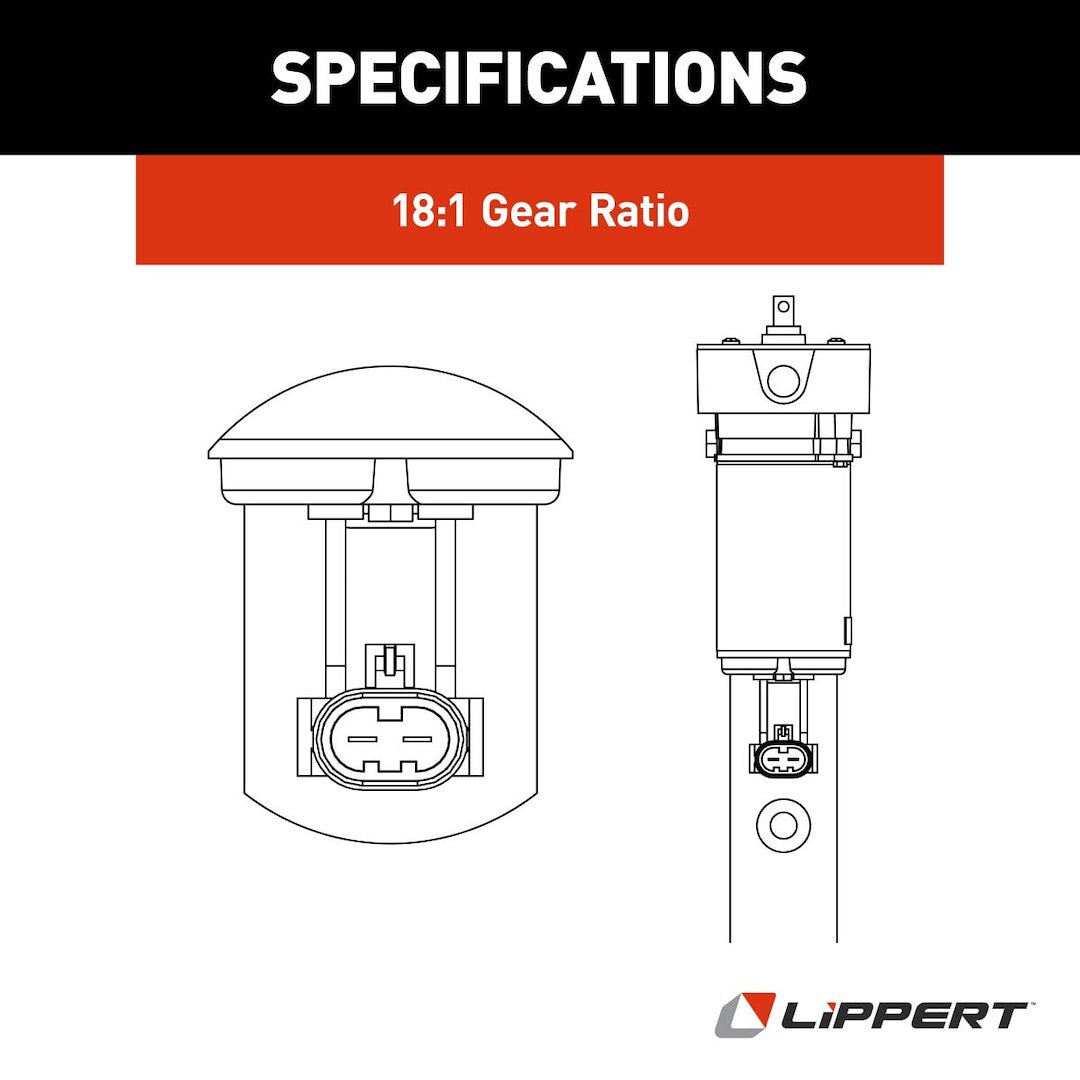

• Gear ratio: 18:1; motor speed: 9,500 RPM

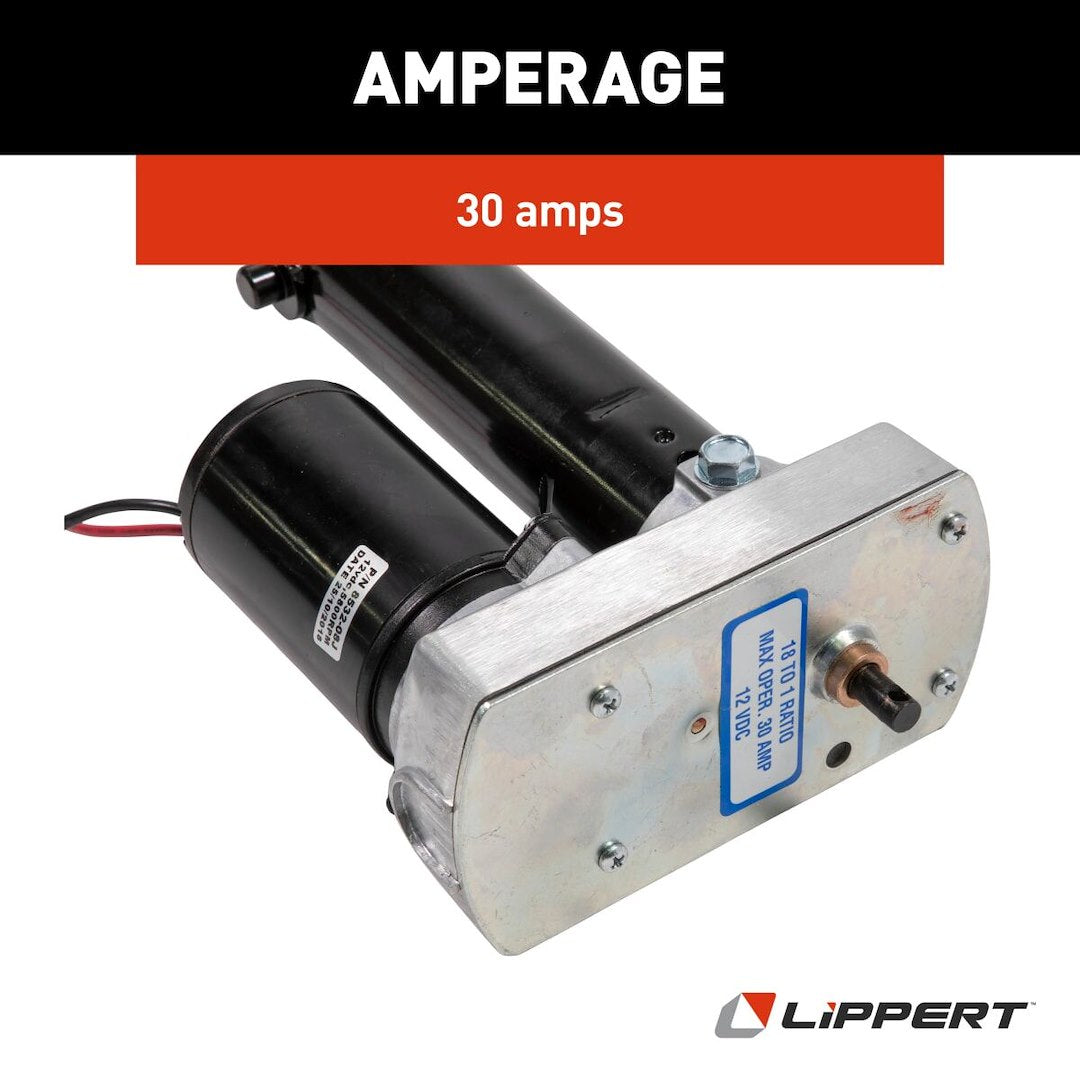

• Motor power: 12V DC; 30-amp manufacturer rating
• Lippert identifies this part as superseding numbers 131903 and 140396

Confirm before ordering

Verify the label on the original actuator, motor style, travel and mounting geometry, connector and through-frame system. Other Venture/Tuson/DoWei actuator sizes and 28:1 assemblies are not automatically interchangeable. Lippert 125802 is a separate Tuson motor-only product, not this Venture actuator-and-motor assembly. Follow the manufacturer's electric through-frame service instructions for installation and manual override.
