CURT 25005 is a pipe-mount swivel trailer jack with a manual side-wind handle and 15 inches of vertical travel. CURT specifies two distinct capacities: 3,000 lb for lifting and 5,000 lb for supporting the trailer tongue. Installation uses the supplied weld-on pivot pipe, not a simple bolt-on bracket. A 5/8-inch pull pin secures the jack for use and lets it swing up beside the trailer during travel. A fixed foot plate is built into the lower end; no caster wheel is included. Match the trailer mounting location, height and weight to CURT's installation instructions and observe the lift limit when cranking the jack.
- 3,000-lb lift capacity / 5,000-lb support capacity; 15-inch vertical travel.

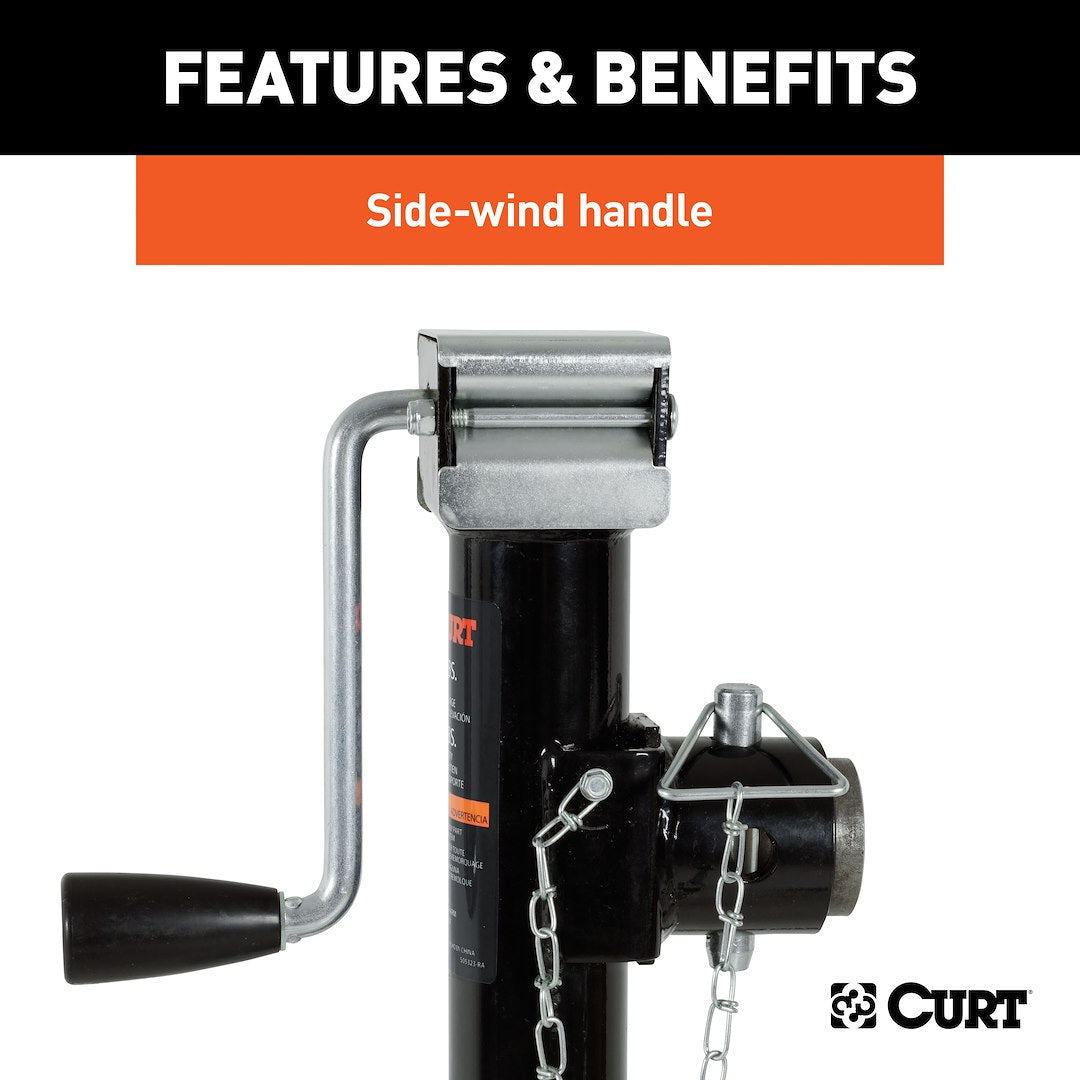

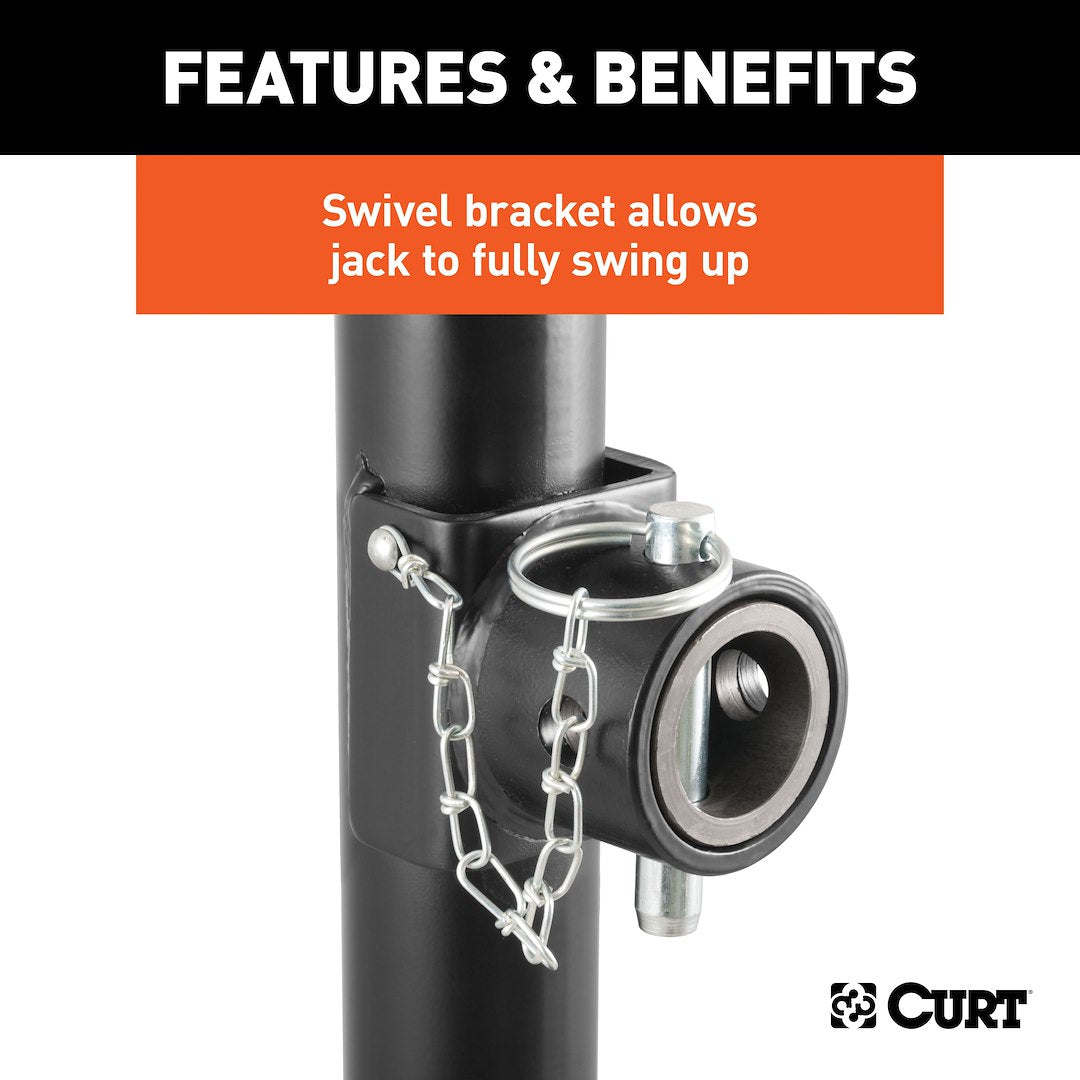

- Side-wind manual handle, weld-on pipe mounting and swivel pull-pin mechanism.
- Integrated foot plate for ground support; no caster wheel.
Key Features
- Type: Round Sidewind.
- Operation Type: Manual.
- Support Capacity: 5000 lb; Lift Capacity: 3000 lb.
- Vertical Travel: 15 in.
- Color/ Finish: Black Powder Coated.
Specifications
| Maximum Lift |
15 in |
| Support Capacity |
5000 lb |
| Lift Capacity |
3000 lb |
| Color/ Finish |
Black Powder Coated |
| Mounting Type |
Weld-On Pivot Pipe |
| Operation Type |
Manual |
| Marine |
No |
| Type |
Round Sidewind |
| Material |
Steel |
| Number Of Wheels |
Without Wheel |
| Swivel |
Yes |
Part Identification
| Brand |
CURT |
| Manufacturer Part Number |
25005 |
Installation Notes
| Estimated Install Time (Hours) |
0.5 |
