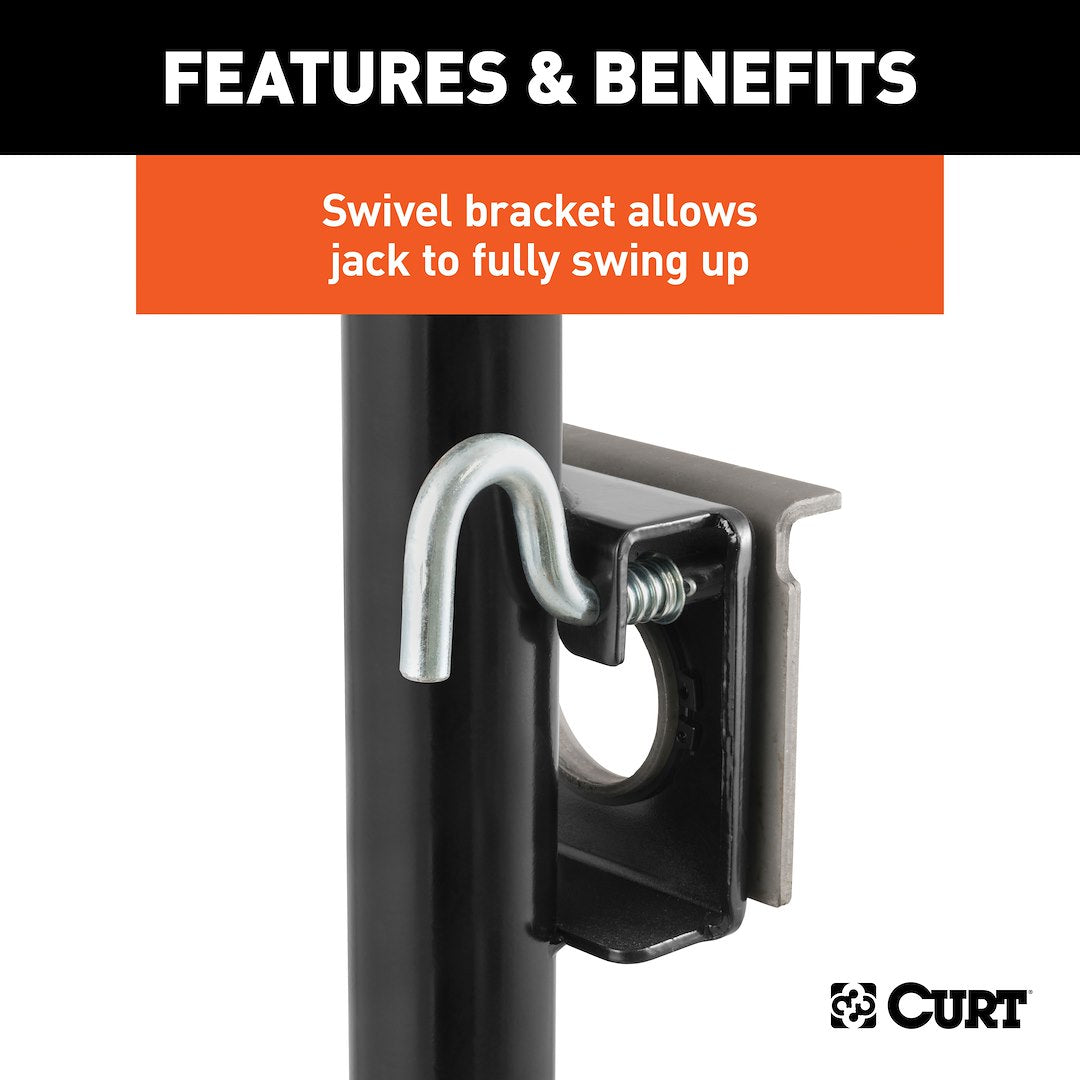

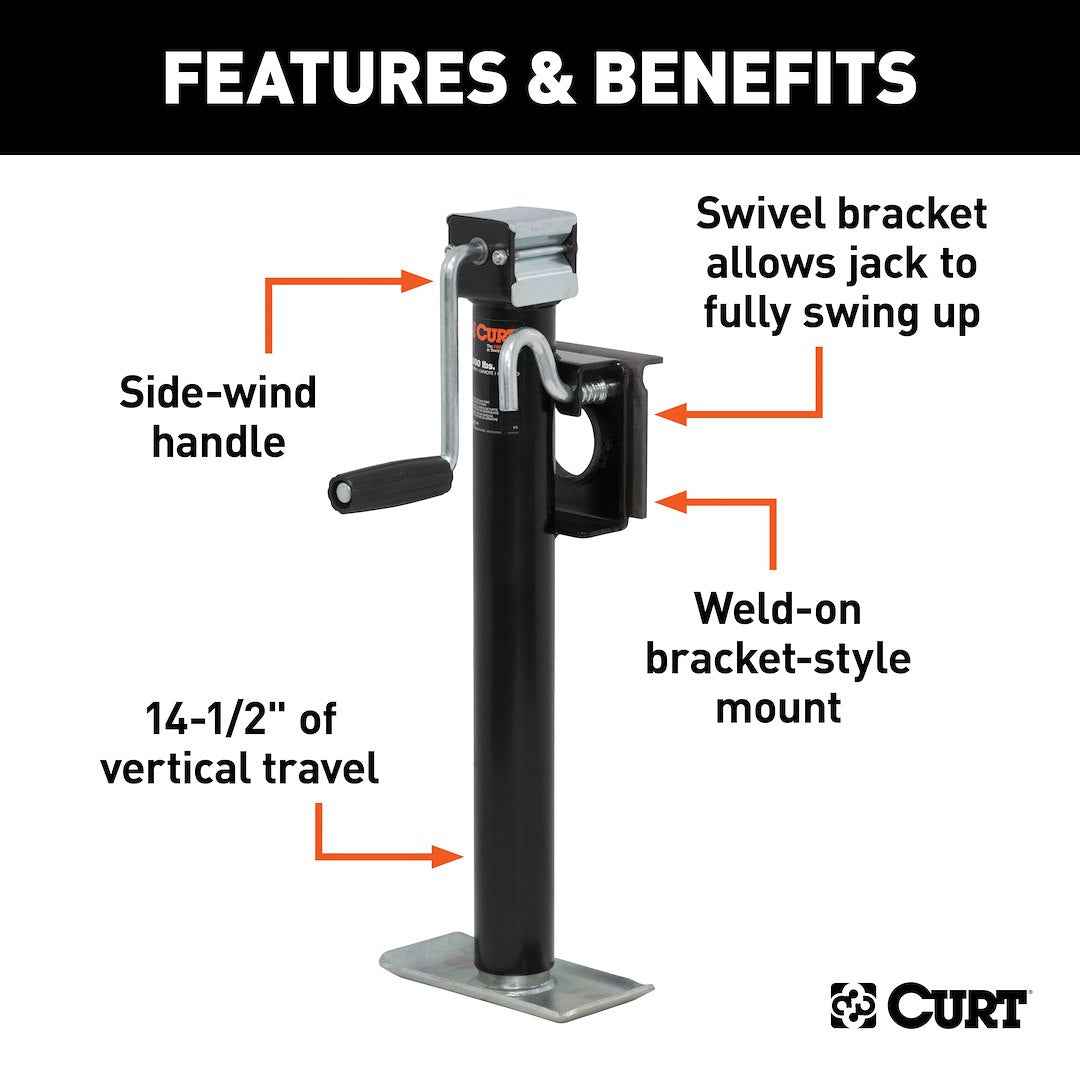

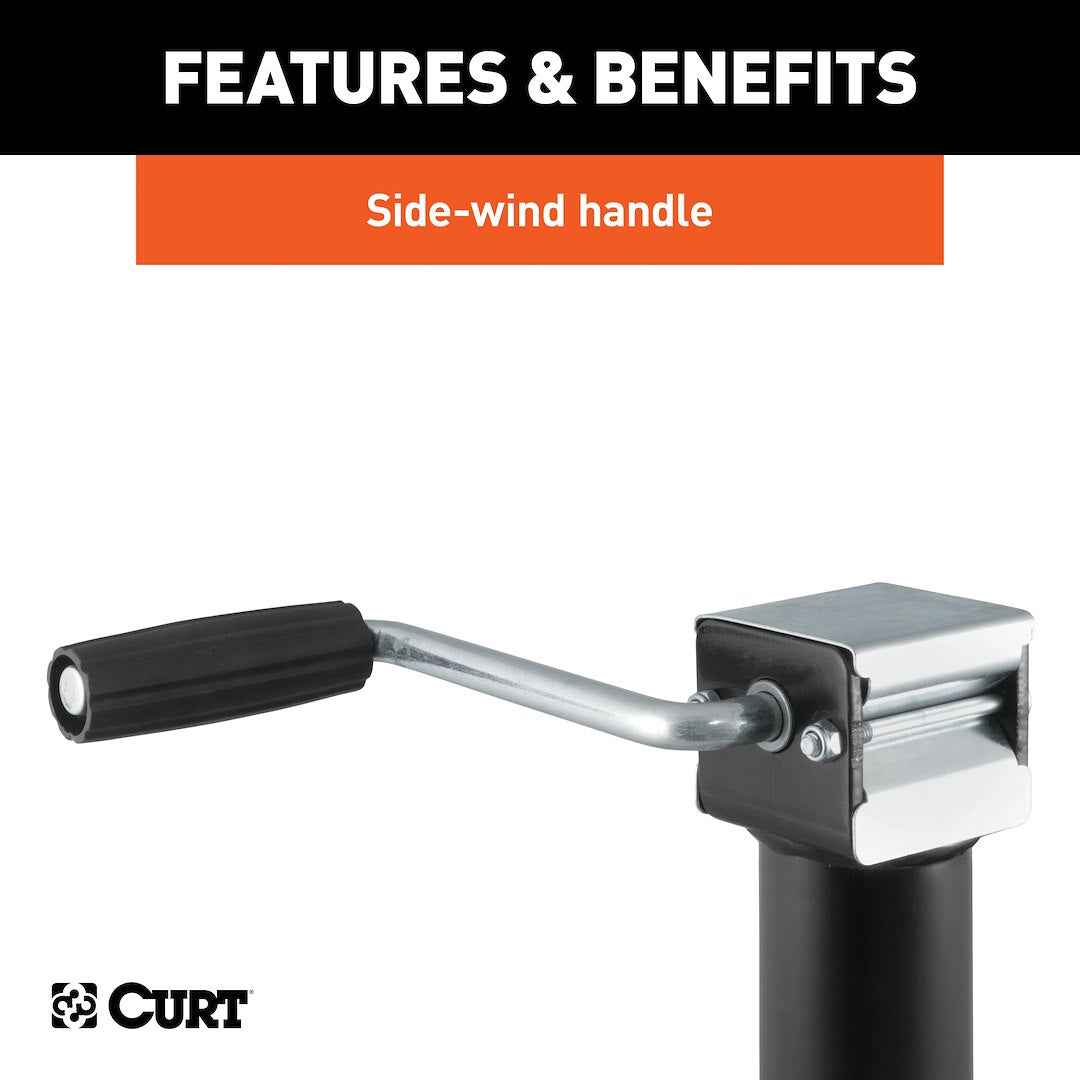

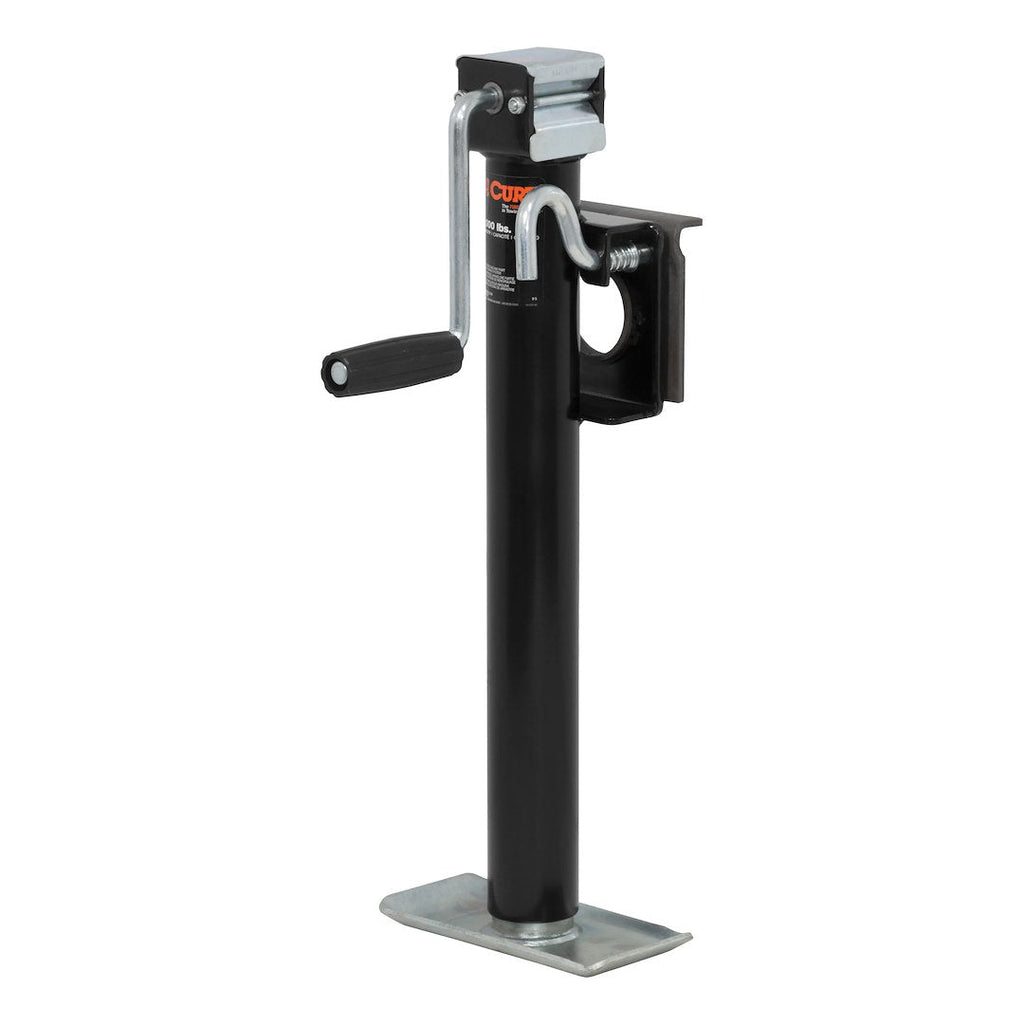

CURT 28306 is a manually operated bracket-mount swivel trailer jack with a side-wind handle and 15 inches of vertical travel. Its weld-on bracket and pull-pin swivel let the jack pivot out of the way for travel when properly secured.
Features and fit
- CURT rates this jack for 2,000 lb lift capacity and a separate 3,000 lb support capacity.
- Includes a built-in foot plate for stability; a caster wheel is not supplied.
- Weld-on mounting requires a suitable trailer installation; match coupler height and follow CURT instructions.
Specifications
| Maximum Lift |
15 in |
| Capacity |
2000 lb |
| Color/ Finish |
Black Powder Coated |
| Operation Type |
Manual |
| Type |
Round Sidewind |
| Mounting Type |
Weld-On |
| Number Of Wheels |
Without Wheel |
| Swivel |
Yes |

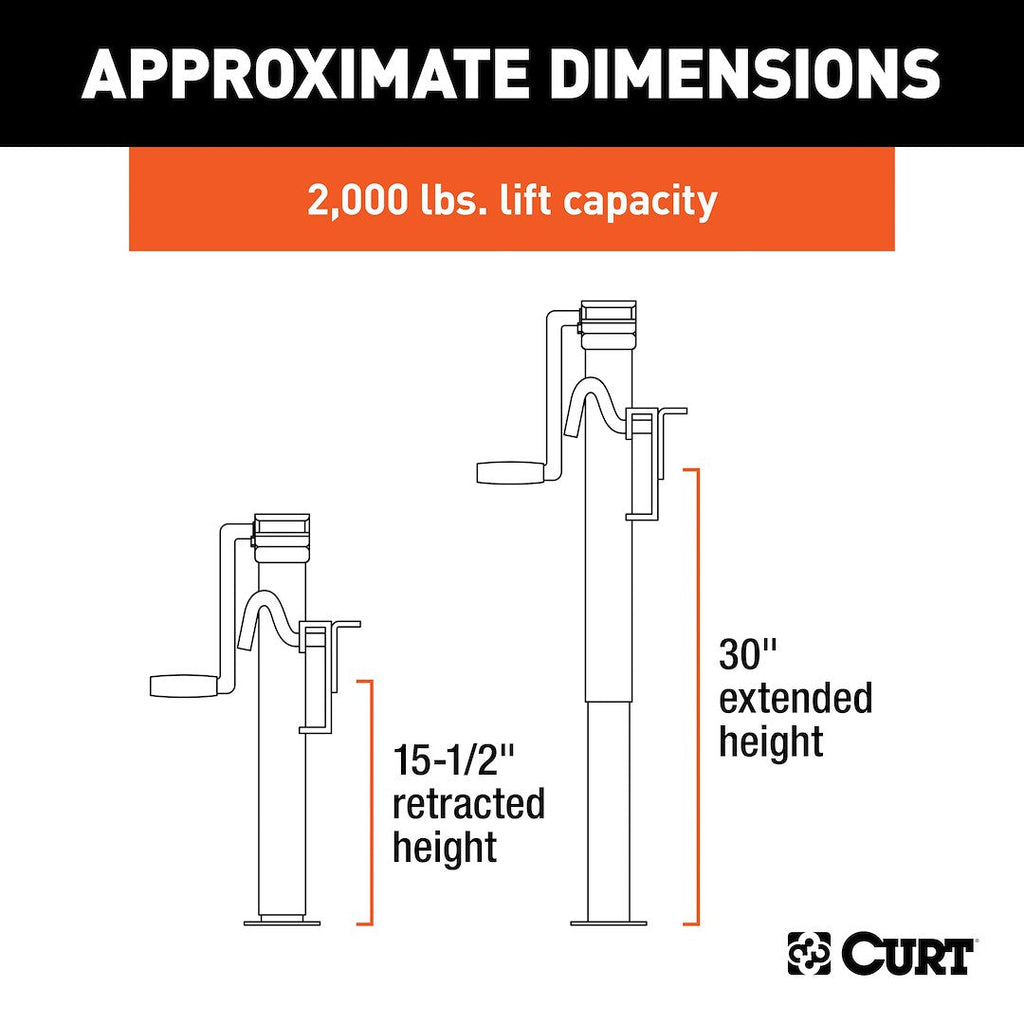

| Retracted Height |
15-1/2 in |
| Extended Height |
30 in |
Part Identification
| Brand |
CURT |
| Manufacturer Part Number |
28306 |
Installation Notes
| Estimated Install Time (Hours) |
0.5 |
