Description

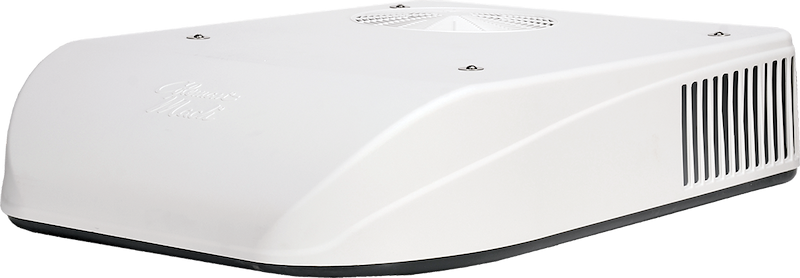

Coleman Mach 47023-075 8 Plus RV A/C - Heat Pump 13500 BTU White is an new air conditioner from Coleman Mach, with the key specifications and application details provided below.
Product Details
- Product Line: Mach 8 Plus
- Manufacturer Part Number: 47023-075
- Alternate Part Number: 37023-075
- Mounting Size: Fits 14 Inch x 14 Inch Rooftop Vent Openings
- Cooling Capacity: 13500 BTU
- System Type: Ducted or Non-Ducted
- Cooling Type: Refrigerant Cooling
- Function: Air Conditioner and Heat Pump
- Color: Polished White
- Voltage Rating: 120 Volt
- Compressor Draw: 12.5 Amp
- Amp Rating: 12 Amp
- Evaporator Flow Rate: 300 CFM
- Height: Ultra Low Profile - 8-1/4 Inch
- Width: 28.4 Inch
- Length: 41.1 Inch
- Weight: 90 Pounds
- Heat Pump: Yes
- Condensate Pump: Yes
- Remote Control: No
- Zone Control Board: Not Included
- Estimated Installation Time: 1.5 Hours
- Marine Approved: No
- Condition: New
Features & Benefits
- Powerful 13,500 BTU rooftop RV air conditioner with integrated heat pump
- Ultra-low profile 8-1/4 Inch rooftop height improves clearance and aerodynamics
- Built-in condensate pump with 100% condensate water removal capability
- Compatible with ducted and non-ducted RV systems
- Reduced outdoor fan operational noise by over 5 decibels
- Strong 300 CFM airflow for efficient interior comfort
- Industry-exclusive fiberglass base pan for superior durability and reduced weight
- Robust one-piece fan motor and venturi fan blade system
- Improved heat transfer across the outdoor coil
- Designed for easy replacement and upgrade applications
- Product Description
- The Coleman Mach 8 Plus Rooftop RV Air Conditioner with Heat Pump delivers efficient cooling and heating performance in one of the lowest-profile rooftop RV air conditioners available. Featuring 13,500 BTU of cooling capacity and integrated heat pump functionality, this unit provides dependable year-round comfort for RVs, travel trailers, fifth wheels, and motorhomes.
- Designed for both ducted and non-ducted RV systems, the Mach 8 Plus fits standard 14 Inch x 14 Inch rooftop vent openings for flexible installation compatibility.
- Its ultra-low-profile 8-1/4 Inch rooftop housing improves rooftop clearance and aerodynamics while maintaining powerful airflow and cooling performance. The industry-exclusive fiberglass base pan provides superior structural durability while reducing overall unit weight.
- This model also includes a built-in condensate pump with 100% condensate water removal capability for improved moisture management during operation.
- The integrated heat pump provides supplemental electric heating during moderate outdoor temperatures, reducing reliance on propane furnace systems when conditions permit.
- Please note that the ceiling assembly must be ordered separately.
- Compatibility Notes
- Fits standard 14 Inch x 14 Inch rooftop vent openings
- Compatible with ducted and non-ducted RV systems
- Ceiling assembly sold separately
- Compatible with select Coleman Mach thermostats and controls
Important Notes
- Heat pump functionality intended for moderate temperature heating applications
- Built-in condensate pump included
- Zone control electronic board not included
- Remote control not included
- Professional installation recommended
Warranty
- Limited 2 Year Warranty
