Description

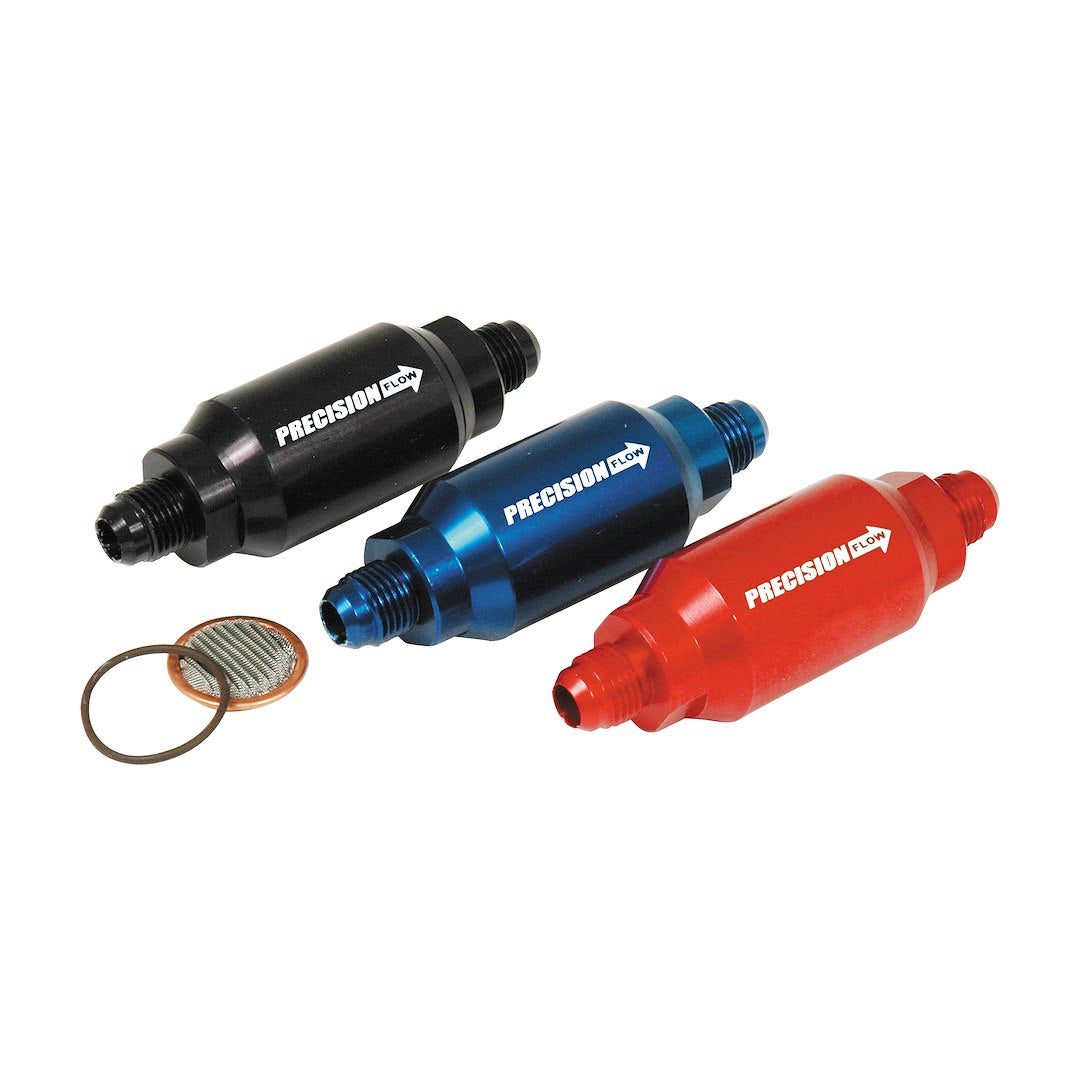

The inline filter uses a single end cap with an FKM O-ring seal. Its disc element allows flow in either direction.
Features
- Manufactured With 6061 Billet Aluminum For Strength And Durability
- Slim 1-1/4 Inch O.D. Allows For Easy Mounting
- Flow Rate Of 95 Gallons/Hour At 7 PSI For Race Or Street Applications
- 40 Micron Element Is Easy To Access And Can Be Cleaned Or Replaced.
- Replaceable Disc Style Filter Allows For Bi-Directional Filtering
- Made In The U.S.A.
- Limited 1 Year Warranty
Construction and application
- A single end cap sealed by an FKM O-ring gives quick access to the cleanable forty-micron wire-mesh element. The machined 6061 aluminum filter is intended for demanding street or strip use.
Specifications
| Type | Element |
|---|---|
| Location | In-Line |
| Fuel Type | Alcohol |
| Inlet Connection Size | -6 AN |
| Inlet Connection Type | Male Threads |
| Outlet Connection Size | -6 AN |
| Outlet Connection Type | Male Threads |
| Length (IN) | 3-3/4 Inch |
| Micron Rating | 40 Micron |
| Element Material | Screen |
| Finish | Anodized |
| Color | Clear |
| Material | Aluminum |
| Estimated Install Time (Hours) | 0.5 |
Additional product details
The clear body contains an FX alcohol element.
