Description

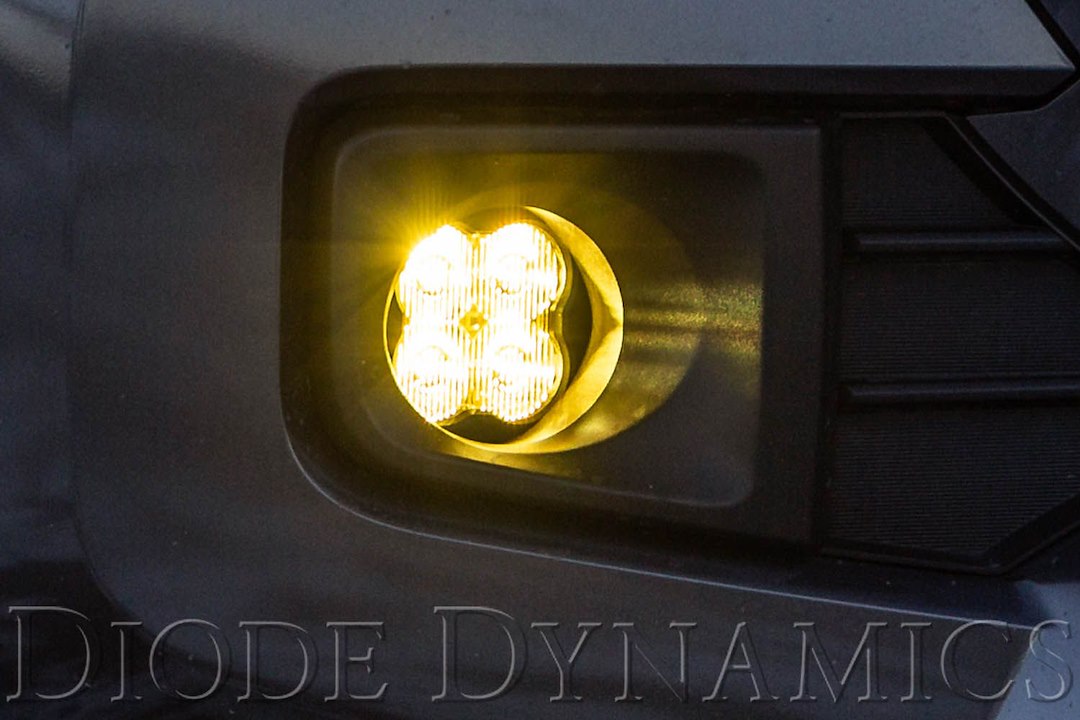

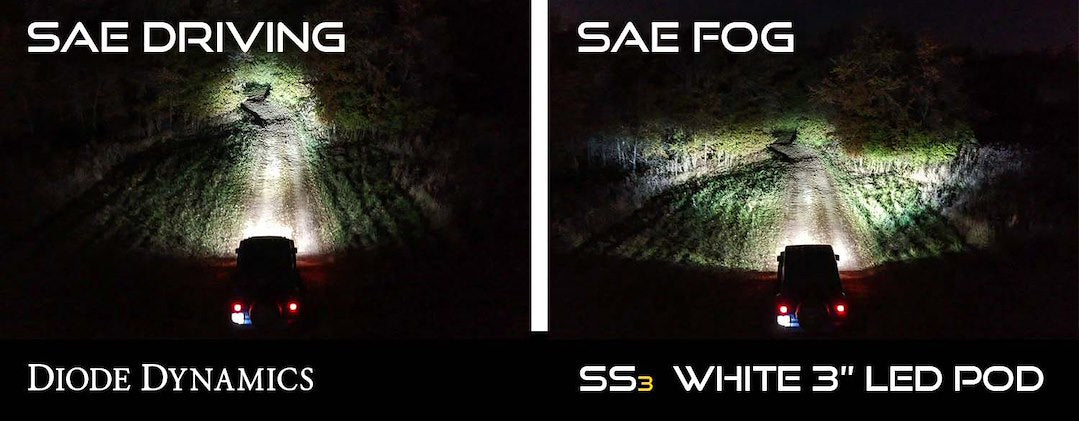

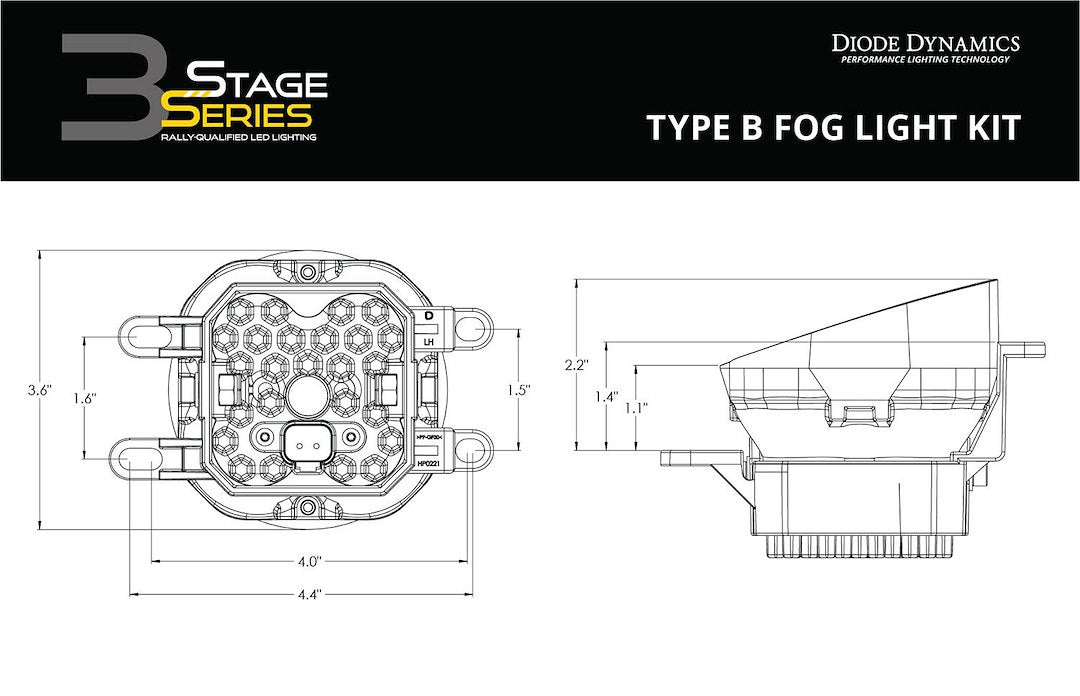

An angled bezel and Type B mounting brackets adapt the pair of SS3 lamps for fog-light replacement. TIR optics focus the fog/wide beam, with SAE-compliant road-legal output and plug-and-play fitting without modification.

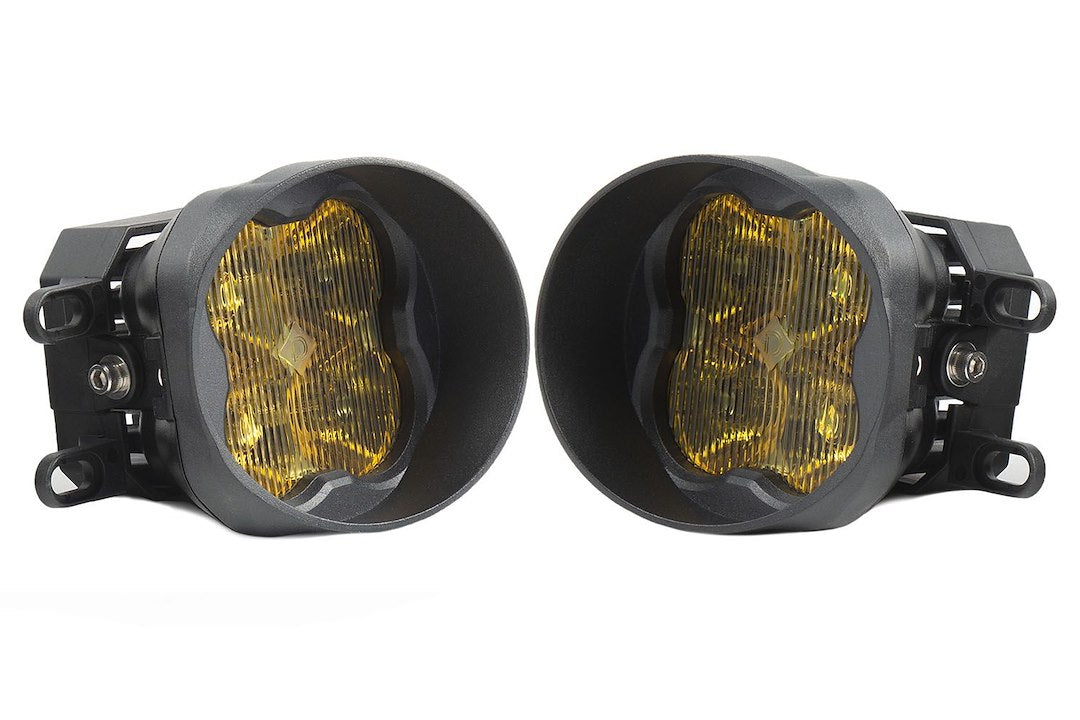

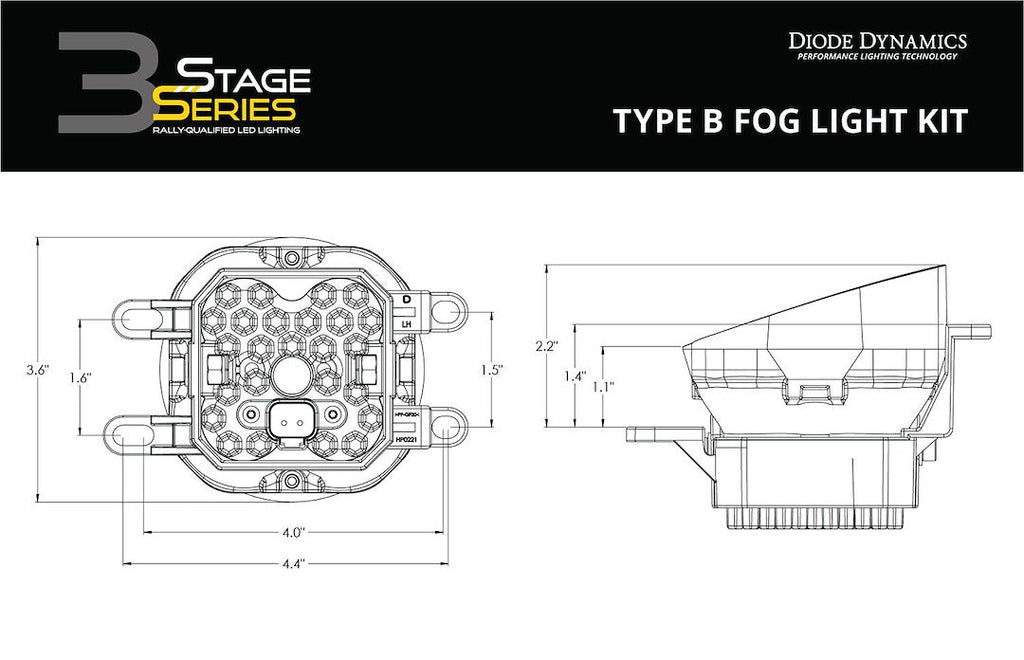

The 3-inch round lamps are 2.2 inches deep and use Luxeon Z ES LEDs, polycarbonate lenses and black powder-coated aluminum housings. Ratings are 14.5 watts, 16 volts, 1.1 amps at 12 volts and 2,262 raw lumens.

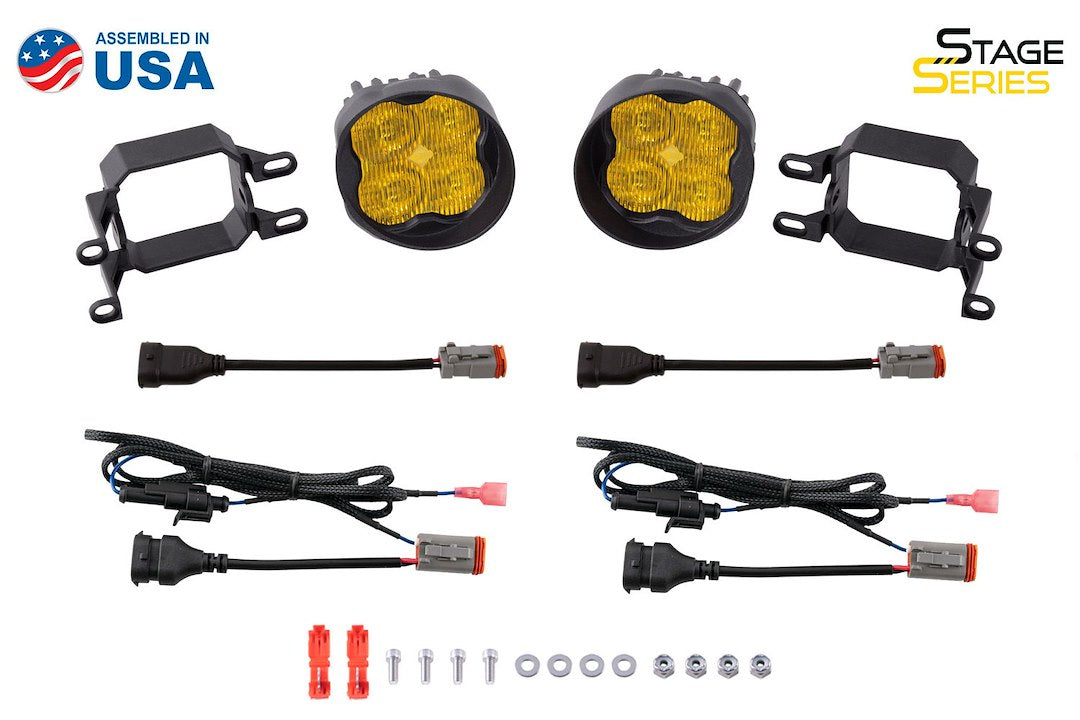

Two Type B brackets, two H11 2-pin DT adapters, hardware and a guide are included. Installation is estimated at 1.5 hours. Engineered and assembled in the USA. Limited 8 Year Warranty.
Specifications
| Bulb Type | LED |
| Beam Type | Fog/Wide Beam |
| Shape | Round |
| Diameter | 3 Inch |
| Height/ Width | Not Applicable |
| Depth | 2.2 Inch |
| Light Color | Clear |
| Wattage | 14.5 Watt |
| Voltage Rating | 16 Volt |
| Mounting Style | Bracket Mount |
| Quantity | Set Of 2 |
| Ampere Rating At 12 Volts | 1.1 Amp |
| Lumens | 2262 Raw Lumens |
| Bulb Specifications | Luxeon Z ES LED Bulb |
| Lens Material | Polycarbonate |
| Housing Color | Black |
| Housing Material | Aluminum |
| Includes | With Two Type B Bracket/ Two H11 2-Pin DT Adapter/ Mounting Hardware/ Mounting Guide |
| Estimated Install Time (Hours) | 1.5 |
