Description

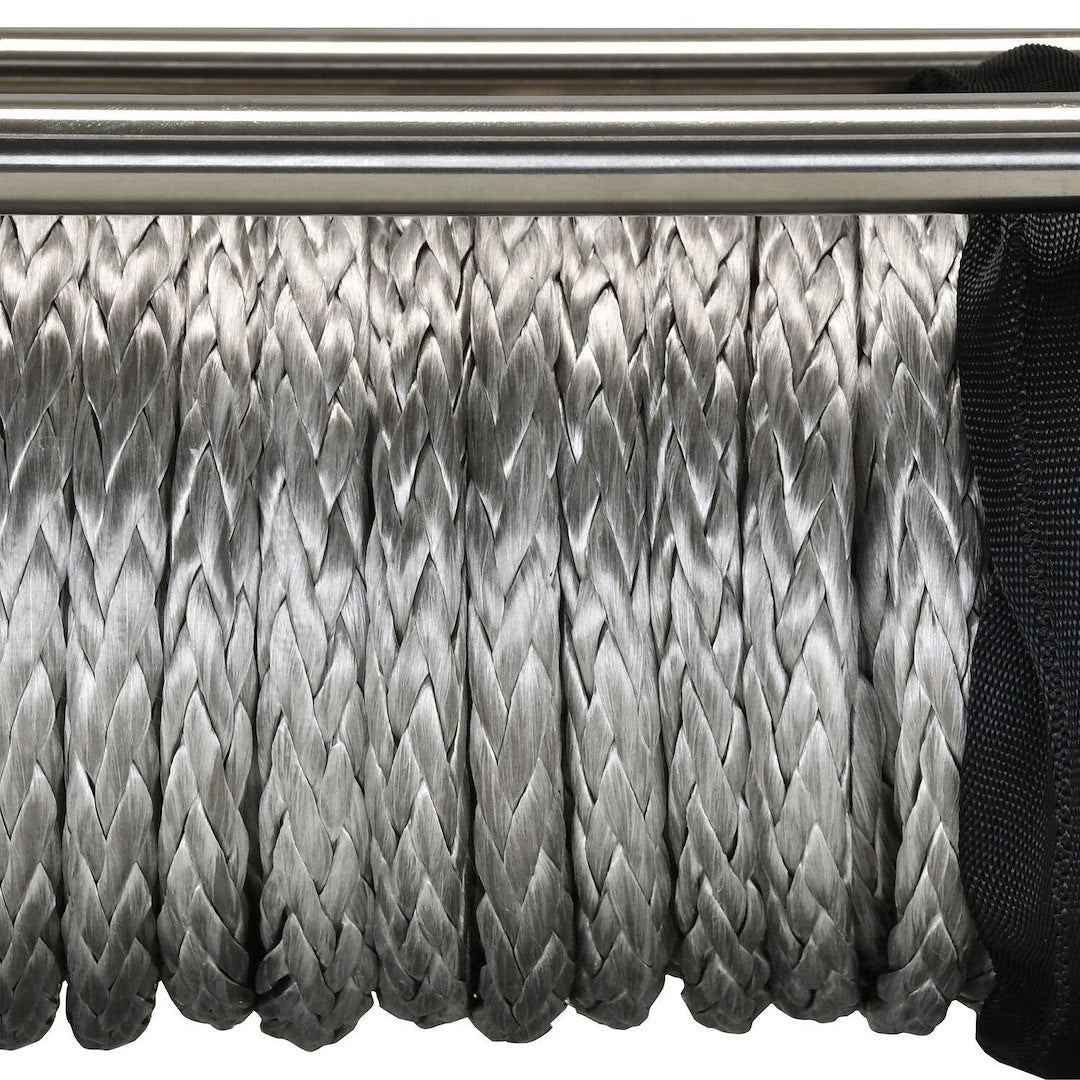

A thicker drum adds strength against rope loading. Certified Dyneema rope equips the planetary winch.
Product details

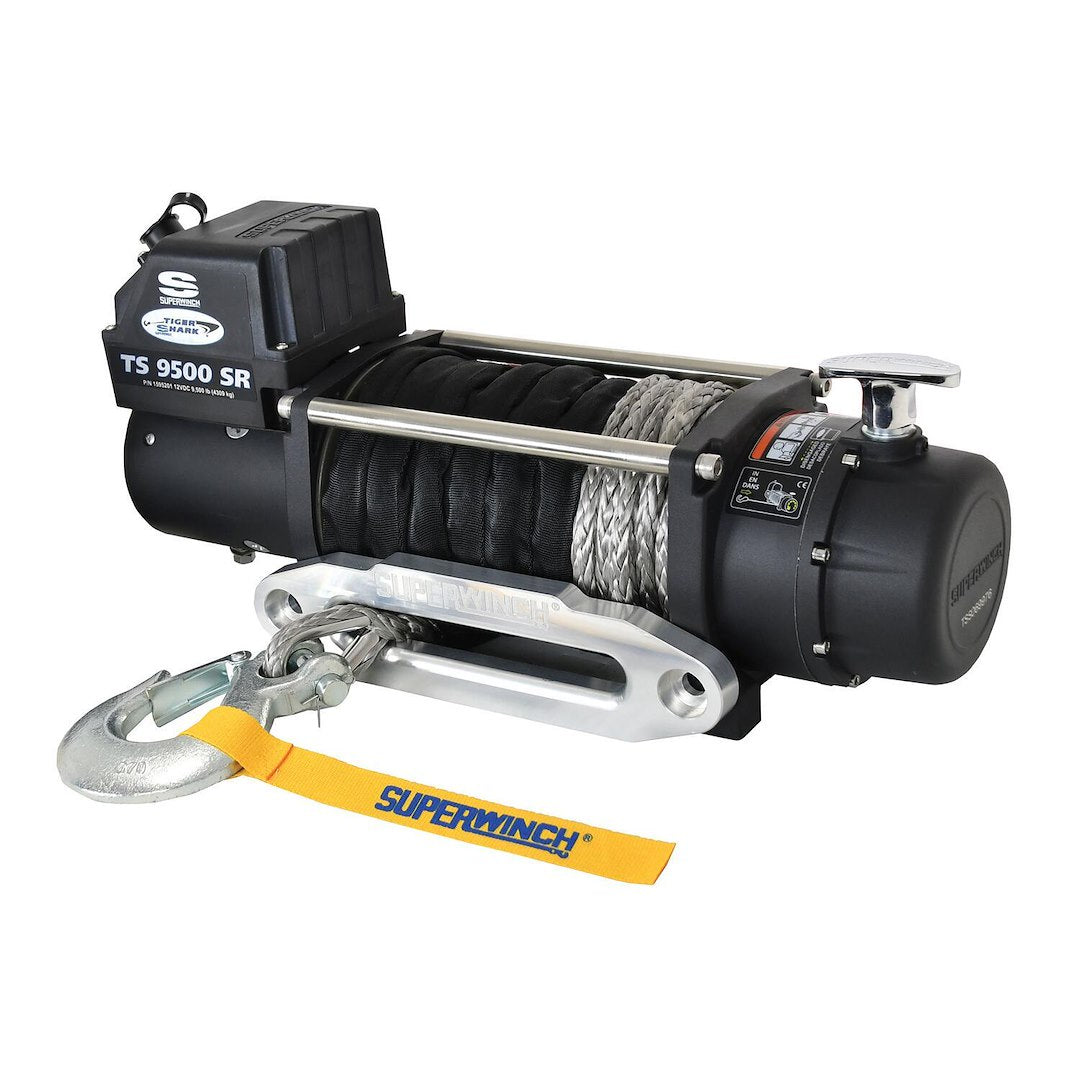

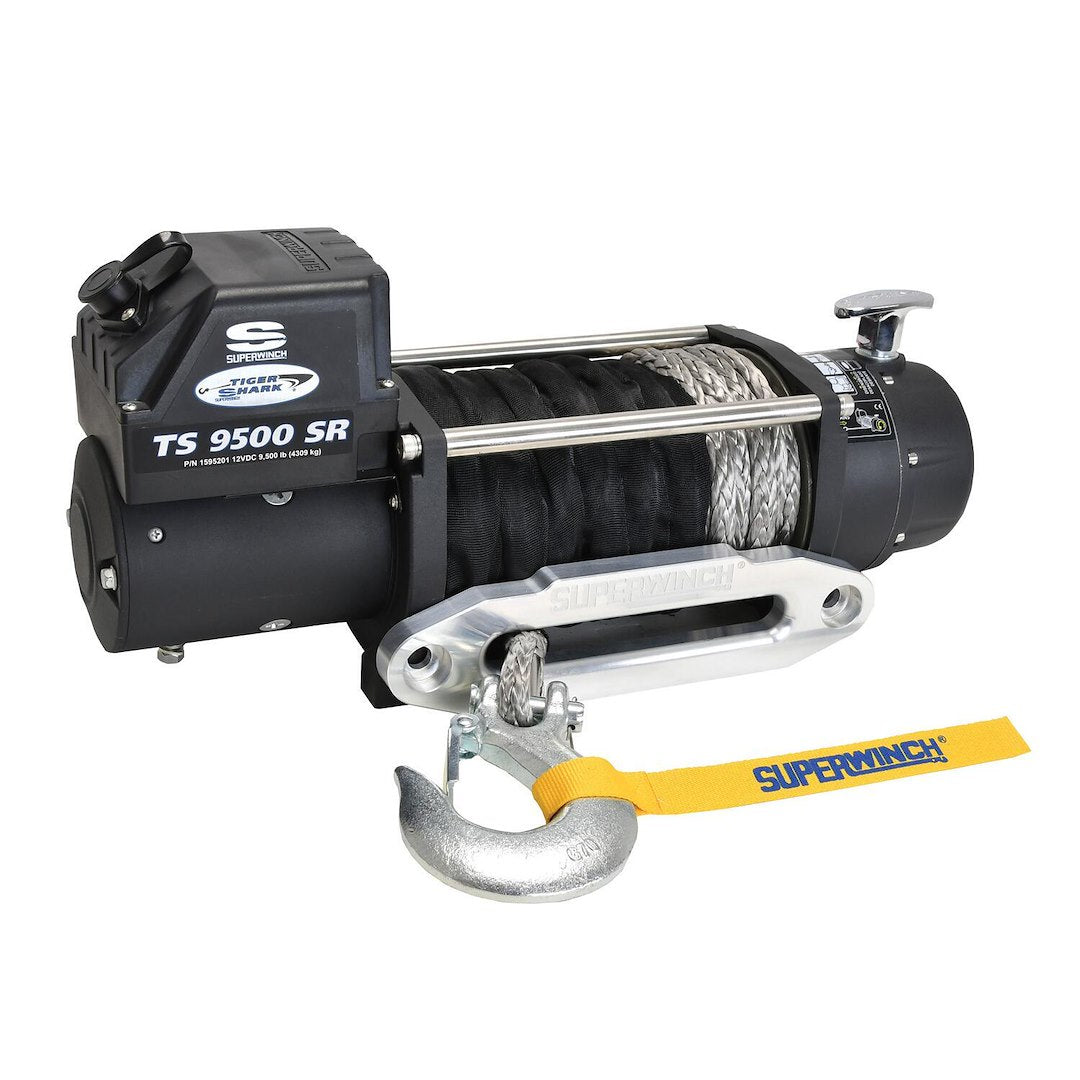

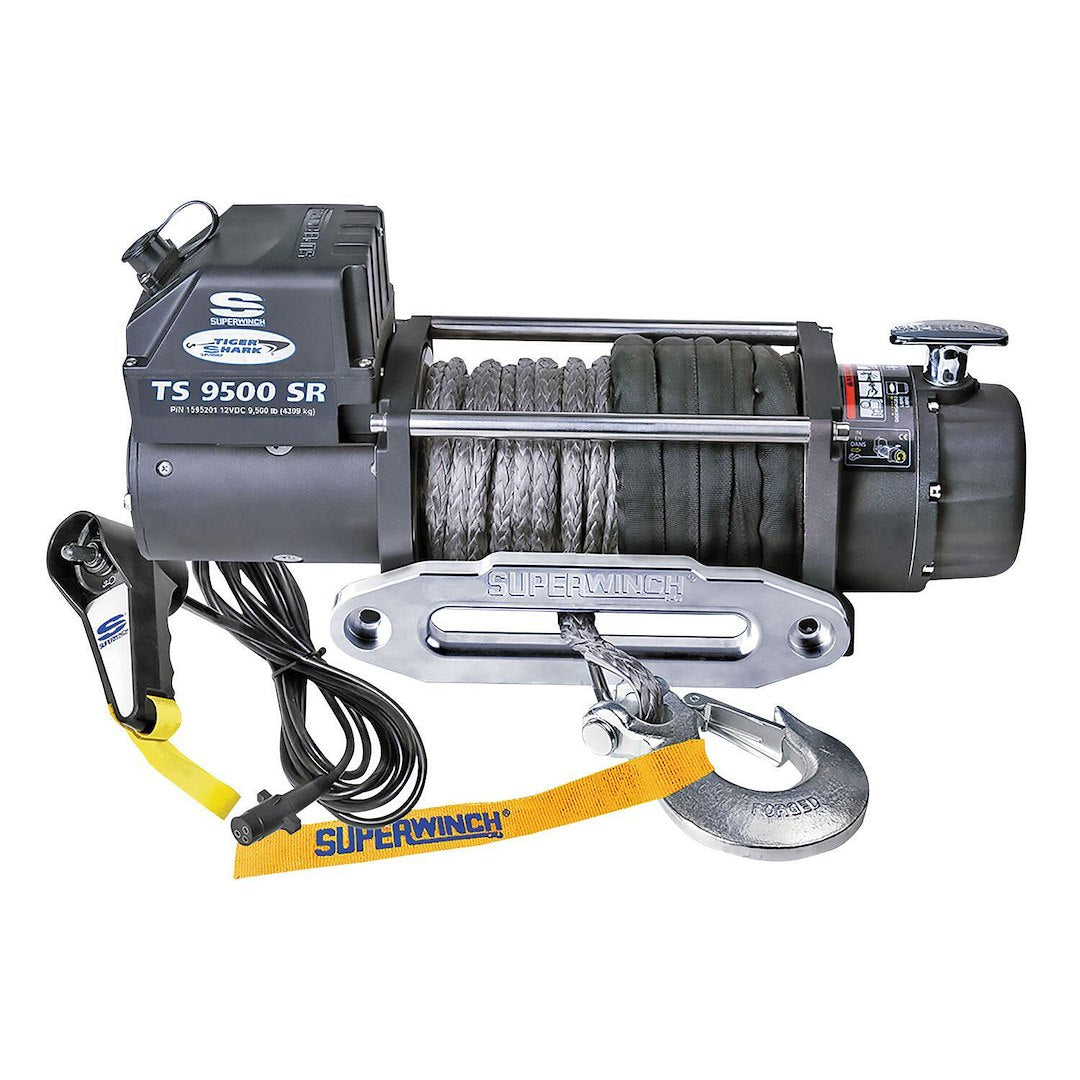

Tiger Shark synthetic-rope winch rated for 9,500 pounds. Synthetic-specific construction includes added drum thickness to withstand rope loading and a brake at the motor end outside the drum to avoid heat transfer. Certified Dyneema rope is supplied. The Tiger Shark Series has earned multiple SEMA awards and the ProPickup Rock Solid award for innovation, design, durability and functionality.
Features

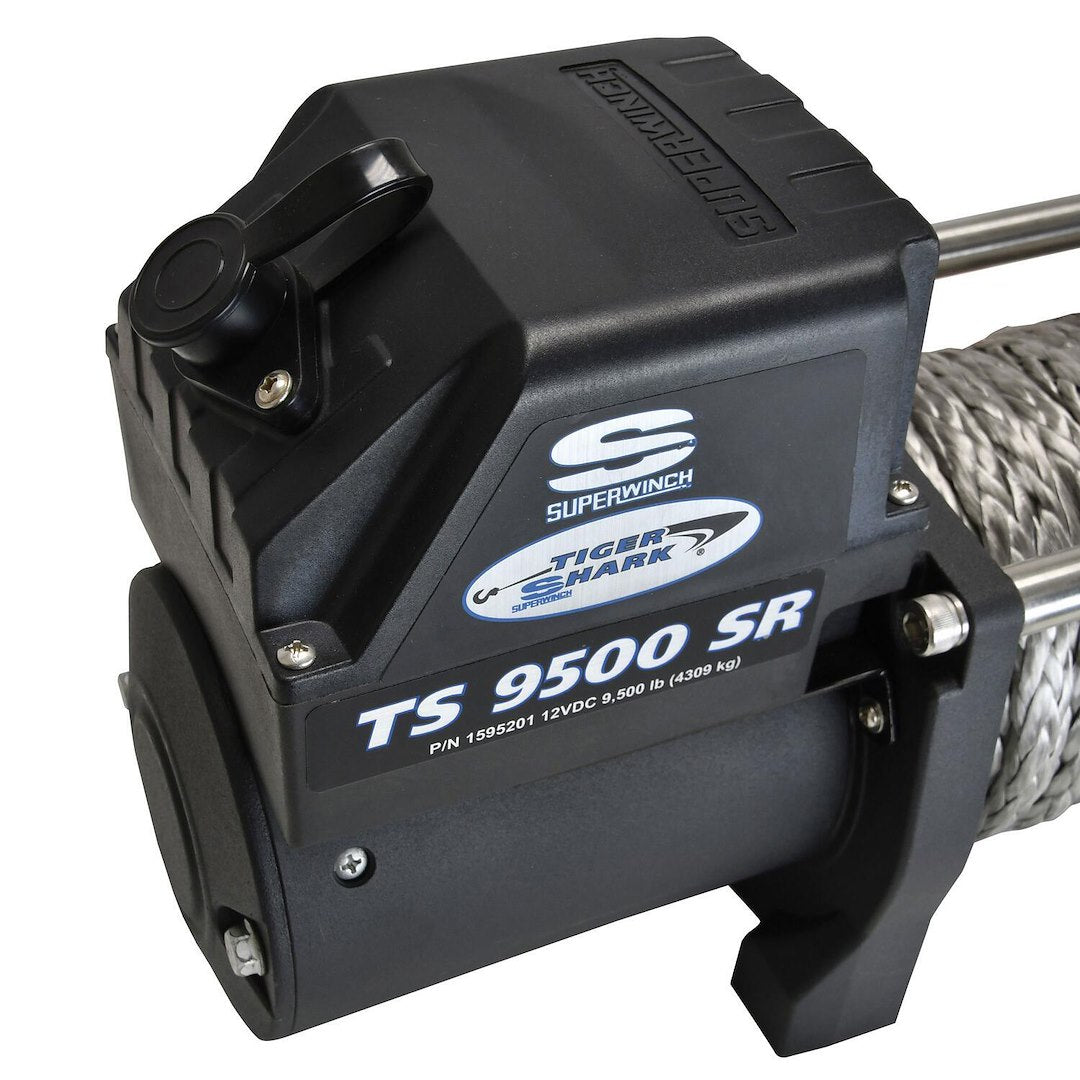

- Weather Sealed Motor And Solenoids - Reduces Damage From Rain, Snow And Blowing Dust
- Heavy-Duty 3-Stage Gearbox - Handles Stress And Torque On Demand
- Resists Harsh Outdoor And Off-Road Abuse

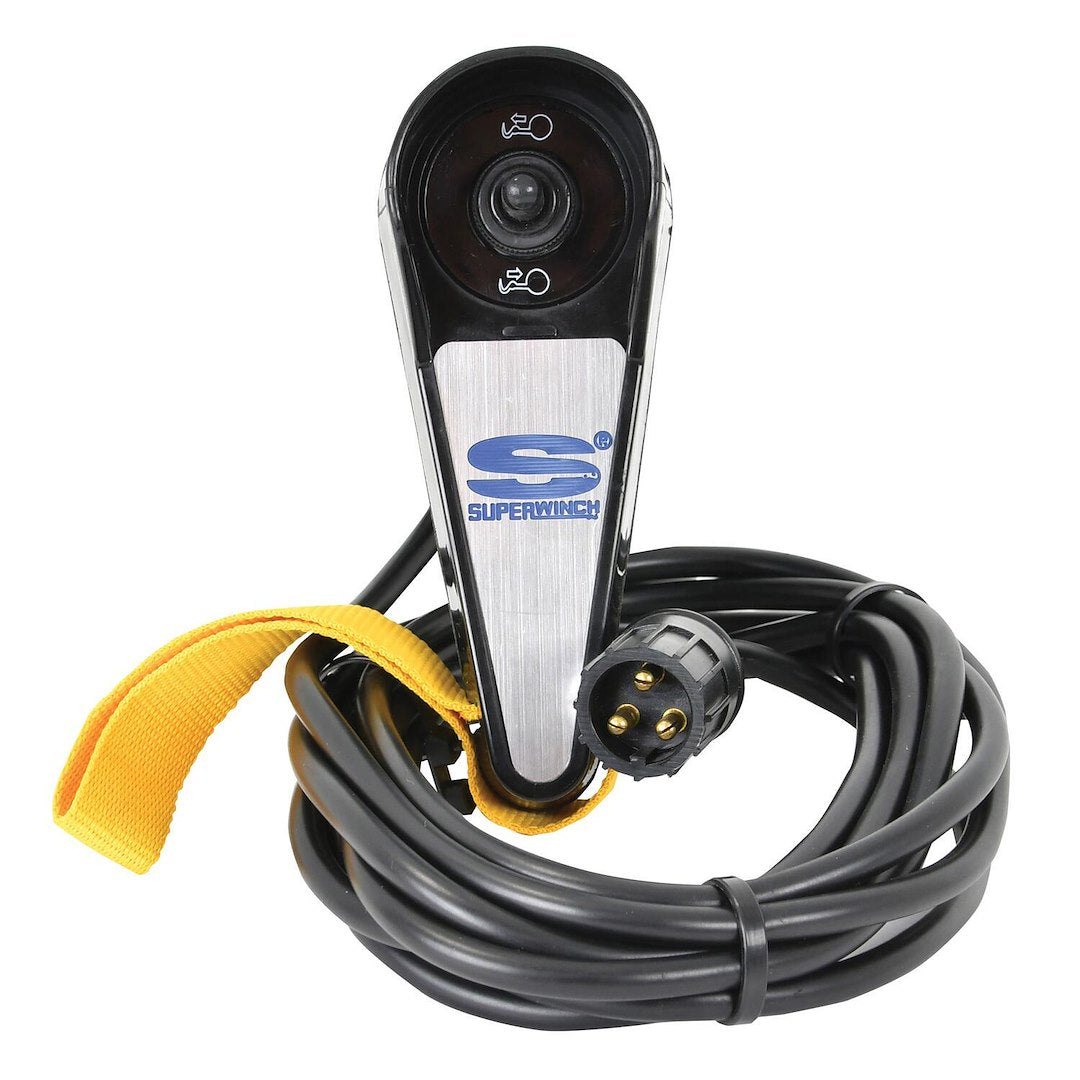

- Heavy-Duty Rubber Hand-Held Remote - Field Proven Design Provides Effortless Switching
- CNC'd Aluminum Hawse - Brushed Finish Endures Weather And Wire Rope Abuse
- Mechanical, Automatic Load Holding Brake

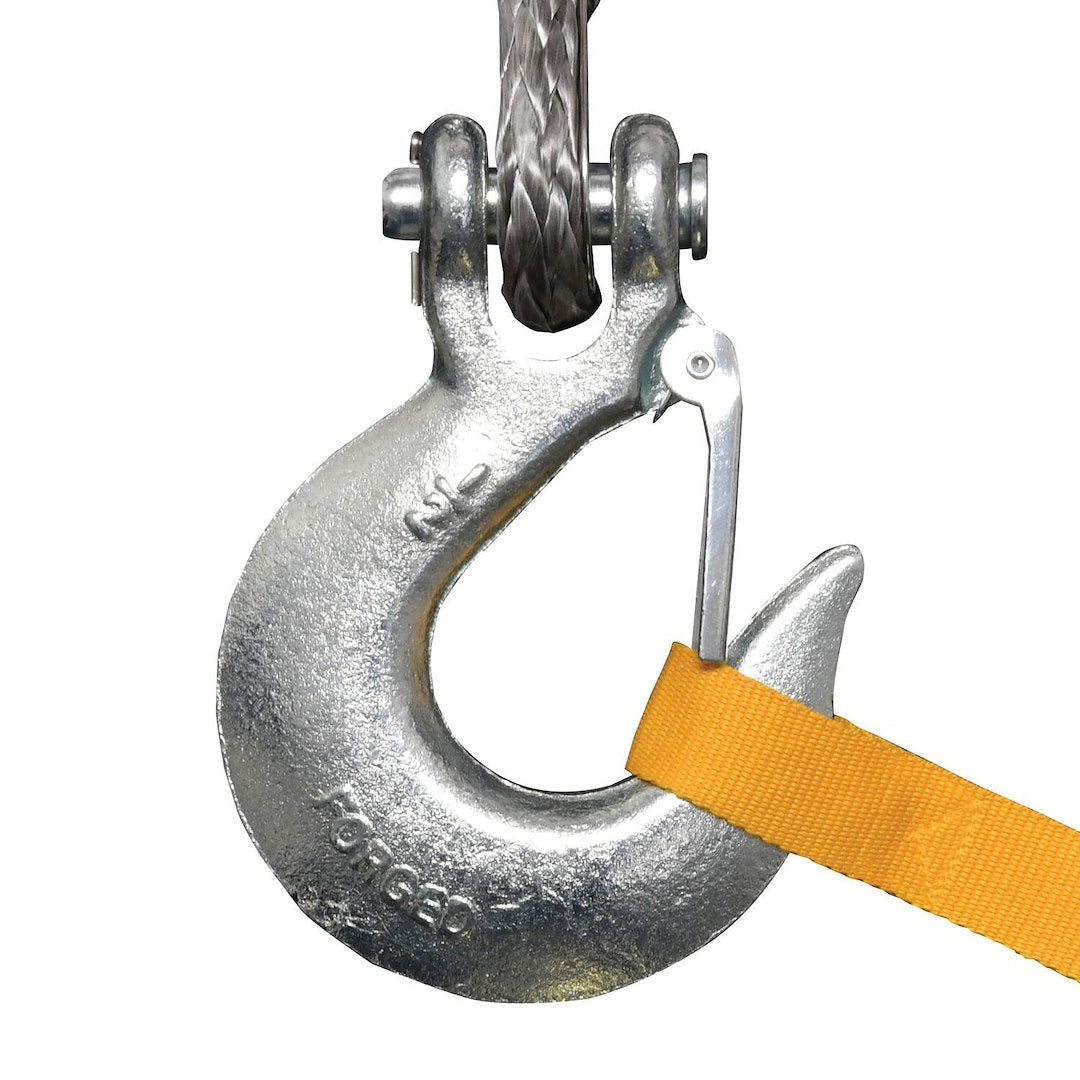

- Heavy-Duty Clevis Pinned Latched Hook
- Limited 2 Year Warranty
Specifications
| Winch Rating | 9500 Pound |
|---|---|
| Recommended Use | Vehicle Recovery |
| Operation Type | Electric |
| Mount Type | Fixed Mount |
| Voltage | 12 Volt |
| Free Spooling | Yes |
| Line Length (FT) | 80 Feet |
| Line Material | Synthetic |

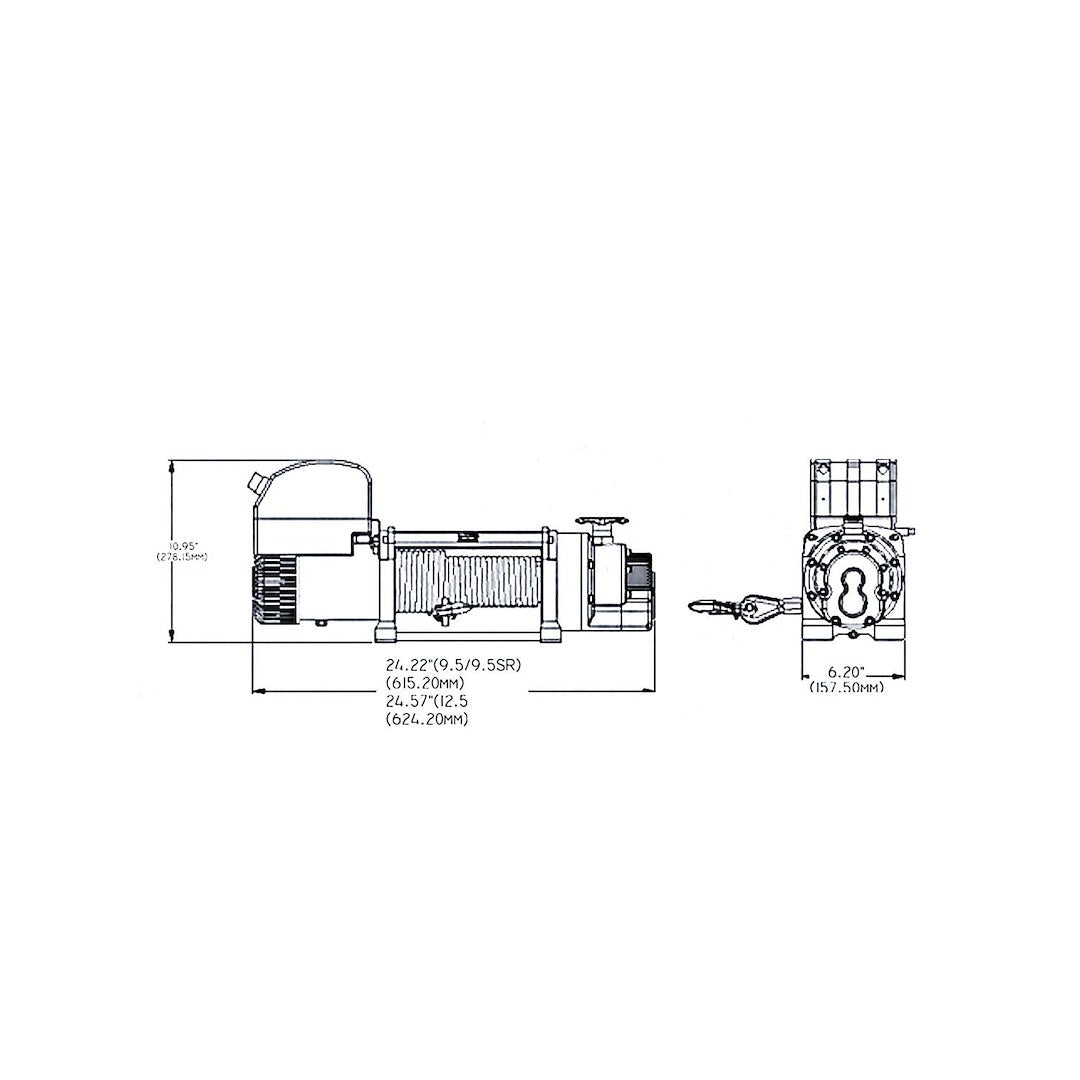

| Mounting Pattern Size | 10 Inch Length X 4-1/2 Inch Width |
| Brake Type | Automatic Full Load |

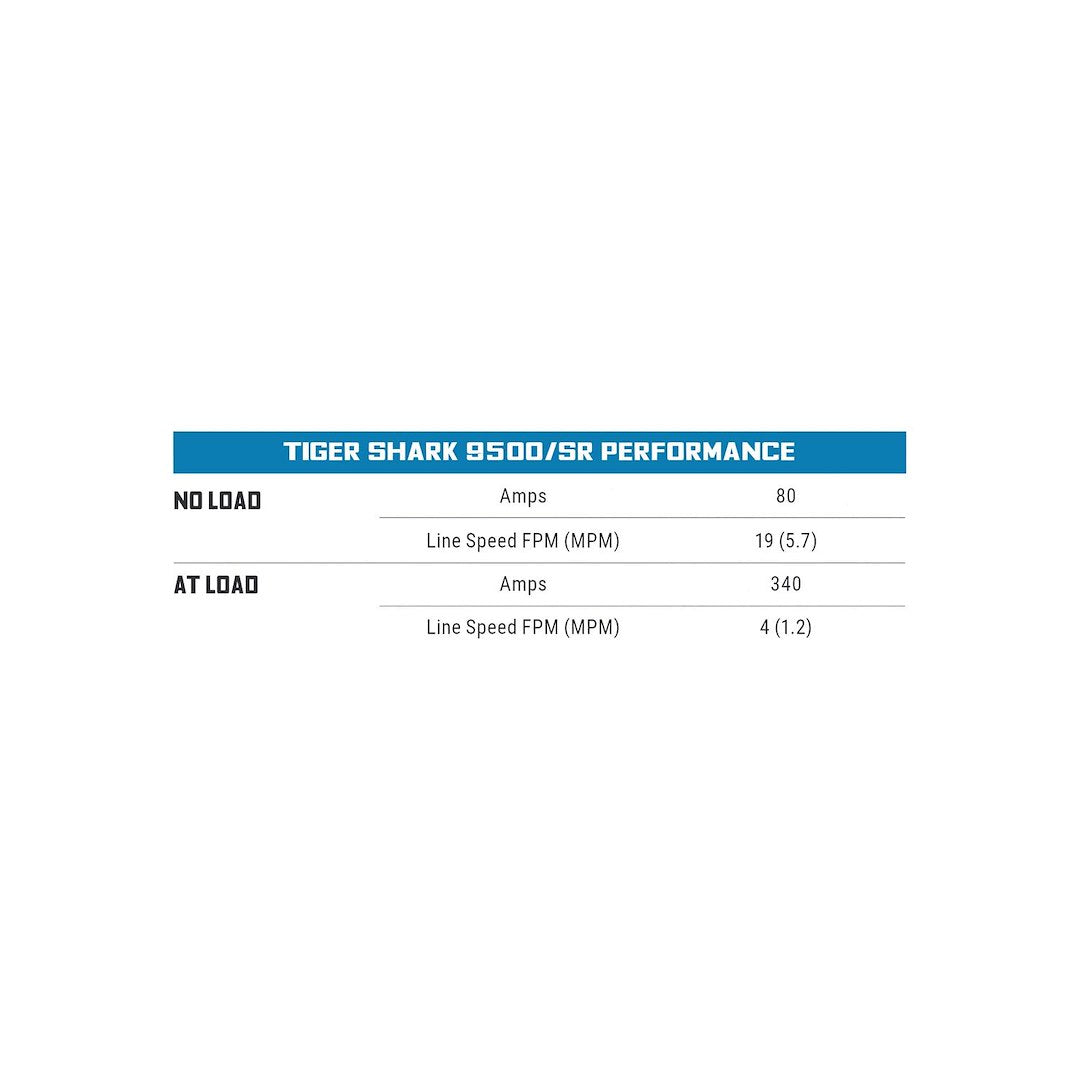

| Max Amp Draw | 340 Amp Draw At 9500 Pound |
| Gear Reduction Ratio | 218:1 |

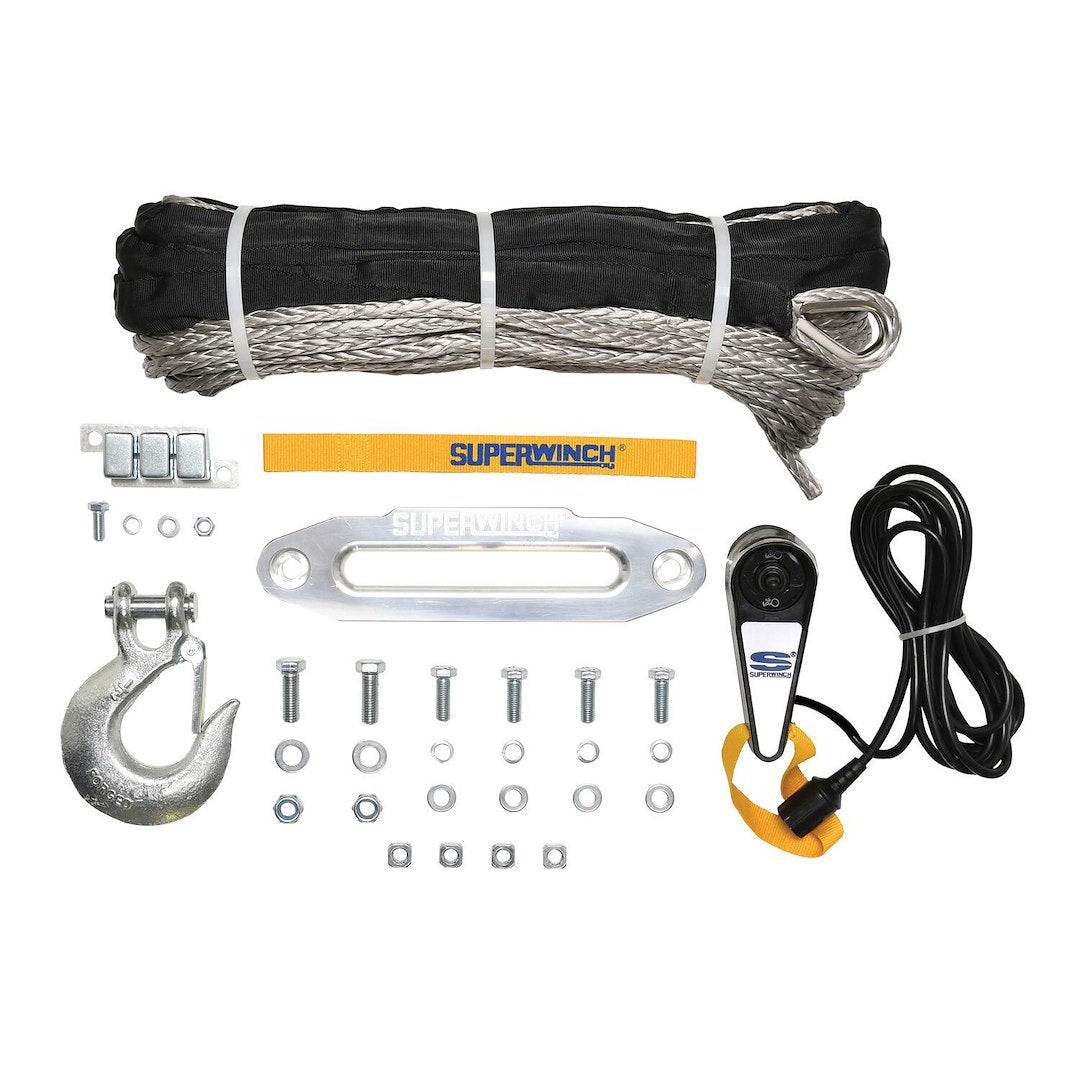

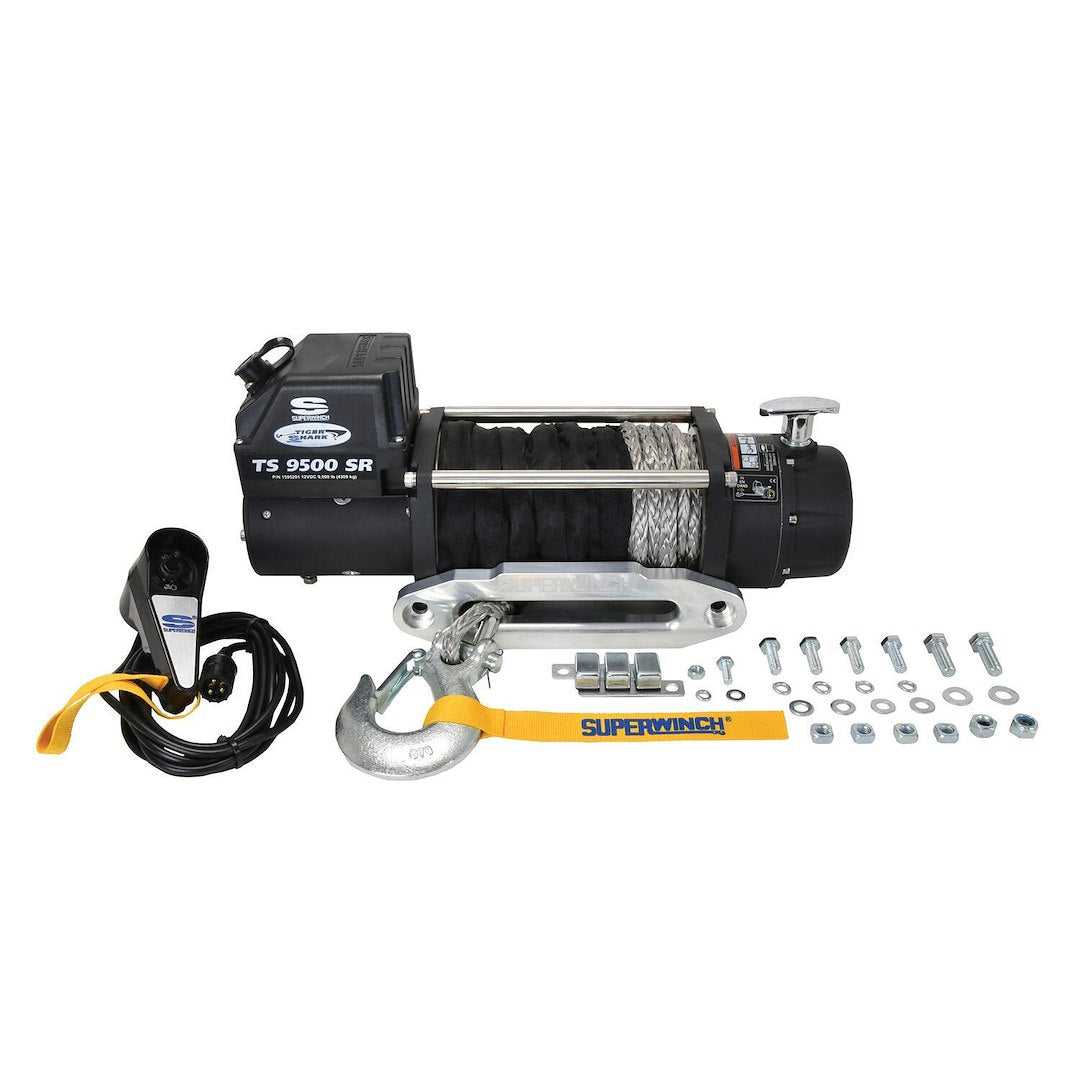

| Includes Mounting Hardware | Yes |
| Thermal Shutoff | No |
| Color | Gray |
| Motor Horsepower | 5.2 Horsepower |
| Fairlead Type | Hawse |
| Remote Type | Wired |
| Line Speed At Max Pull | 4 Feet per Minute At 9500 Pound |
| Electrical Control Type | Solenoid With Circuit Breaker Protection |
| Motor Type | Series Wound |
| Drive Gear Type | Planetary |
| Line Diameter (IN) | 3/8 Inch |
| Mounting Hole Quantity | 4 |
| Drum Material | Steel |
| Estimated Install Time (Hours) | 2 |
