Description

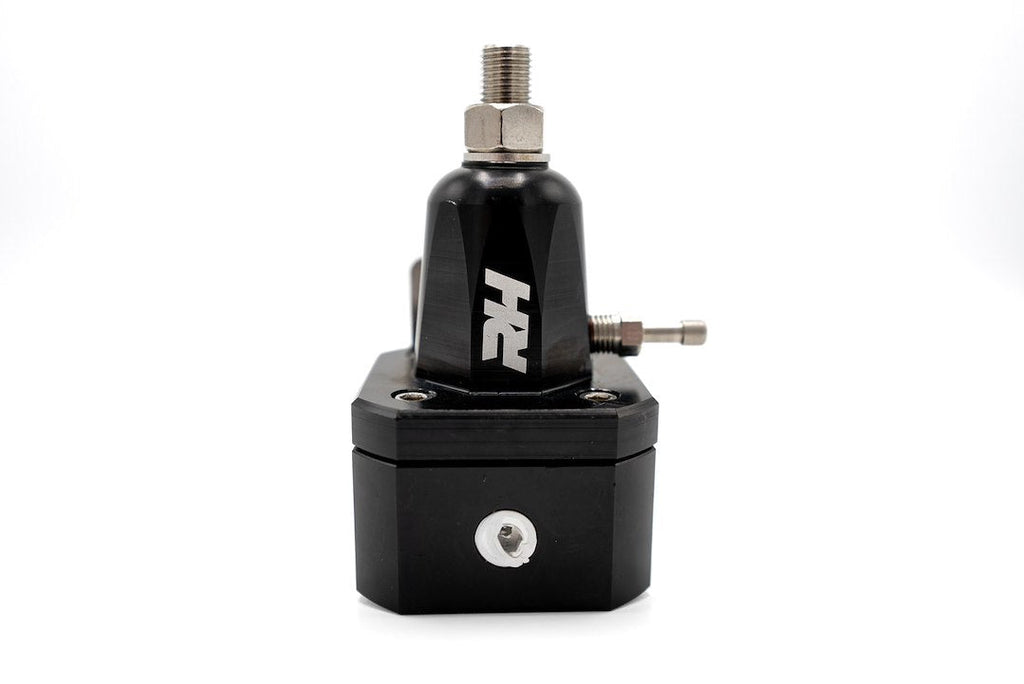

The black aluminum regulator supports gasoline applications and includes a steel mounting bracket. A face-mounted gauge port accepts a 1/8-inch NPT connection.
Features
- Base Fuel Pressure Is Adjustable From 40 To 75 Pounds Per Square Inch
- Boost Reference Port Available For Forced Induced Setup: Raises Fuel Pressure 1 Pound Each Pound Of Boost
- 1/8 Inch NPT Gauge Port On Face Of Regulator
- Easy To Install
- Limited Lifetime Warranty
Construction and application
- The universal 7910 Series bypass regulator is CNC machined in a compact, lightweight housing, supports applications up to 1,000 horsepower and is designed to pair with 6910 Series fuel pumps.
- The 7910 Series offers -06, -08 or -10 O-ring inlet options and a -06 O-ring outlet. This model has the three-eighths-inch inlet, outlet and return connections specified below. A steel mounting bracket is included.
Specifications
| Pressure Range (PSI) | 40 To 75 Pounds Per Square Inch |
|---|---|
| Fuel Type | Gasoline |
| Regulator Location | Inline |
| Regulator Type | Return |
| Shape | Square Base |
| Inlet Size | 3/8 Inch |
| Inlet Quantity | Single |
| Inlet Attachment | Female Threads |
| Outlet Size | 3/8 Inch |
| Outlet Quantity | Single |
| Outlet Attachment | Female Threads |
| Return Port Size | 3/8 Inch |
| Finish | Anodized |
| Color | Black |
| Material | Aluminum |
| Gauge Port | Yes |
| Includes Fittings | No |
| Includes Mounting Brackets | Yes |
Additional product details
Regulation of fuel pressure is the function of this unit.
