Description

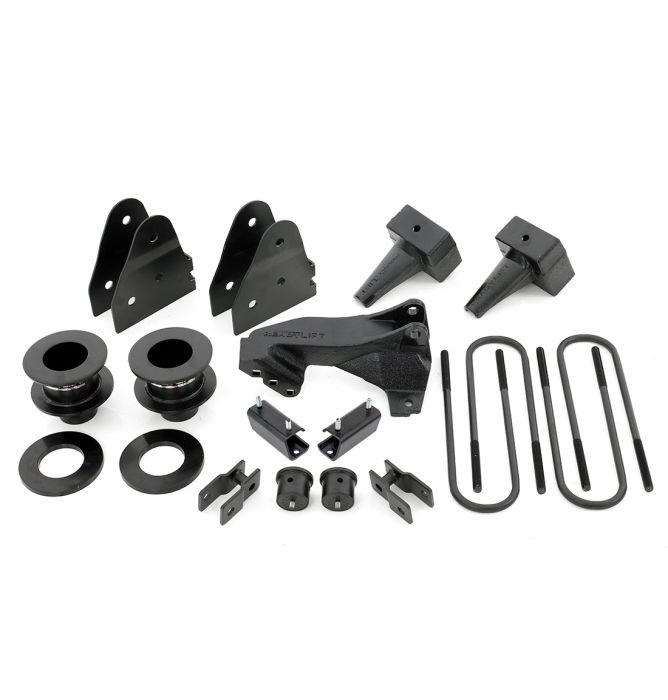

The Super Duty kit includes radius-arm drop brackets, a track-bar relocation bracket and front shock extensions. Original shocks are retained with the supplied suspension hardware.
For 2017 Ford F-250 4WD with a two-piece driveshaft. Includes sound isolators, sway-bar spacers, bump-stop extensions and front brake-line brackets. Blocks are incompatible with air-spring/load-leveling systems that attach to bump-stop tangs. Tire recommendation: 37x12.50 on wheels at least 17 inches in diameter and 9 inches wide, +25 offset/6-inch backspacing; minor valance trimming may be needed.
Specifications
| Front Lift Amount (IN) | 3-1/2 Inch |
|---|---|
| Rear Lift Amount (IN) | 1 Inch |
| Front Lift Type | Coil Spring Spacer |
| Rear Lift Type | Blocks |
| Maximum Tire Size | 37 x 12.50 |
| Wheel Backspacing (IN) | 6.00 |
| Shock Type | Without Shocks |
| Wheel Offset (MM) | 25 |
| Shocks | Without Shock Absorbers In Kit - Shock Change Not Necessary |
| Color | Black Components |
