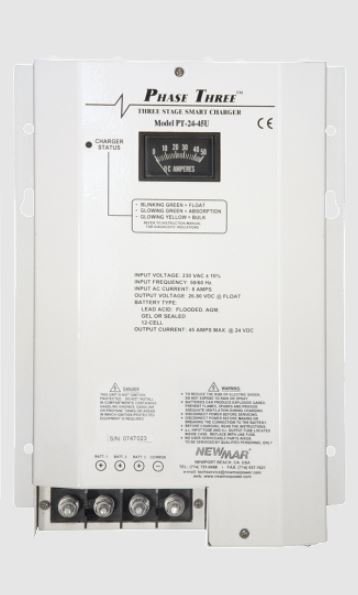

Description
The protected circuitry supports three-stage charging and can also power loads without a battery attached. Input voltage spans 90 to 264 volts.
Features
- Three-stage bulk, absorption and float charging supports battery recovery and conditioning.
- Selector switch adapts voltage for gel-cell, flooded lead-acid or AGM batteries.
- Optional temperature sensor adjusts output voltage for battery ambient temperature.
- Stainless steel case; series offers natural or durable white powder-coated finish.
- Polyurethane-coated internal circuitry resists corrosion; optional drip shield available.
- Isolated output banks and an ammeter indicating total output current.
- Current limiting protects against overload.
- Charger status is displayed by LED, ammeter or remote panel.
- Can supply loads without a battery connected.
- Meets numerous safety and EMC requirements.
- Two year parts and labor warranty.
- Smart circuitry provides three stage charging--bulk, absorption, float.
- Multiple isolated output banks; ammeter indicates total output current.
- Optional sensor adjusts output voltage based on battery temperature.
- Current limiting-prevents damage from overloading.
- Charger status clearly displayed with L.E.D., ammeter, or remote panel
- Use as a power supply; can power loads without a battery in line.
- Optional drip shield and marinized internal circuitry.
- Numerous Safety and EMC Compliances
- Two year parts and labor warranty
Specifications
| Number Of Banks | 3 |
|---|---|
| Application | AGM/ Flooded/ Gel Batteries |
| Output Voltage | 24 Volt |
| Input Voltage | 90 To 264 Volt |
| Ampere Rating | 45 Amp Charging |
| Length (IN) | 14.8 Inch |
| Width (IN) | 9.6 Inch |
| Height (IN) | 5.6 Inch |
Additional product details
Battery charging uses three banks, with ratings of 24 volts and 45 amps.
The Phase Three charger range serves small recreational craft, large live-aboards, workboats and other commercial vessels.
