Description

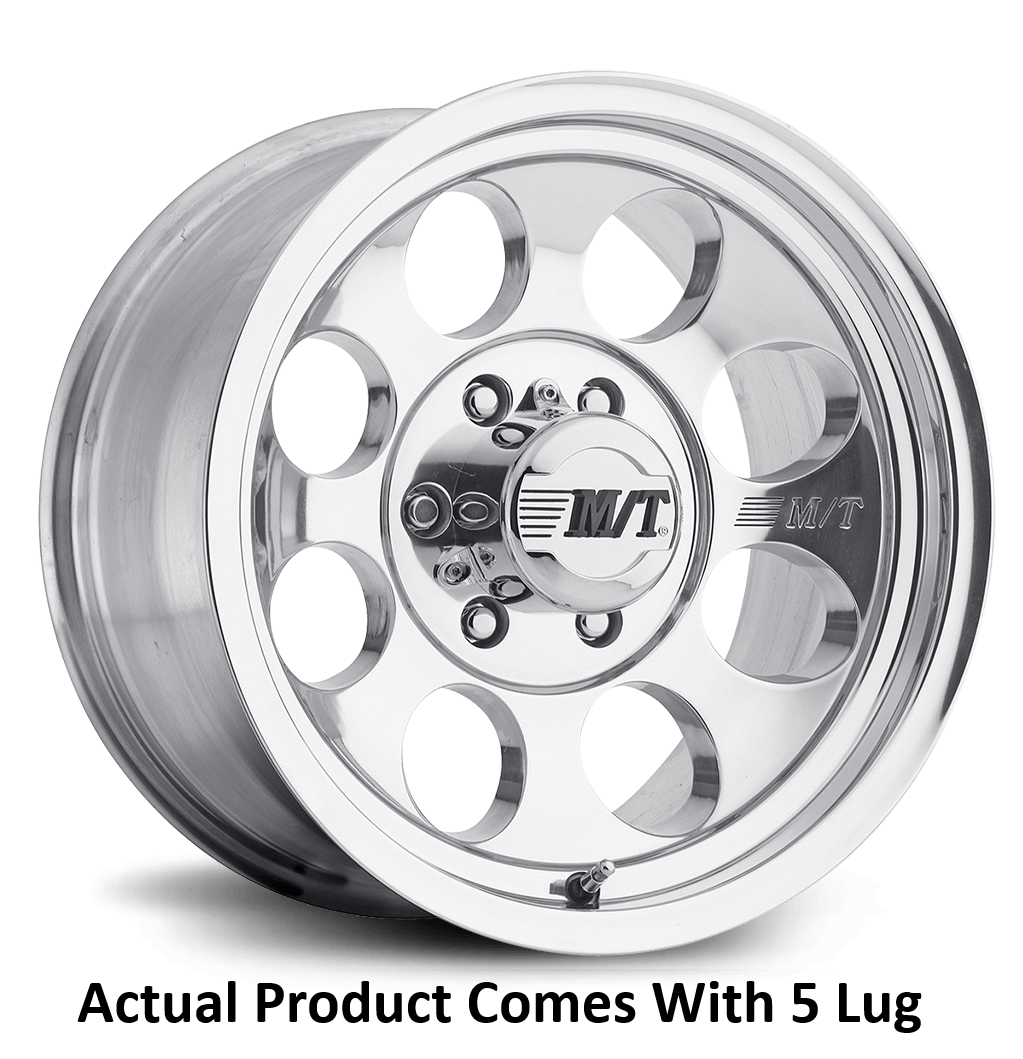

A -58 offset and 4.25-inch backspacing are the installation dimensions for Classic III 277005. Its cast aluminum body carries the polished finish and embossed M/T center cap of the series.
Installation notes
Not suitable for 2022 and later Toyota Tundra. Check bolt circle, hub, offset and clearance for the intended vehicle. Mickey Thompson recommends Duplex Bulge Acorn lug nuts on vehicles with GVWR of 6,500 lb or greater. Center caps are not available for certain 1997 and earlier Ford 3/4- and 1-ton pickups, 2002 and earlier Dodge/Ram 3/4- and 1-ton pickups, 1986 and earlier Jeep/CJ and early Toyota Land Cruiser applications.
Classic III wheels are not compatible with 1986 and earlier CJ models. Use 60-degree bulge acorn lug nuts.
Specifications
| Offset | -58 |
|---|---|
| Estimated Install Time (Hours) | 0.5 |
| Width | 12 |
| Diameter | 17 |
| Size | 17x12 |
| Load Capacity | 2500 |
| Backspacing | 4.25 |
| Max Tire Diameter | 40 |
| Bolt Pattern | 5x127 |
| Bolt Pattern Millimeter | 5x127 |
| Bolt Pattern | 5x5.00 |
| Bolt Pattern Inch | 5x5.00 |
| Lug Nut Seat Type | 60 Degree Conical |
| Center Bore | 78.10 |
| Basic Design | 8 Hole |
| Lug Nut Design | Acorn |
| Material | Aluminum |
| Center Cap Design | Embossed M/T Logo |
| Structural Warranty | Lifetime |
| Color | Natural |
| With Hub Centric Ring | No |
| With Inserts | No |
| Finish Warranty | No Warranty |
| Construction | One Piece Cast |
| Finish | Polished |
| Quantity | Single |
| Center Caps Included | Yes |
| Compatible With TPMS (Tire Pressure Monitoring Sys | Yes |
