Description

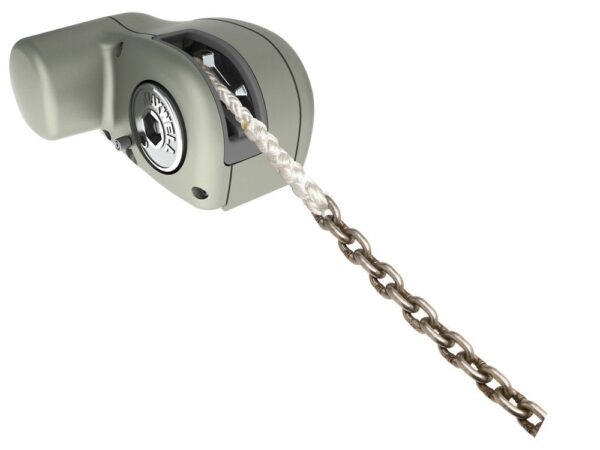

Maxwell HRCFF612V is the 12-volt HRCFF6 horizontal rope-and-chain windlass, built for automatic anchoring with a helm-operated free-fall function. The anchor can be released by gravity, then retrieved by the electric drive when it is time to leave.
The HRCFF6 is the 6 mm metric short-link chain version—not the HRCFF7 that accommodates 7 mm chain. Maxwell specifies a 12 mm rope, 600-watt 12V motor, up to 410 kg (900 lb) maximum pull and 700 kg (1540 lb) static hold. These are different measures and should not be read as the boat's safe working load.
Specifications
| Part number | HRCFF612V |
|---|---|
| Windlass model | HRCFF6 |
| Electrical | 12V DC, 600W |
| Short-link chain | 6 mm metric |
| Rope size | 12 mm |
| Maximum pull | 410 kg / 900 lb |
| Static hold | 700 kg / 1540 lb |
| Nominal retrieval speed | 33 m/min at 30 kg working load |
Compatibility and application
| Boat system | Suitable installations in the HRCFF range of approximately 5 to 11 m vessels, subject to rode, deck and electrical sizing |
|---|
Ordering and installation notes
Chain must be 6 mm metric short-link and rope must match the specified dimensions. Determine anchor rode, deck cut-out, wiring, protection and control requirements for the installation; anchor, chain and rope are not asserted to be included.
