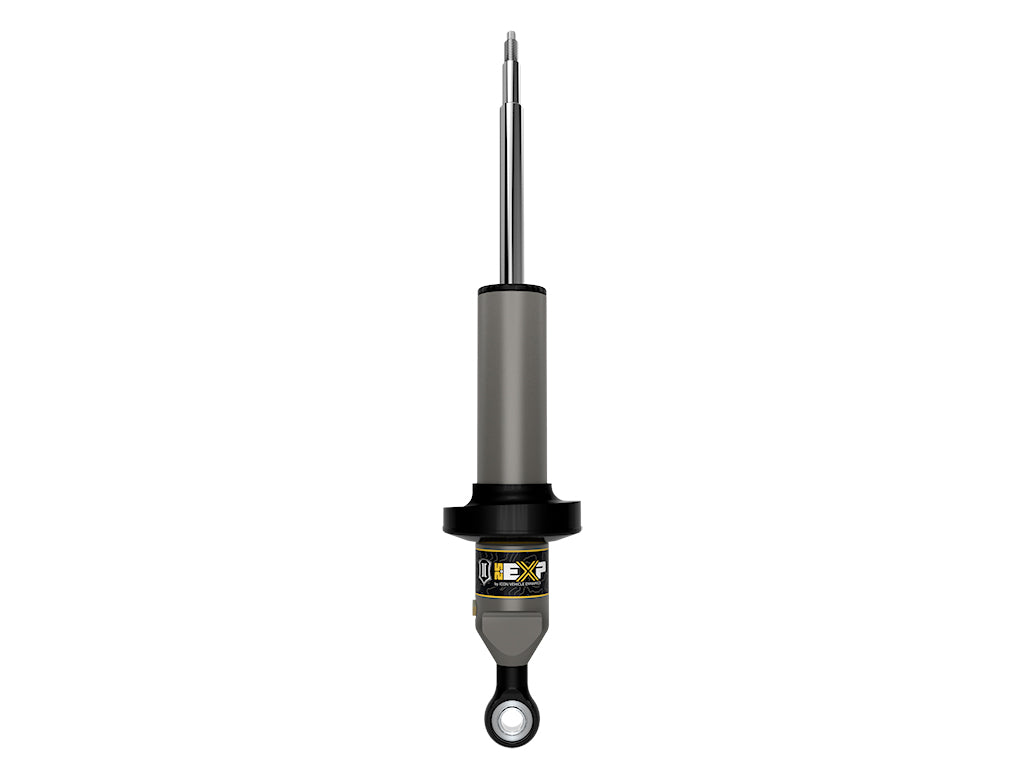

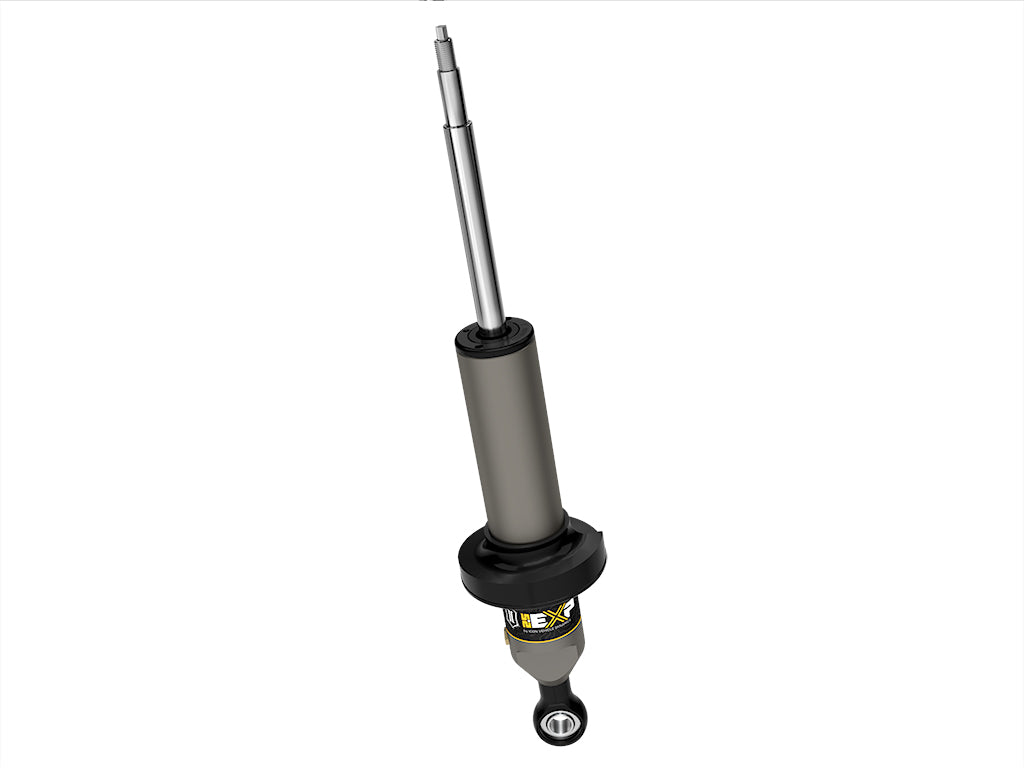

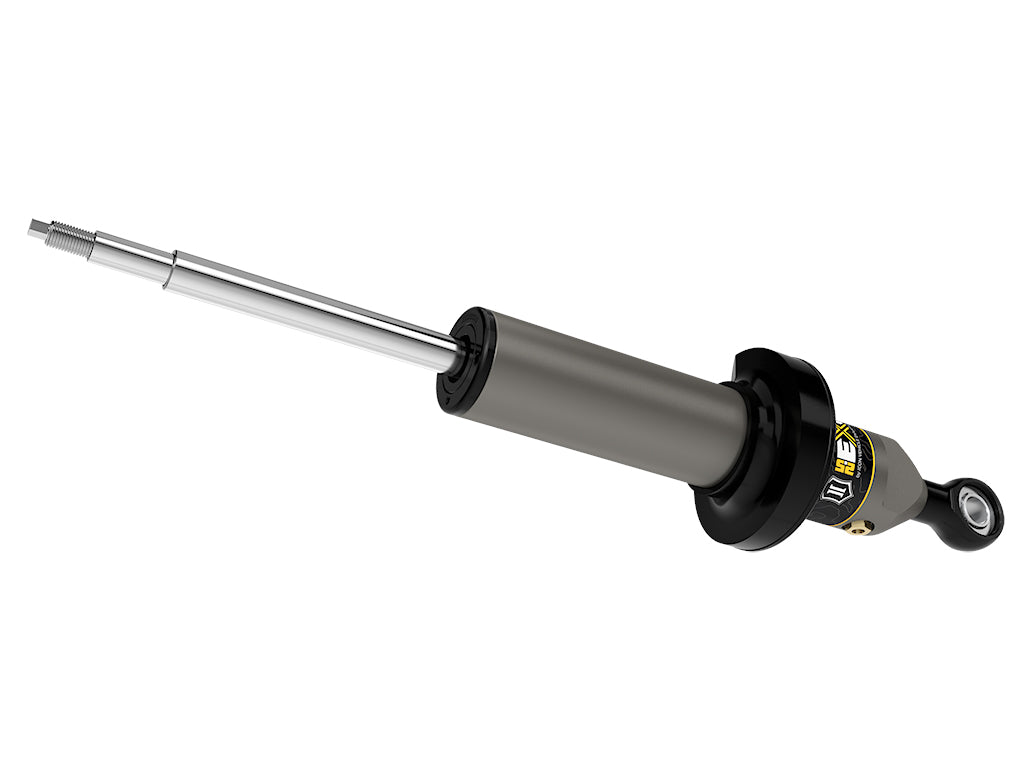

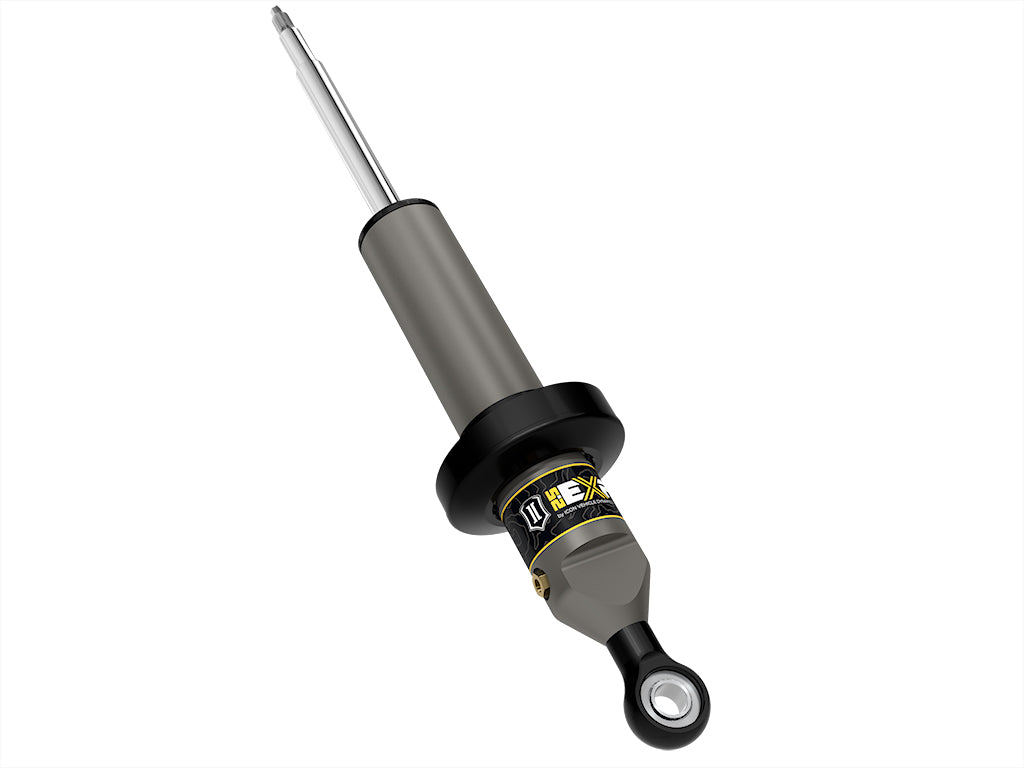

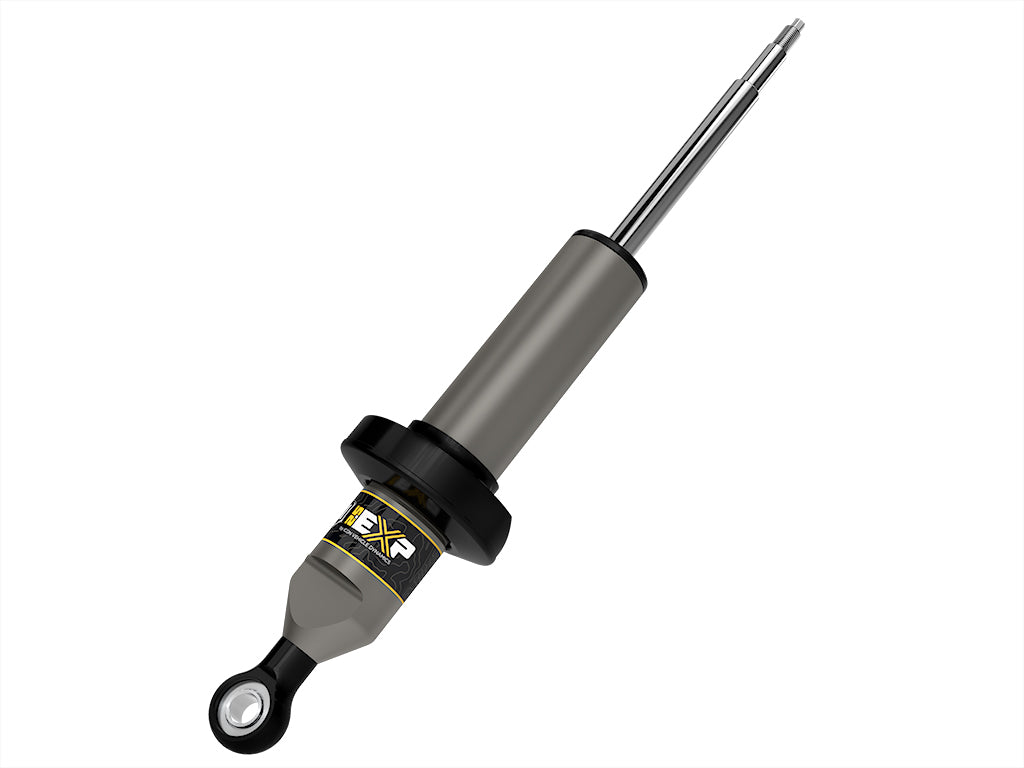

Icon Vehicle Dynamics 58671 EXP Front Stud Coilover Damper

Snap-ring grooves set front lift from zero to three inches, while the custom-tuned digressive piston works with the stock coil springs for damping control.

Application: Tundra, 22-up. Gas-charged EXP front stud coilover.

Features and Technical Details

• Source application: 2022 to 2023 Toyota Tundra front suspension.

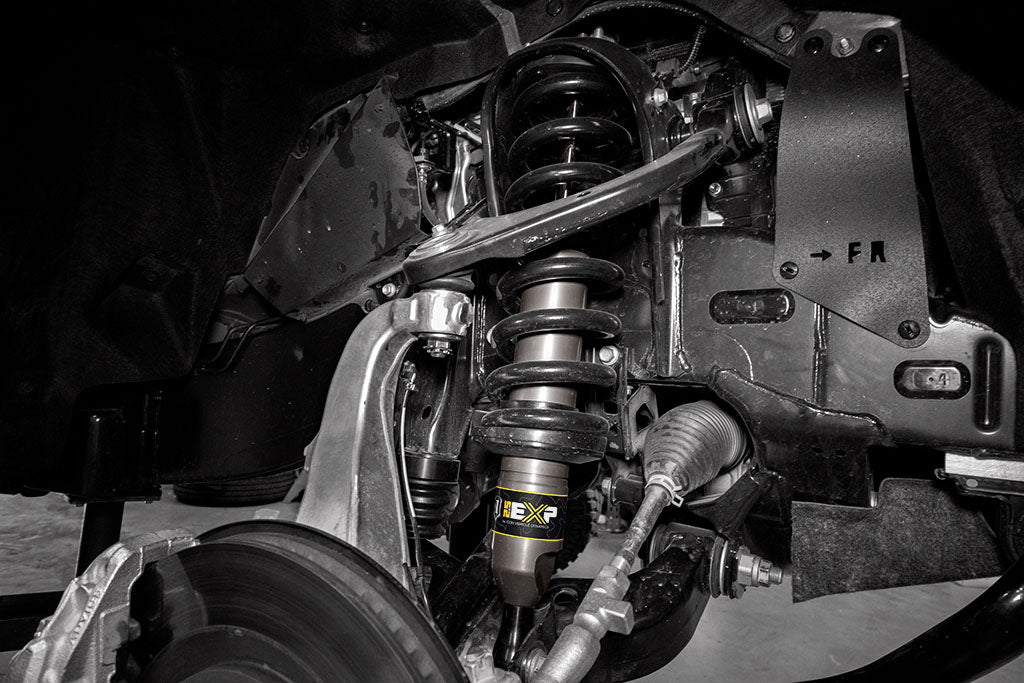

• The EXP design reuses the factory coil spring, coil hardware and upper shock and spring mounts in the OE shaft-up orientation.
• The CNC-machined 6061 billet aluminum spring seat accepts a molded heavy-duty urethane seat made for the OE coil spring.
• Snap-ring grooves select 0 to 3 inches of front lift over stock.
• A one-piece digressive piston is tuned specifically to the Tundra and its factory front coil springs.
• The 2.5-inch aluminum body increases piston size and oil volume over the smaller OE steel shocks, improving heat dissipation under prolonged high-speed and rough-terrain use.
• A qualified shock technician can rebuild and revalve the unit using parts available from ICON.
• Hard anodizing resists abrasion and corrosion on the one-piece impact-extruded body.
• CNC Machined 6061 Aluminum Components With A Black Anodized Finish
• PTFE Lined Spherical Bearing For Extended Longevity And Minimal Deflection
• Impact Extruded, Hard Anodized Aluminum Cylinder Offers Excellent Corrosion Resistance And Consistent Finish
• Inverted Shaft Up Design Featuring 7/8 Inch Diameter, Induction Hardened, Chrome Plated Shaft
• Vehicle Specific Tuned For Superior Shock Damping And Control
• 2.5 Aluminum Series Shock With Internal Reservoir
• Utilizes Factory Coil And Coil Hardware
• Adjustable Ride Heights From 0 To 3 Inch Of Front Lift Over Stock With The Use Of Snap Ring
• Fully Rebuildable And Re-Tunable
• Limited 1 Year Warranty
