Description

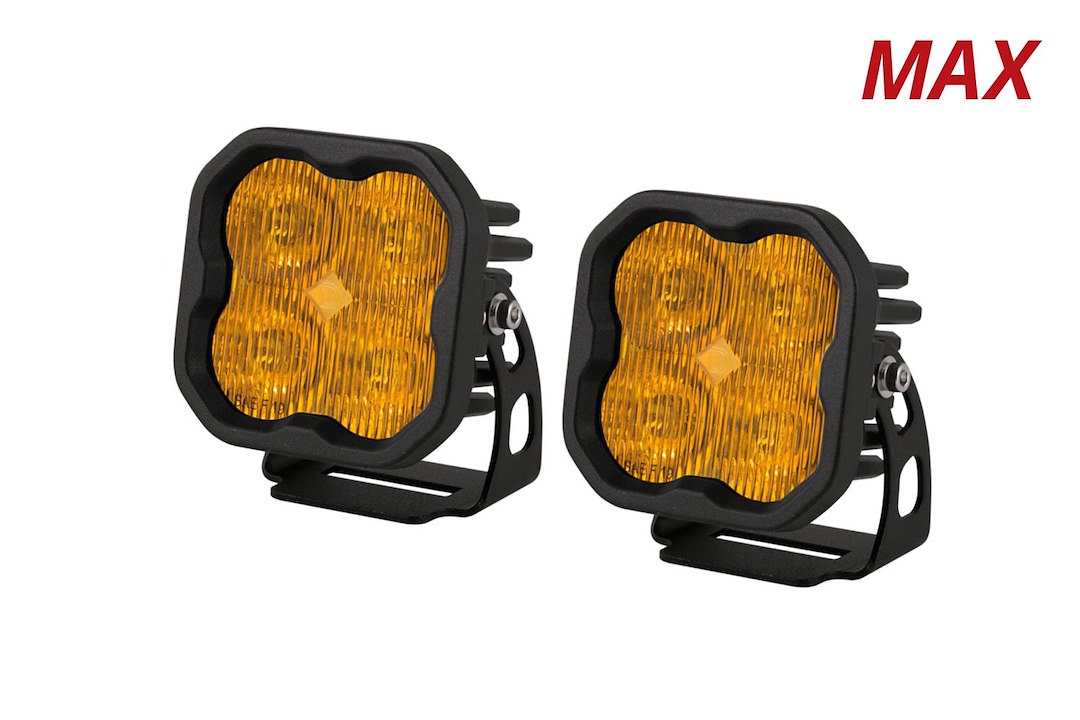

The main lens and beam-shaping optic are combined in the patent-pending molded TIR design of these SS3 Max pods. This arrangement limits glare and losses through a separate outer optical layer while directing amber fog illumination from the Osram Boost HX LEDs.
The square pods have black aluminum housings and polycarbonate lenses, with listed output of 7,920 lumens at 38.5 watts. The SS3 Max platform uses 20-watt emitters and is described as reaching up to 251,000 candela with illumination beyond a kilometer. Two Deutsch-style pigtails, bolt-on mounting brackets and hardware are included.
Fitment declaration
Universal fitment is specified; installation may call for customization.
Specifications
| Estimated Install Time (Hours) | 1.5 |
| Voltage Rating | 12.8 Volt |

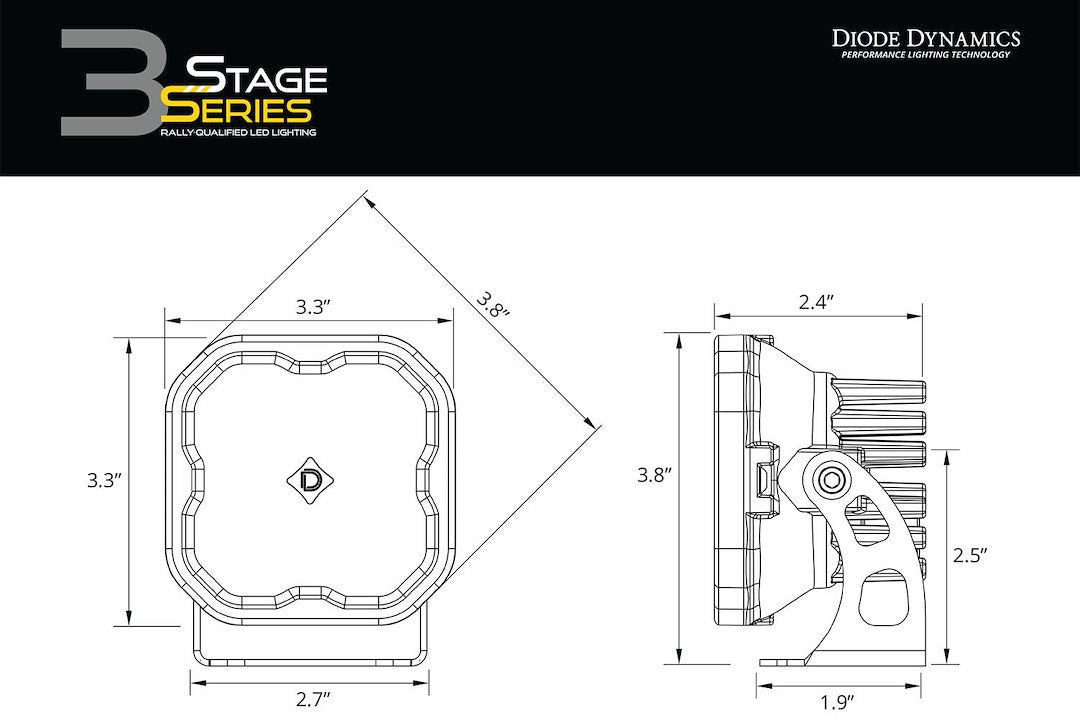

| Depth | 2-7/16 Inch |
| Ampere Rating At 12 Volts | 3 Amp |
| Height/ Width | 3-5/16 Inch Height X 3-5/16 Inch Width |
| Wattage | 38.5 Watt |
| Lumens | 7920 Lumens |
| Housing Material | Aluminum |
| Light Color | Amber |
| Housing Color | Black |
| Mounting Style | Bolt-On |
| Beam Type | Fog Beam |
| Universality | Fully Universal |
| Bulb Type | LED |
| Diameter | Not Applicable |
| Bulb Specifications | Osram Boost HX LED Bulbs |
| Lens Material | Polycarbonate |
| Quantity | Set Of 2 |
| Shape | Square |

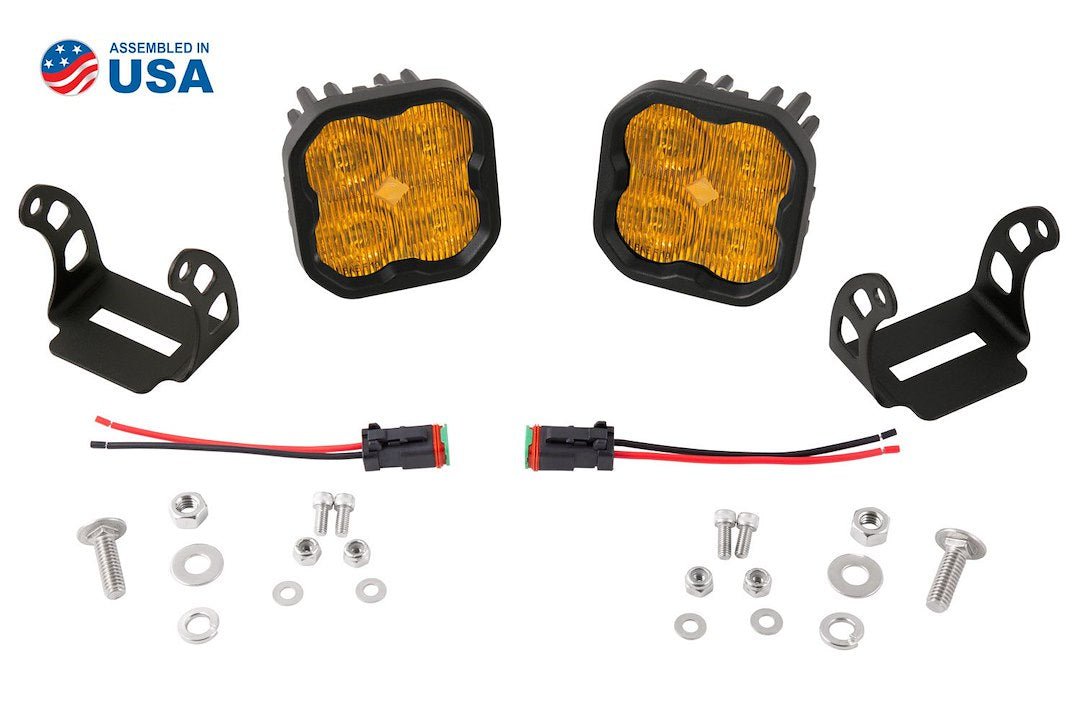

| Includes | With Two Deutsch-Style Wire Pigtails/ Two Mounting Brackets/ Hardware |
