Description

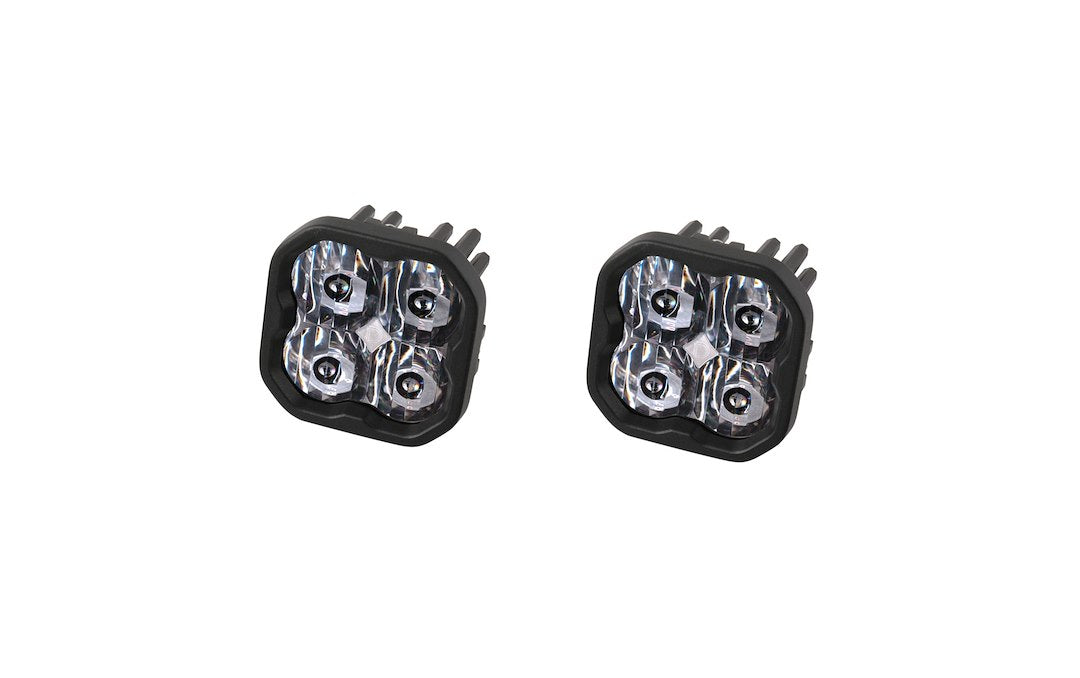

The optic also serves as the main lens in this SS3 Sport pod design, reducing the losses associated with a separate outer optical layer. Luxeon Z ES emitters produce the specified white SAE driving beam at 2,262 lumens.
Two square pods are supplied, measuring 3.3 × 3.3 inches and 2.4 inches deep. Black powder-coated aluminum surrounds the polycarbonate lenses and integrated Deutsch-style connections. A wire pigtail and hardware are included for stud mounting.
Ratings are 14.5 watts, 12.8 volts and 1.1 amps at 12 volts; installation is estimated at 1.5 hours. Engineered and assembled in the USA. Limited 8 Year Warranty.
Fitment declaration
Universal fitment is specified; installation may call for customization.
Specifications
| Bulb Type | LED |
| Shape | Square |
| Diameter | Not Applicable |
| Height/ Width | 3.3 Inch Height X 3.3 Inch Width |
| Depth | 2.4 Inch |
| Light Color | White |
| Wattage | 14.5 Watt |
| Voltage Rating | 12.8 Volt |
| Mounting Style | Stud Mount |
| Quantity | Set Of 2 |
| Ampere Rating At 12 Volts | 1.1 Amp |
| Lumens | 2262 Lumens |
| Bulb Specifications | White Luxeon Z ES LED Bulb |
| Lens Material | Polycarbonate |
| Housing Color | Black |
| Housing Material | Aluminum |
| Includes | Deutsch-Style Wire Pigtail And Mounting Hardware |
| Estimated Install Time (Hours) | 1.5 |
