Description

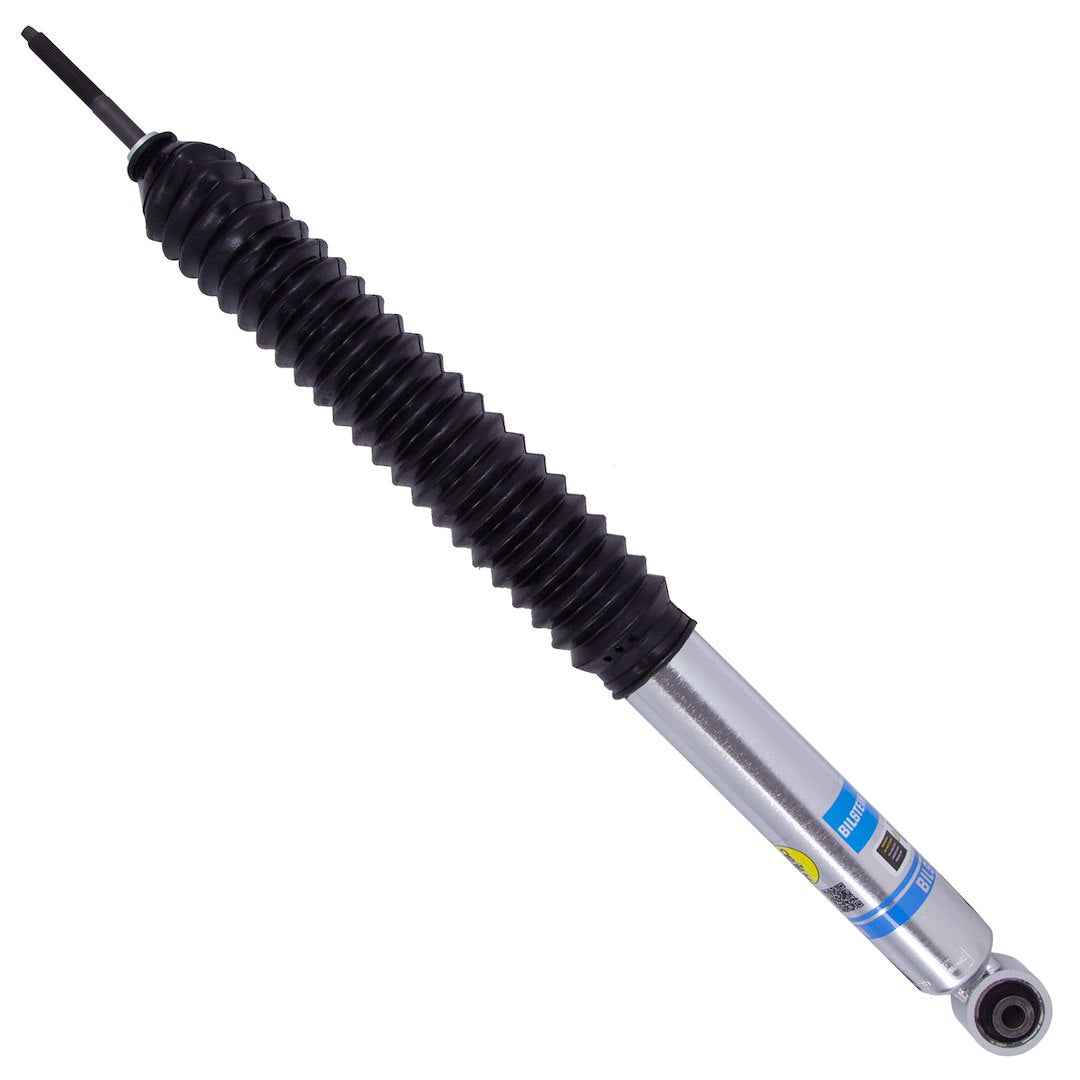

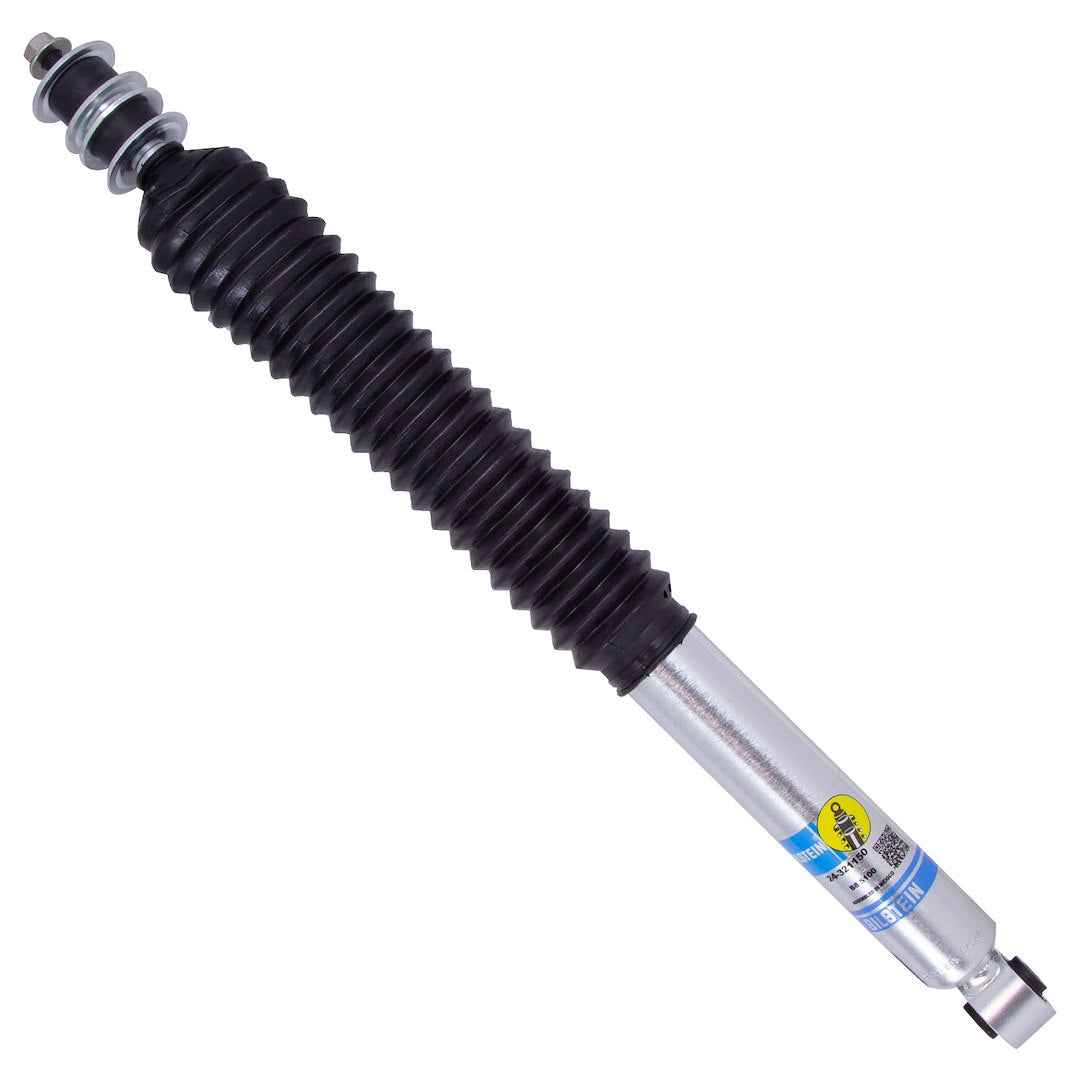

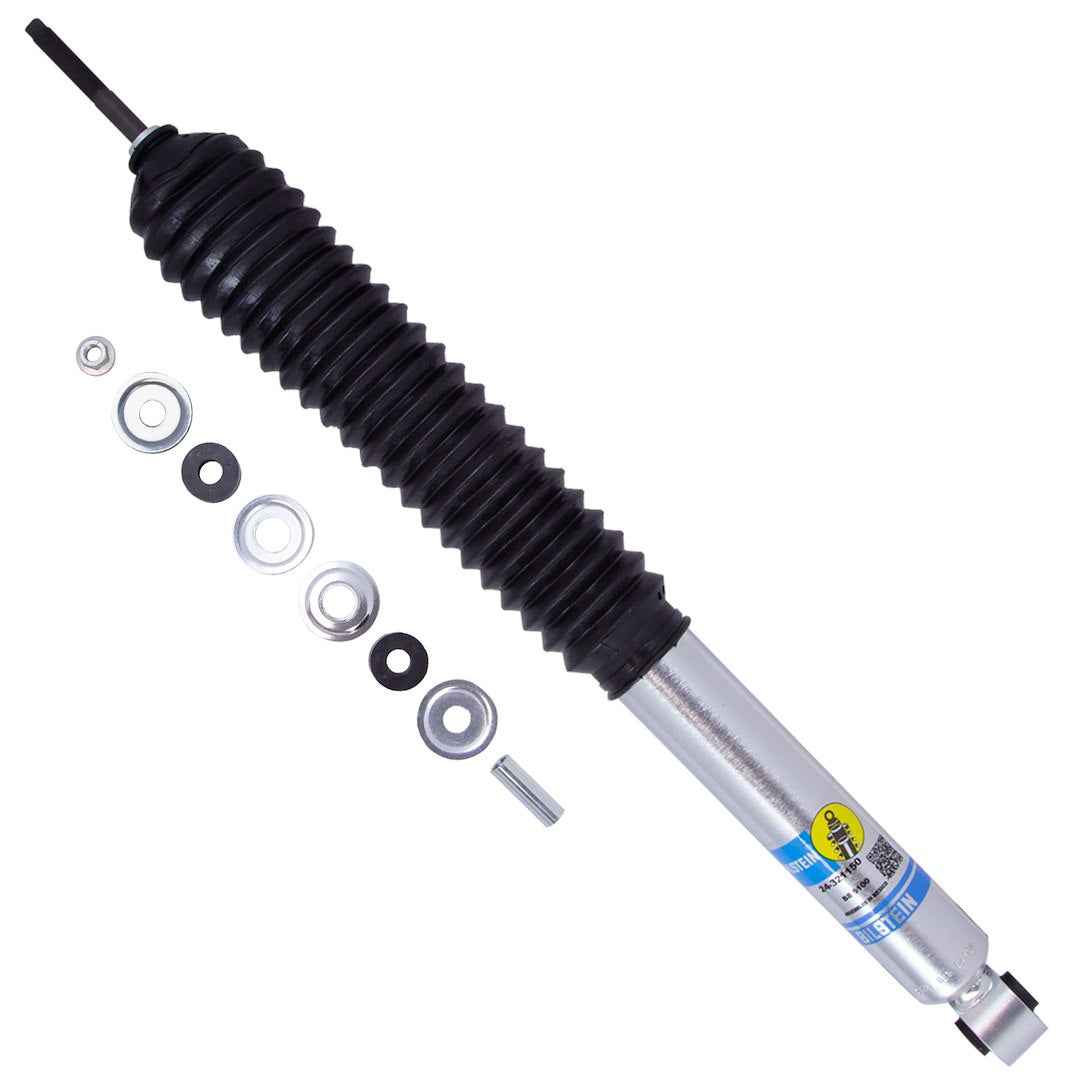

Toyota Tundra fitment is designated from 2007 for matching 2WD and 4WD configurations. Silver steel B8 5100 construction uses fixed nitrogen valving and upper-stud/lower-eyelet mounts. A boot is included, with lengths of 15.33 inches compressed and 24.8 inches extended.
Compatibility
Match the Tundra year, drivetrain and cab configuration. Applicable rear configurations span 2007–2021.
Bilstein 24321150: vehicle compatibility
Check the listed years and configurations for Toyota Tundra when selecting Bilstein 24321150. A blank detail does not confirm additional configurations.
| Model years | Vehicle application | Required configuration |
|---|---|---|
| 2007–2015, 2018, 2020 | Toyota Tundra | Body: Crew Max; Drivetrain: Four Wheel Drive |
| 2007–2015, 2018, 2020 | Toyota Tundra | Body: Double Cab; Drivetrain: Four Wheel Drive |
| 2007–2015 | Toyota Tundra | Body: Standard Cab; Drivetrain: Four Wheel Drive |
| 2007–2015, 2018, 2020 | Toyota Tundra | Drivetrain: Rear Wheel Drive |
| 2016–2017, 2019, 2021 | Toyota Tundra | Body: Crew Max; Drivetrain: Four Wheel Drive; Submodel: Limited |
| 2016–2017, 2019, 2021 | Toyota Tundra | Body: Crew Max; Drivetrain: Four Wheel Drive; Submodel: SR5 |
| 2016–2017, 2019, 2021 | Toyota Tundra | Body: Crew Max; Submodel: TRD Pro |
| 2016–2017, 2019, 2021 | Toyota Tundra | Body: Double Cab; Drivetrain: Four Wheel Drive; Submodel: Limited |
| 2016–2017, 2019, 2021 | Toyota Tundra | Body: Double Cab; Drivetrain: Four Wheel Drive; Submodel: SR5 |
| 2016–2017, 2019, 2021 | Toyota Tundra | Body: Double Cab; Submodel: TRD Pro |
| 2016–2017, 2019, 2021 | Toyota Tundra | Drivetrain: Four Wheel Drive; Submodel: SR |
| 2016–2017, 2019, 2021 | Toyota Tundra | Drivetrain: Rear Wheel Drive; Submodel: Limited |
| 2016–2017, 2019, 2021 | Toyota Tundra | Drivetrain: Rear Wheel Drive; Submodel: SR |
| 2016–2017, 2019, 2021 | Toyota Tundra | Drivetrain: Rear Wheel Drive; Submodel: SR5 |
| 2016–2017 | Toyota Tundra | Submodel: 1794 Edition |
| 2016–2017 | Toyota Tundra | Submodel: Platinum |
| 2019, 2021 | Toyota Tundra | Drivetrain: Four Wheel Drive; Submodel: 1794 Edition |
| 2019, 2021 | Toyota Tundra | Drivetrain: Four Wheel Drive; Submodel: Platinum |
| 2019, 2021 | Toyota Tundra | Drivetrain: Rear Wheel Drive; Submodel: 1794 Edition |
| 2019, 2021 | Toyota Tundra | Drivetrain: Rear Wheel Drive; Submodel: Platinum |
| 2021 | Toyota Tundra | Body: Crew Max; Drivetrain: Four Wheel Drive; Submodel: Nightshade |
| 2021 | Toyota Tundra | Body: Double Cab; Drivetrain: Four Wheel Drive; Submodel: Nightshade |
| 2021 | Toyota Tundra | Drivetrain: Four Wheel Drive; Submodel: Trail |
| 2021 | Toyota Tundra | Drivetrain: Rear Wheel Drive; Submodel: Nightshade |
| 2021 | Toyota Tundra | Drivetrain: Rear Wheel Drive; Submodel: Trail |
Specifications
| Type | Nitrogen Gas Charged |
| With Coil Spring | No |
| Internal Design | Monotube |
| Adjustable Valving | No |
| Extended Length (IN) | 24.8 Inch |
| Compressed Length (IN) | 15.33 Inch |
| Upper Mounting Style | Stud |
| Lower Mounting Style | Eyelet |
| Body Color | Silver |
| Quantity | Single |
| Valving Type | Non Adjustable Valving |
| Rod Material | Steel |
| Body Material | Steel |
| With Reservoir | No |
| Includes Dust Shield | No |

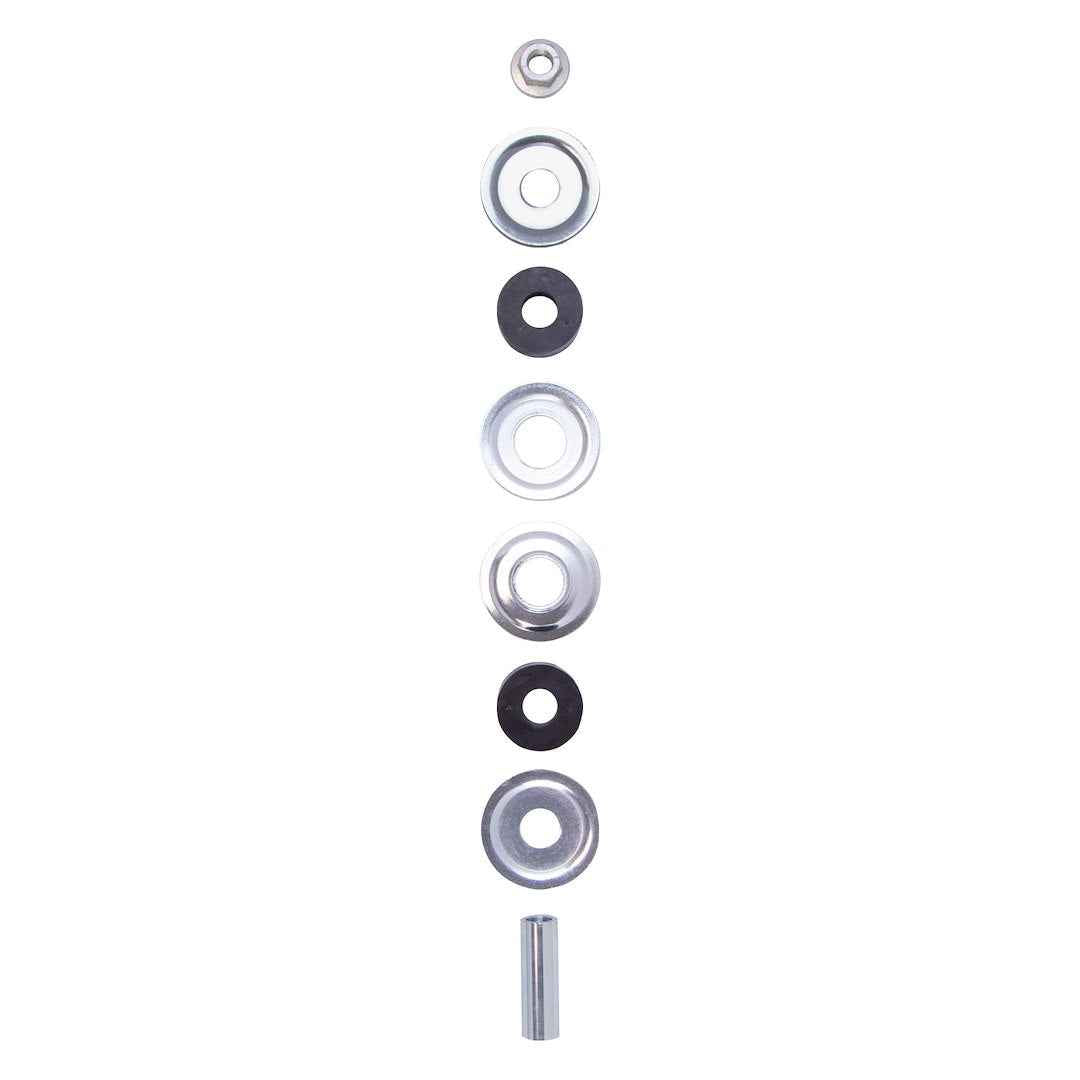

| Includes Hardware | No |
| Includes Boot | Yes |
| Estimated Install Time (Hours) | 0.5 |
