Description

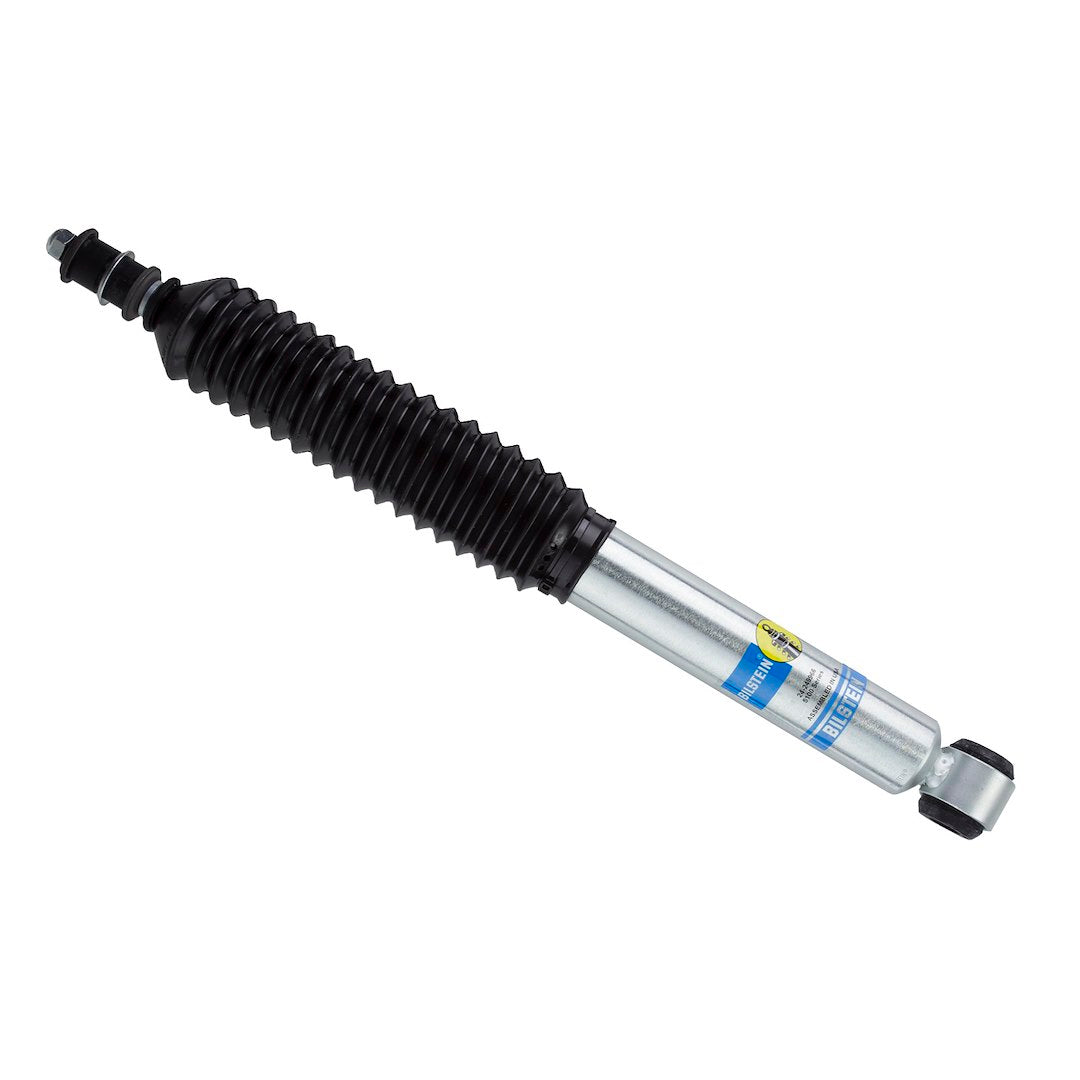

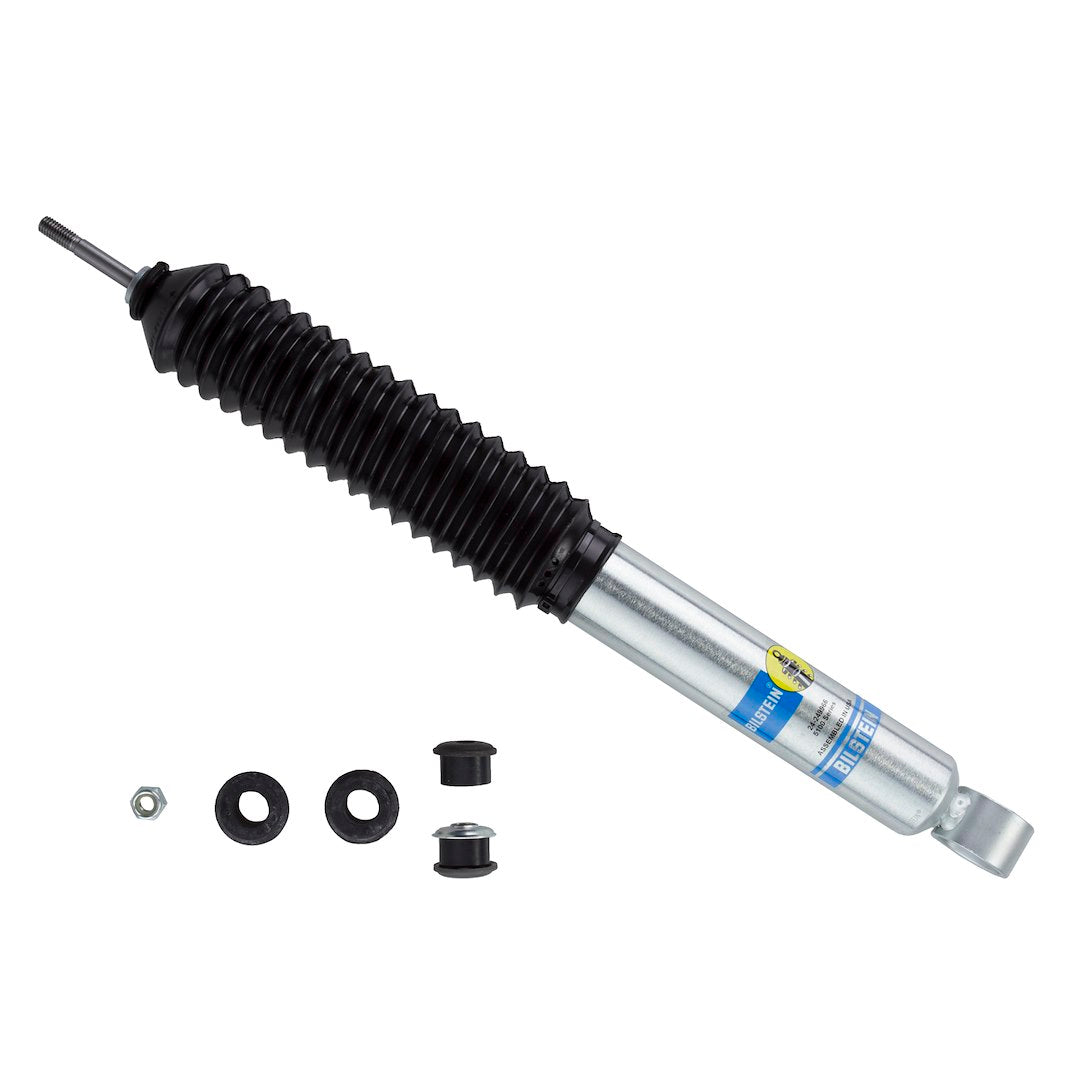

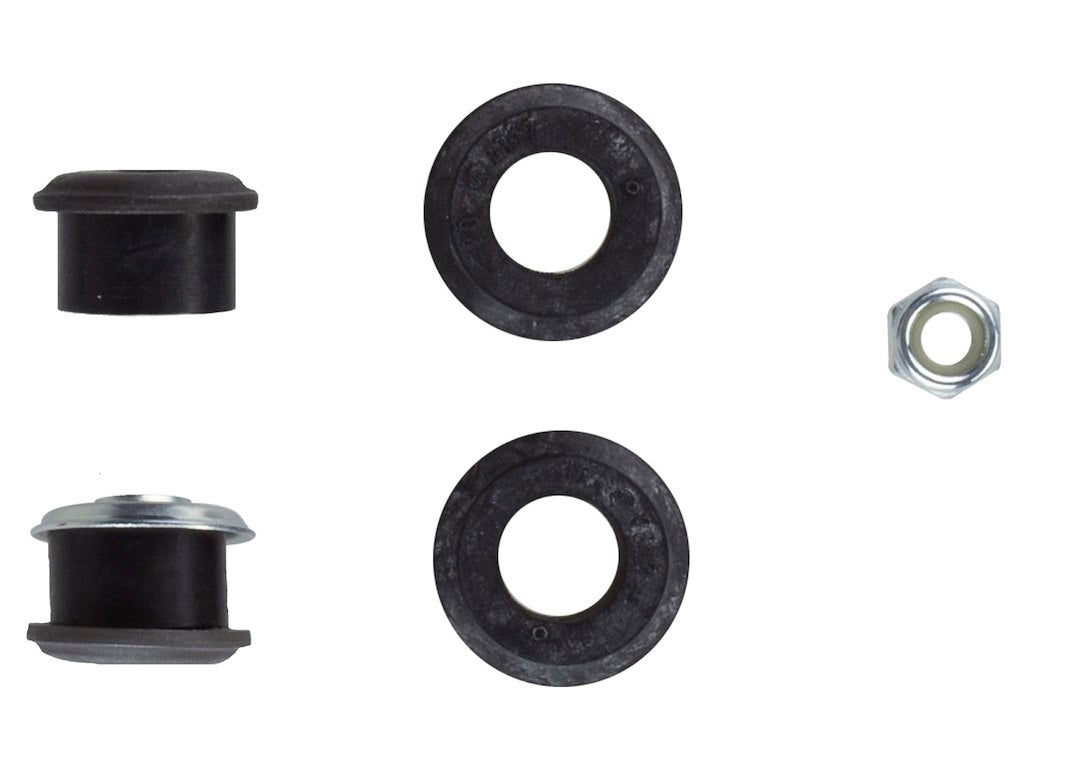

Hydraulic damping and self-adjusting deflective-disc valving equip this silver B8 5100; the valving is not manually adjustable. Stud/eyelet attachment, a zinc-plated 0.55-inch steel rod, boot and hardware are specified. The single shock measures 12.91 inches compressed and 20.79 inches extended; check the exact 4Runner configurations below.
Vehicle applications
Match the year, model and configuration details shown for the application. Blank fields do not establish compatibility with additional configurations.
| Model years | Vehicle application | Required configuration |
|---|---|---|
| 1996 | Toyota 4Runner | Drivetrain: Four Wheel Drive; Engine: L4; 2.7L/2694; GAS; MFI |
| 1996 | Toyota 4Runner | Drivetrain: Four Wheel Drive; Engine: V6; 3.4L/3378; GAS; MFI |
| 1996 | Toyota 4Runner | Drivetrain: Rear Wheel Drive; Engine: L4; 2.7L/2694; GAS; MFI |
| 1996 | Toyota 4Runner | Drivetrain: Rear Wheel Drive; Engine: V6; 3.4L/3378; GAS; MFI |
| 1997–2000 | Toyota 4Runner | Drivetrain: Four Wheel Drive; Submodel: Base |
| 1997–2000 | Toyota 4Runner | Drivetrain: Four Wheel Drive; Submodel: Limited |
| 1997–2000 | Toyota 4Runner | Drivetrain: Four Wheel Drive; Submodel: SR5 |
| 1997–2000 | Toyota 4Runner | Drivetrain: Rear Wheel Drive; Submodel: Base |
| 1997–2000 | Toyota 4Runner | Drivetrain: Rear Wheel Drive; Submodel: Limited |
| 1997–2000 | Toyota 4Runner | Drivetrain: Rear Wheel Drive; Submodel: SR5 |
| 2001–2002 | Toyota 4Runner | Drivetrain: Four Wheel Drive |
| 2001–2002 | Toyota 4Runner | Drivetrain: Rear Wheel Drive |
Specifications
| Type | Hydraulic |
| With Coil Spring | No |
| Internal Design | Monotube |
| Adjustable | No |
| Extended Length (IN) | 20.79 Inch |
| Compressed Length (IN) | 12.91 Inch |
| Upper Mounting Style | Stud |
| Lower Mounting Style | Eyelet |
| Body Color | Silver |
| Quantity | Single |
| Rod Diameter (IN) | 0.55 Inch |
| Valving Type | Self-Adjusting Deflective Disc Valving |
| Rod Finish | Zinc Plated |
| Rod Material | Steel |
| Body Material | Steel |
| With Reservoir | No |
| Includes Dust Shield | No |
| Includes Hardware | Yes |
| Includes Boot | Yes |
| Estimated Install Time (Hours) | 0.5 |
