Description

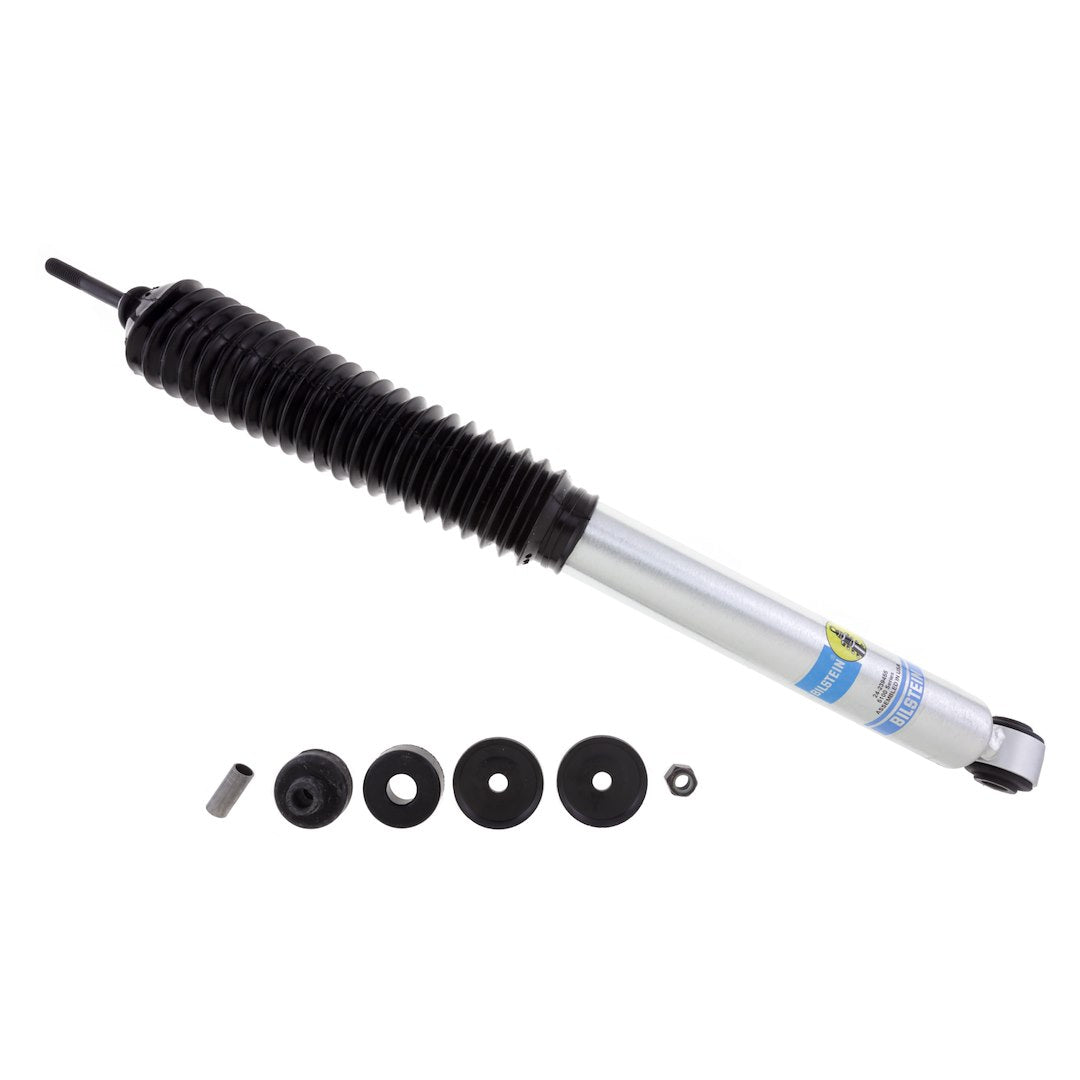

A polished 0.55-inch rod, boot and hardware accompany this single rear B8 5100. The 2014 Ram 2500 designation remains subject to the detailed applications below. Silver nitrogen-monotube construction uses stud/eyelet mounts and 16.73-inch compressed/24.96-inch extended lengths.
Vehicle applications
Match the year, model and configuration details shown for the application. Blank fields do not establish compatibility with additional configurations.
| Model years | Vehicle application | Required configuration |
|---|---|---|
| 2014–2018 | Ram 2500 | Drivetrain: Four Wheel Drive; Submodel: Big Horn |
| 2014–2015 | Ram 2500 | Drivetrain: Four Wheel Drive; Submodel: Laramie Limited |
| 2014–2018 | Ram 2500 | Drivetrain: Four Wheel Drive; Submodel: Laramie Longhorn |
| 2014–2018 | Ram 2500 | Drivetrain: Four Wheel Drive; Submodel: Laramie |
| 2014–2015 | Ram 2500 | Drivetrain: Four Wheel Drive; Submodel: Lone Star |
| 2014–2018 | Ram 2500 | Drivetrain: Four Wheel Drive; Submodel: SLT |
| 2014–2018 | Ram 2500 | Drivetrain: Four Wheel Drive; Submodel: Tradesman |
| 2014–2016 | Ram 2500 | Submodel: Outdoorsman |
| 2014–2018 | Ram 2500 | Submodel: Power Wagon |
| 2016–2018 | Ram 2500 | Drivetrain: Four Wheel Drive; Submodel: Limited |
Specifications
| Type | Nitrogen Gas Charged |
| With Coil Spring | No |
| Internal Design | Monotube |
| Adjustable | No |
| Extended Length (IN) | 24.96 Inch |
| Compressed Length (IN) | 16.73 Inch |
| Upper Mounting Style | Stud |
| Lower Mounting Style | Eyelet |
| Body Color | Silver |
| Quantity | Single |
| Rod Diameter (IN) | 0.55 Inch |
| Valving Type | Self-Adjusting Deflective Disc Valving |
| Rod Finish | Polished |
| Rod Material | Steel |
| Body Material | Steel |
| With Reservoir | No |
| Includes Dust Shield | No |
| Includes Hardware | Yes |
| Includes Boot | Yes |
| Estimated Install Time (Hours) | 0.5 |
