Description

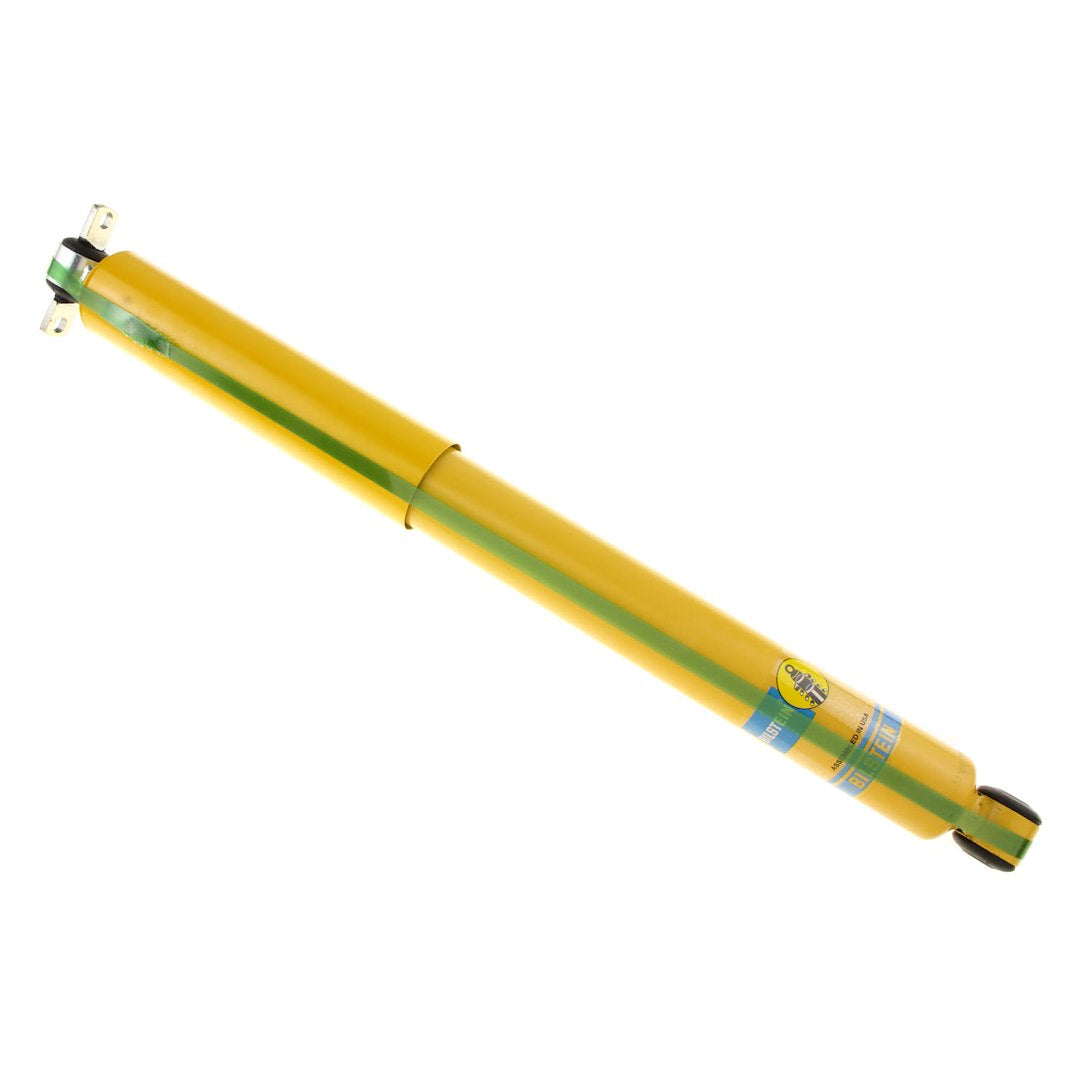

For the specified 4WD Excursion configurations, this yellow 4600 shock uses an upper cross pin and lower eyelet. Nitrogen charging equips the monotube design. It measures 17.11 inches compressed or 28.07 inches extended, and is supplied individually with a boot but without hardware.
Vehicle applications
Match the year, model and configuration details shown for the application. Blank fields do not establish compatibility with additional configurations.
| Year | Make | Model | Drivetrain | Additional attributes |
|---|---|---|---|---|
| 2000 | Ford | Excursion | Four Wheel Drive | Drive Type: Four Wheel Drive |
| 2001 | Ford | Excursion | Four Wheel Drive | Drive Type: Four Wheel Drive |
| 2002 | Ford | Excursion | Four Wheel Drive | Drive Type: Four Wheel Drive |
| 2003 | Ford | Excursion | Four Wheel Drive | Drive Type: Four Wheel Drive |
| 2004 | Ford | Excursion | Four Wheel Drive | Drive Type: Four Wheel Drive |
| 2005 | Ford | Excursion | Four Wheel Drive | Drive Type: Four Wheel Drive |
Specifications
| Type | Nitrogen Gas Charged |
| With Coil Spring | No |
| Internal Design | Monotube |
| Adjustable Valving | No |
| Adjustable | No |
| Extended Length (IN) | 28.07 Inch |
| Compressed Length (IN) | 17.11 Inch |
| Upper Mounting Style | Cross Pin |
| Lower Mounting Style | Eyelet |
| Body Color | Yellow |
| Quantity | Single |
| Rod Diameter (IN) | 0.55 Inch |
| Valving Type | Deflective Disc Valving |
| Rod Finish | Polished |
| Rod Material | Steel |
| Body Material | Steel |
| With Reservoir | No |
| Includes Dust Shield | No |
| Includes Hardware | No |
| Includes Boot | Yes |
| Estimated Install Time (Hours) | 0.5 |
