Description
An LED-bulb diode wiring kit for a towed vehicle — Roadmaster part 152789.
Jeep LED and ParkSense application
Roadmaster 152789 is the specialized flat-towing wiring kit for compatible Jeep models with LED taillights, multiplex wiring and ParkSense proximity sensors. Roadmaster warns that ordinary diodes can energize Jeep electronics while towing on certain ParkSense-equipped vehicles and discharge the battery. Use Roadmaster Fitmaster and installation instructions to confirm the exact year, model, bulb type and equipment; a Jeep model-year listing alone does not establish compatibility.

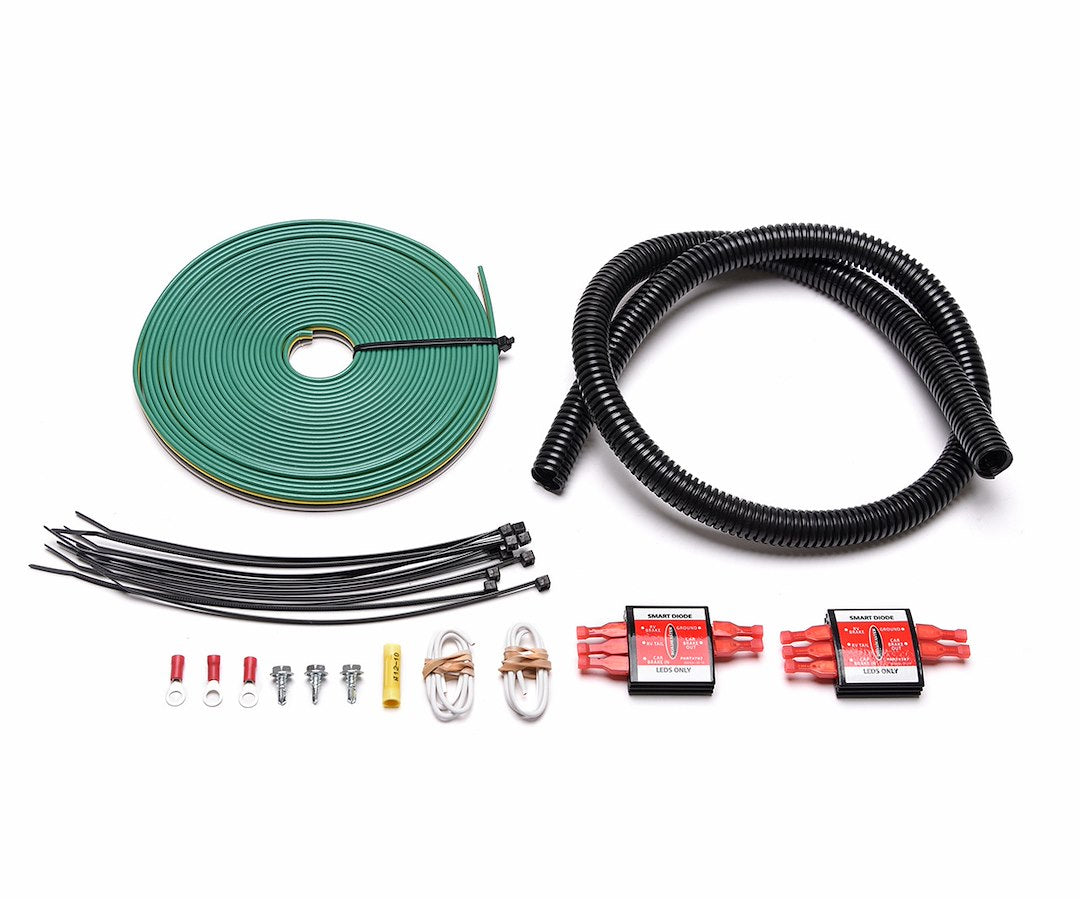

Kit contents and wiring
- Two Smart Diodes for LED-bulb applications, rated at 85 amps each
- 27-foot, 16-gauge four-wire flat harness running from the towed vehicle's front to its taillights
- Terminals, wire ties, split loom and installation hardware
- Separate motorhome-to-towed-vehicle power cord is not included
The Smart Diodes reduce electrical backfeed and modulate variable-voltage signals so the towed vehicle displays the intended brake, tail and turn functions. Follow the Jeep-specific Roadmaster 152789 wiring procedure rather than the instructions for generic diodes.
- Diodes are included to connect the towed vehicle lighting to the motorhome wiring.
- See the vehicle applications below for model-year fitment.
Key Features
- To Prevent the Backflow of Current to the Electrical System of the Towed Vehicle or Motorhome.
- For Towed Vehicle Diode LED Bulbs.
- Correctly Modulate the Voltage to Activate Only the Intended Circuit.
- Hands-On Design and Manufacturing.
- Limited 1 Year Warranty.
Specifications
| Type | Towed Vehicle Diode For LED Bulbs |
|---|
Vehicle Applications
- 2021 Jeep Wrangler JL
- 2022 Jeep Wrangler JL
- 2023 Jeep Wrangler JL
- 2024 Jeep Wrangler JL
- 2025 Jeep Wrangler JL
- 2026 Jeep Wrangler
Package Contents & Exclusions
| Includes Diodes | Yes |
|---|
Part Identification
| Brand | Roadmaster |
|---|---|
| Manufacturer Part Number | 152789 |
Installation Notes
| Estimated Install Time (Hours) | 2 |
|---|
Installation & Product Notes
- Each vehicle requires two Smart Diodes.
