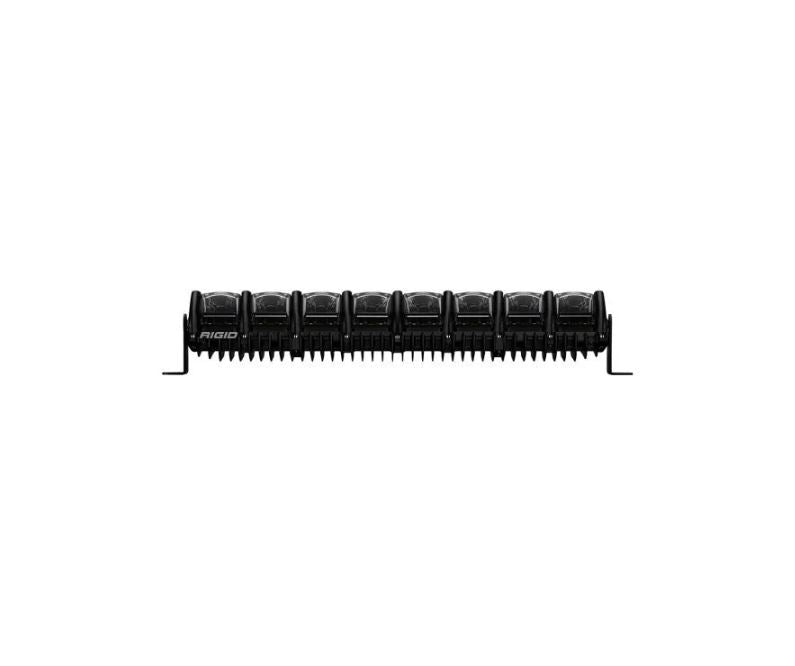

A 20-inch ADAPT light bar with eight selectable beam patterns from 15 to 90 degrees — Rigid Lighting part 220413.
- Active View can change the beam with vehicle speed when the required ADAPT GPS module is installed.
Key Features
- Active View Technology - Automatically Change Beam Patterns Based on Vehicle Speed (Adapt GPS Module Required).
- 8 Selectable Beam Patterns from 15-Degrees to 90-Degrees.
- Integrated Optic Design with Spot, Flood, and Driving Zones.
- Selectable RGB-W Accent Lighting – Choose from Any Color in the Light Spectrum.
- Back Lit Molded Dash Controller - Enables User to Select Mode, Accent Color, Adaptive Mode, and Select Between 2 User Presets.
- 2 User Presets – Preset Both Beam Pattern Mode and Accent Lighting Colors.
- Multiple Mounting Locations; Traditional Side Mounting or Underside Low-Profile Mount.
- Limited 10 Year Warranty.
- Adapt offers 8 selectable beam patterns that range from a 90 Degree broad short-distance beam to a highly focused 15 Degree long-distance spot beam in a single fixture.
- It also includes RIGID’s new Active View™ Technology, which allows the beam pattern to actively adjust with vehicle speed.
- Adaptive Mode utilizes the RIGID’s new Active View Technology, which automatically transitions through the Adapts 8 beam patterns based on vehicle speed.
Specifications
| Beam Type |
8 Selectable Beam |
| Beam Angle (Deg) |
15 To 90 Degree |
| Type |
Straight |
| Number of LEDs |
56 |
| Number Of Rows |
Single |
| Wattage |
138 To 187 Watt |
| Ampere Rating At 12 Volts |
9.8 To 13.4 Amp |
| Lens Material |
Polycarbonate |
| Housing Color |
Black |
| Mounting Style |
Universal Side Mount |

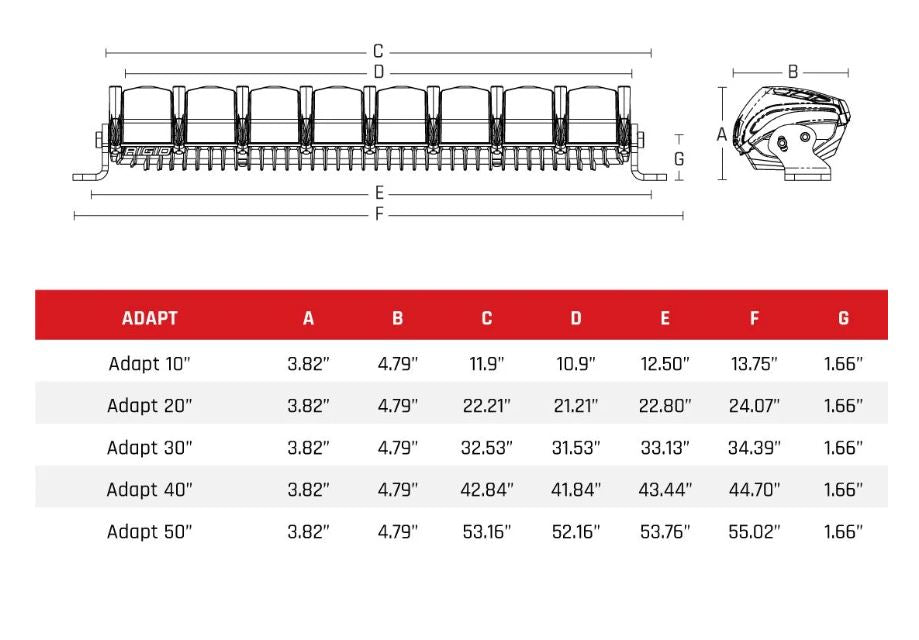

| Length (IN) |
20 in |
Package Contents & Exclusions
| Includes Mounting Hardware |
Yes |
Part Identification
| Brand |
Rigid Lighting |
| Manufacturer Part Number |
220413 |
Installation Notes
| Estimated Install Time (Hours) |
1.5 |
