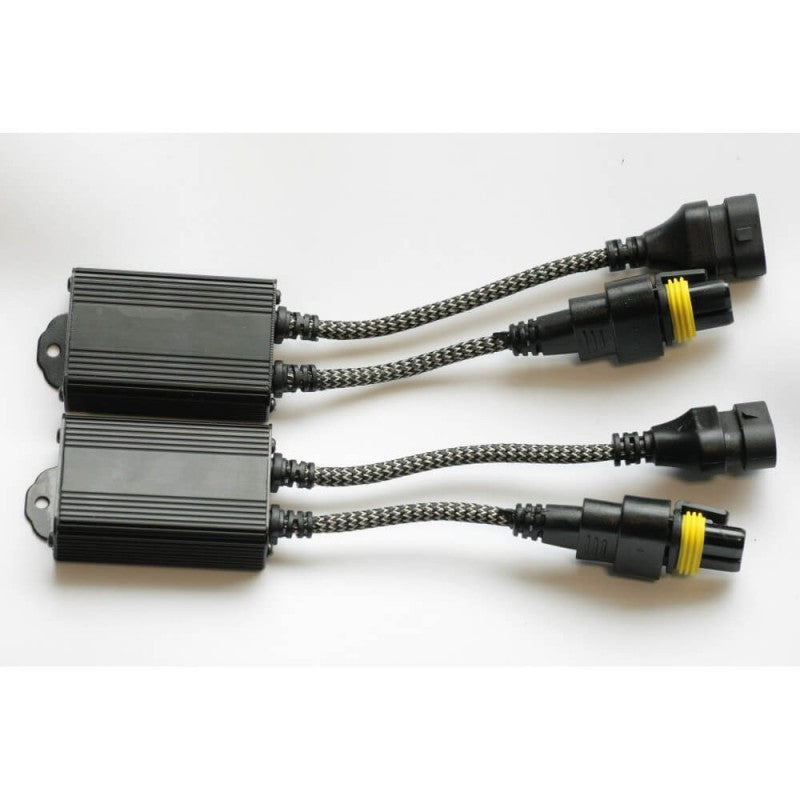

ODX Lighting DECO9004 9004/9007 Smart Headlight Decoder Pair

An 8-to-24-volt decoder circuit smooths computer-controlled power for the LEDs. Manufacturer-style connectors make installation straightforward.

Specifications

Features

• Allows Control Of The Manufacturer's Anomaly Detectors
• Allows To Stabilize Power From Car's Computer To The LED Bulb
• Stabilizes The Output Voltage To Plus Or Minus 2 Percent
• Operating Capacity Of 8 To 24 Volt DC In A Robust Water-Resistant Box Superior To IP68 Standards
• Identical Connectors To Those Used By Manufacturers Which Allows Quick And Easy Installation
• Limited 1 Year Warranty

Design details

• Pulsed current is frequently encountered in American vehicles such as Ram and Jeep; decoder requirements still depend on the specific vehicle and bulb application.
• The decoder smooths pulsed current from the vehicle computer to the LED bulb and supports bulb-fault monitoring. A 55-watt original bulb replaced by a 30-watt LED can register a 25-watt loss. This decoder adds 5 watts, bringing the circuit to 35 watts, but sensitive vehicles including Cherokee, 300, Charger and some Mercedes may still report a fault or shut down the lighting circuit after automatic checks. Those cases require capacitor relays with an add-a-circuit option and ODX 55-watt resistor sets.

Application details

• The DECO9004 smart decoder kit supports 9004 and 9007 headlights and comes in a box of two.
