Description

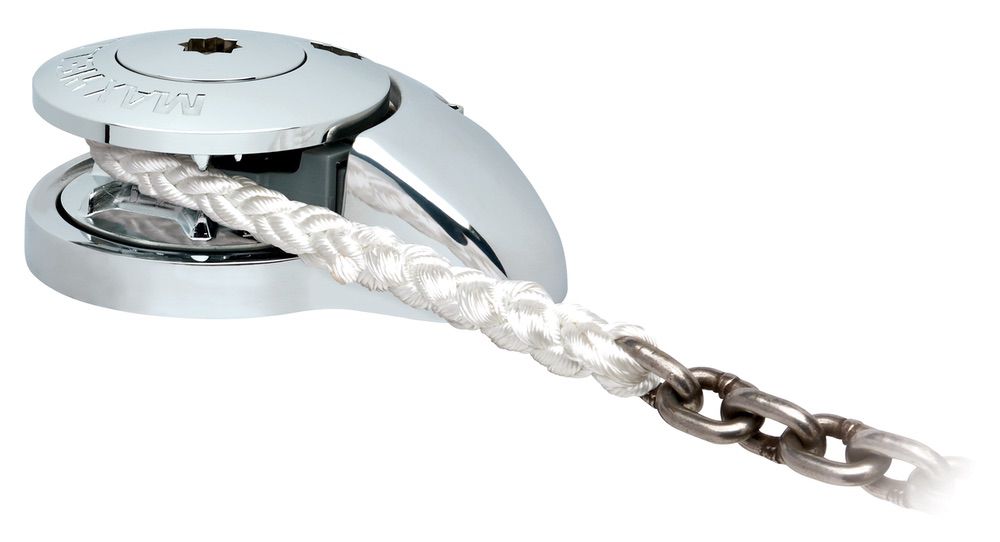

A Wave Design chainwheel accommodates pitch differences within the specified chain size. The cone clutch and brake allow manual free-fall anchoring.
Features
- RC8-8 uses8mm(5/16-inch) chain spliced to14mm(9/16-inch) three-strand or8-plait rope.
- Patented Wave Design chainwheel accommodates chain-pitch variation within the specified chain diameter.
- RC8/RC10 family offers low-profile and MAX-grip capstan versions; RC6 is low-profile only.
- Two-piece installation allows retrofit without disassembling the windlass; unique spacer tube and cone clutch/brake permit manual free fall.
- Topworks can be fully disassembled using supplied handle, screwdriver and Allen key.
- Marine-grade316 stainless steel and a heavy-duty stainless pressure arm with a large-wire preloaded spring maintain control pressure.
- Large through-deck hawse throat; sealed oil-bath hard-anodized marine-alloy gearbox with precision worm and worm wheel.
- Smaller RC8-6 family configuration uses6/7mm(1/4-inch) chain and12mm(1/2-inch) rope; this listing specifies RC8-8 sizes.
- The all new RC8-6 fully automatic rope/chain windlass is designed to effortlessly retrieve and deploy 6mm/7mm (1/4") chain spliced to 12mm (1/2") three strand or 8-plait rope
- The larger RC8-8 can be used with 8mm (5/16") chain spliced to 14mm (9/16") three strand or 8-plait rope
- The revolutionary, and patented, new Wave Design chainwheel is able to accommodate a wide range of chain pitch differences within the specified chain size diameters
- Sleek, low profile and MAX-grip capstan drum versions are available to suit individual user preference

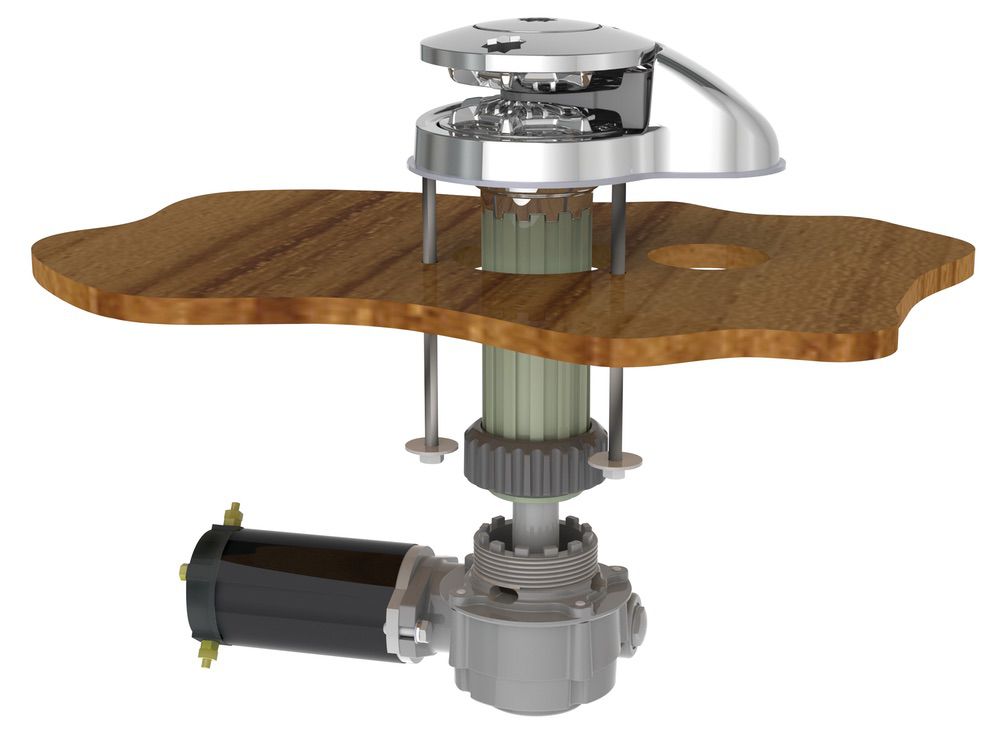

- Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass
- Unique spacer tube design; Cone type clutch/brake mechanism permits manual, free fall anchoring
- Full disassembly capability of top works utilising handle provided, a screw driver and an Allen key
- Manufactured from marine grade 316 stainless steel for long term durability; Heavy duty stainless steel pressure arm
- In combination with a heavy duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm always exerts maximum control pressure
- Huge through deck hawse pipe throat, Sealed oil bath and marine grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and worm wheel
Specifications
| Mount Type | Vertical, below deck motor |
|---|---|
| Maximum Pull | 1320 Pound |
| Maximum Line Speed | 105'/min chain; 92'/min rope |
| Size | Above Deck: 3.3''; Below Deck: 7.9''; Motor offset: 9.5''; Wt: 27.5 lbs.; Max deck thickness: 4'' |
| Chain/ Rope Size | 5/16'' chain; 9/16'' rope |
| Voltage Rating | 12 VDC |
| Motor Power | 1000 Watt |
Additional product details
The unit operates on 12 volts and is rated at 1,320 pounds.
