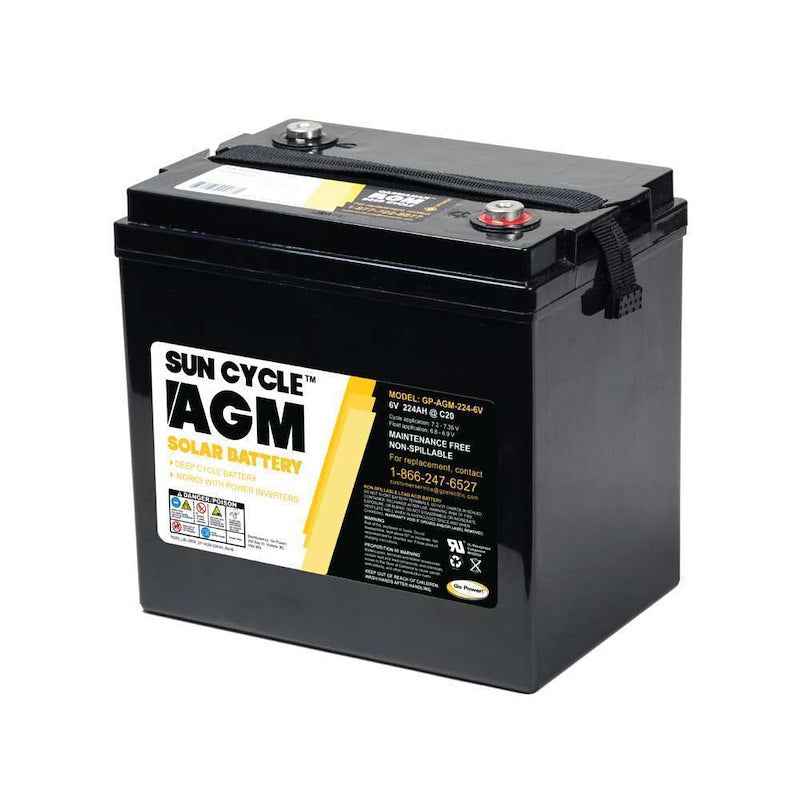

Go Power GP-AGM-224-6V 6V 224Ah AGM Deep-Cycle Solar Battery

Save $190.00
Go Power MPN: GP-AGM-224-6V UPC: 839085002681

Price:
Sale price$579.00 Regular price$769.00

Shipping calculated at checkout

Stock:
In stock (165 units), ready to be shipped

Description

The Go Power GP-AGM-224-6V is a 6V, 224Ah AGM deep-cycle battery designed for solar and inverter battery banks. Its sealed valve-regulated construction is maintenance-free and spill-resistant. Two matching 6V batteries can be connected in series to form a 12V, 224Ah bank; use the same model and follow the system manufacturer's wiring instructions.

Key features

  • 6V AGM deep-cycle battery rated at 224Ah on the 20-hour test
  • Sealed VRLA construction with ABS case
  • BCI Group 27 case
  • T11 brass-insert terminals
  • Nylon carrying strap
  • UL-recognized component

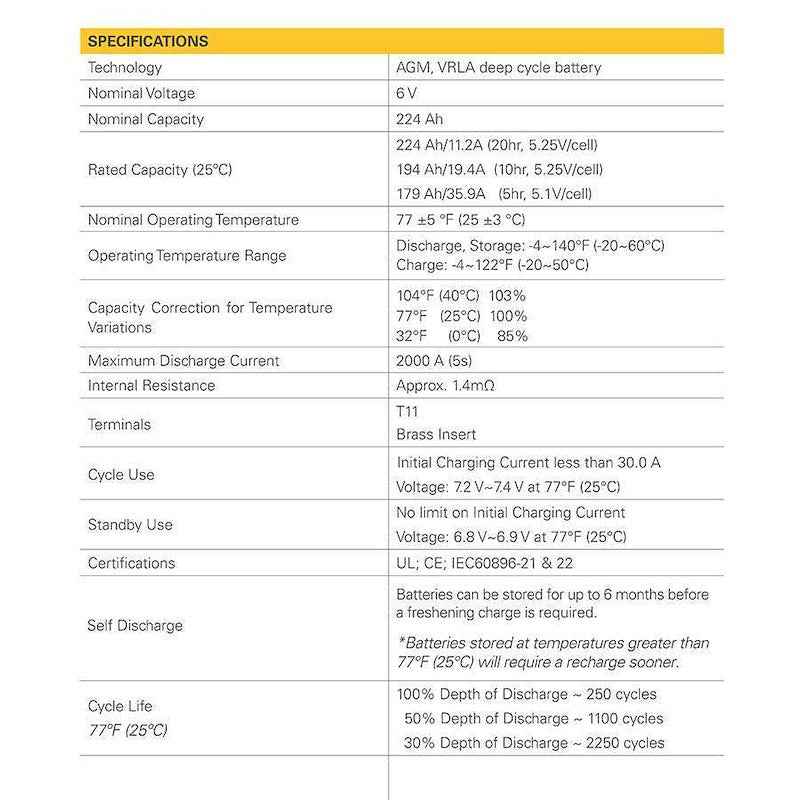

Specifications

Manufacturer model / MPN GP-AGM-224-6V
Battery chemistry AGM, valve-regulated lead-acid (VRLA)
Nominal voltage 6V
Rated capacity 224Ah at 20-hour rate; 194Ah at 10-hour rate; 179Ah at 5-hour rate
Maximum discharge current 2,000A for 5 seconds
Cycle charging voltage 7.2–7.4V at 25°C
Initial cycle charge current 30A maximum
Standby / float voltage 6.8–6.9V at 25°C
Terminals T11 brass insert
Group size BCI Group 27

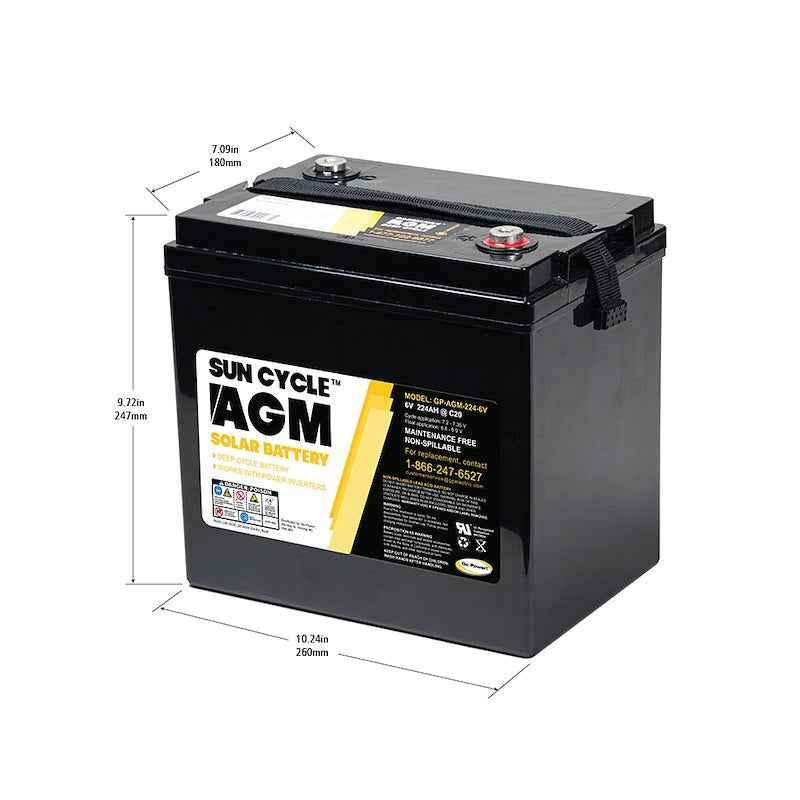

Dimensions (L × W × H) 10.24 × 7.09 × 9.72 in; 9.96 in including terminals
Weight 67.25 lb
Case and cover ABS
Cycle life at 25°C Approximately 300 cycles at 100% depth of discharge, 700 at 50%, and 1,575 at 30%
Certifications UL-recognized, CE, IEC 60896-21/22
Warranty 2 years

Battery bank setup

Two matching 6V batteries connected in series provide a 12V bank while retaining 224Ah capacity. For larger banks, use matched batteries and follow the charging and wiring instructions for the complete system. Do not connect unlike battery models in the same series string.

Model update: Go Power now lists a newer 225Ah 6V AGM battery. This listing identifies the original GP-AGM-224-6V 224Ah model; check the supplied battery label and part number when matching a replacement.
