Description

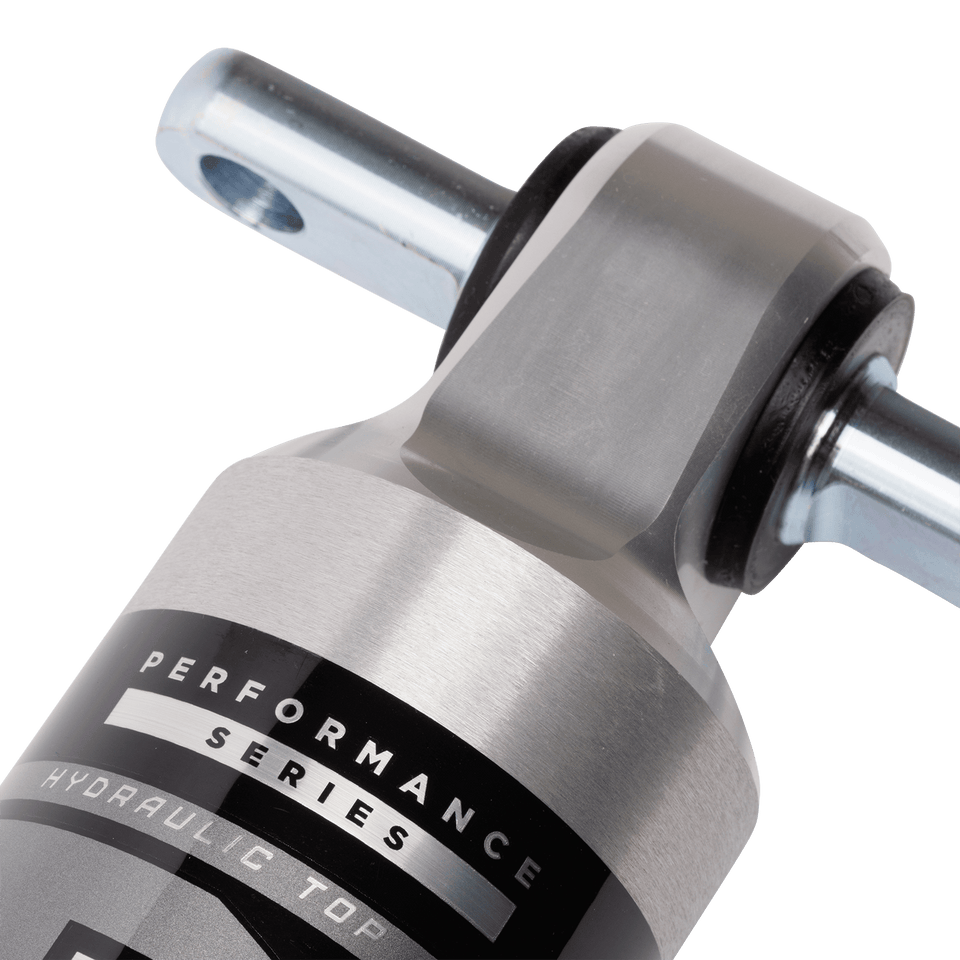

Oil passes through a secondary shim stack near the rebound limit to slow shaft movement. FOX 987-24-024 provides that HTO control with an aluminum body, 5/8-inch steel rod and no external reservoir.
Technical Features
| Series | Performance Series 2.5 HTO; bolt-on design |
|---|---|
| Damping hardware | Vehicle-specific valving and larger pistons |
| Hydraulic Top Out | Position-sensitive rebound control routes oil through a secondary shim stack to slow shaft speed near extension limits |
| Benefit | Reduces harsh top-out on and off pavement; particularly useful with heavier aggressive tires or lifts above OEM height |
| Body | 2.5-inch aluminum with Type II anodizing for heat dissipation and corrosion resistance |
| IFP | Separates oil from high-pressure nitrogen |
Specifications
| Estimated Install Time (Hours) | 0.5 |
|---|---|
| Compressed Length (IN) | 14.7 Inch |
| Extended Length (IN) | 21.48 Inch |
| Rod Diameter (IN) | 5/8 Inch |
| Body Material | Aluminum |
| Lower Mounting Style | Clevis |
| Upper Mounting Style | Cross Pin |
| Body Color | Gray |
| Type | Hydraulic/ Nitrogen Gas Charged |
| Internal Design | Monotube |
| Adjustable Valving | No |
| Includes Boot | No |
| Includes Dust Shield | No |
| With Coil Spring | No |
| With Reservoir | No |
| Valving Type | Non Adjustable Valving |
| Quantity | Single |
| Rod Material | Steel |
| Universality | Vehicle Specific |
| Includes Hardware | Yes |
