Description
The 93430 covers the bed behind a suitable 18–20-inch-deep crossover toolbox while leaving the box accessible. It fits the specified 2009–2017 Ram 1500 and 2010–2017 Ram 2500/3500 6-foot-4-inch beds; low-profile or plastic toolboxes do not work.

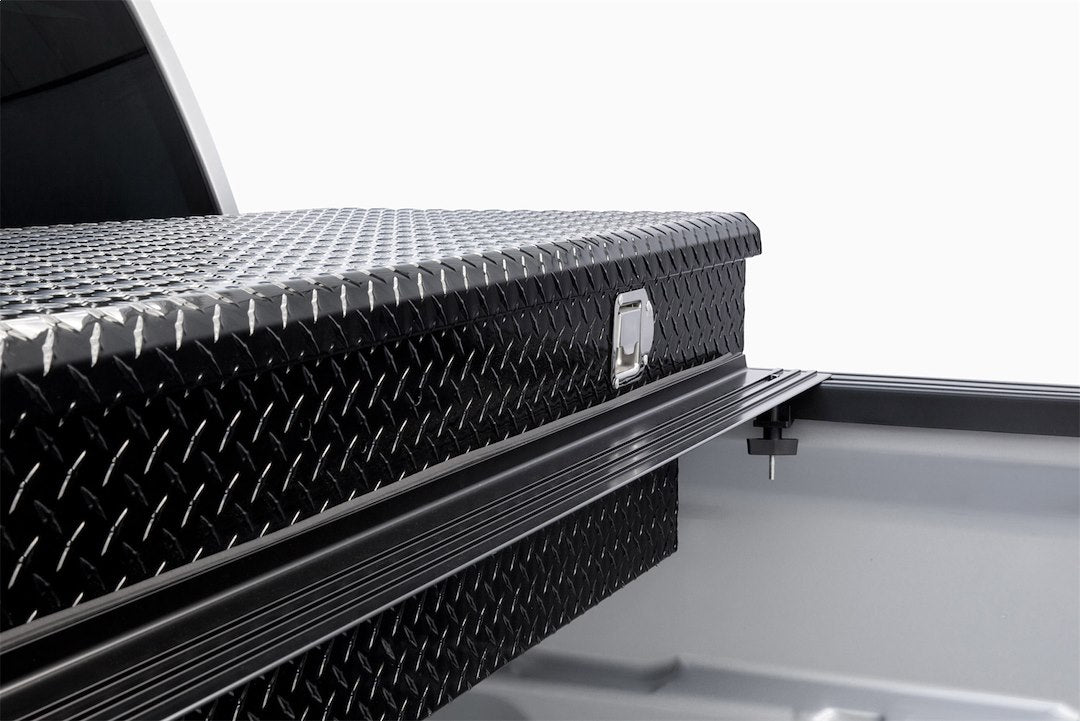

The leather-grained vinyl tarp uses an aluminum frame with dual-pivot hinges. An L-channel and adjustable seal connect the cover to the toolbox. Release the rear clamps through the open tailgate and fold toward the box; no independent cover key is included.
Specifications
| Type | Soft Folding |
|---|---|
| Number Of Folds | 2 Folds/ 3 Panels |
| Low Profile | Yes |
| Color/ Finish | Black Matte |
| Color Group | Black |
| Material | Vinyl |
| Locking Type | Non-Lockable |
| Hinged At Front | No Separate Front-Opening Hinge |
| Compatible With Ladder Rack | No |
| Includes Ladder Rack | No |
| Compatible With Headache Rack | No |
| Compatible With Tool Box | Yes |
| Compatible With Bed Rails | No |
| Compatible With Bed Caps | Factory Bed Rail Caps May Require Clamp-Clearance Trimming |
| Bed Side Rail Mount | Top Mount |
| With Lights | No |
| Installation Type | Clamp-On |
| Drilling Required | No |
| Tool Box Size | Use With Most 18 To 20 Inch Deep Crossover Toolboxes; Not Low-Profile Or Plastic |
| Estimated Install Time (Hours) | 1 |
Manufacturer Warranty
Limited Lifetime Warranty
Installation and Use
Stow the rear clamps before folding the second section. Drive only fully closed and secured or fully folded with both straps and tethers attached. Clear debris before opening and remove the cover before towing the truck backward. Plastic bed-rail caps may need trimming for secure clamp contact; do not cut or scrape the truck bed.
