Description

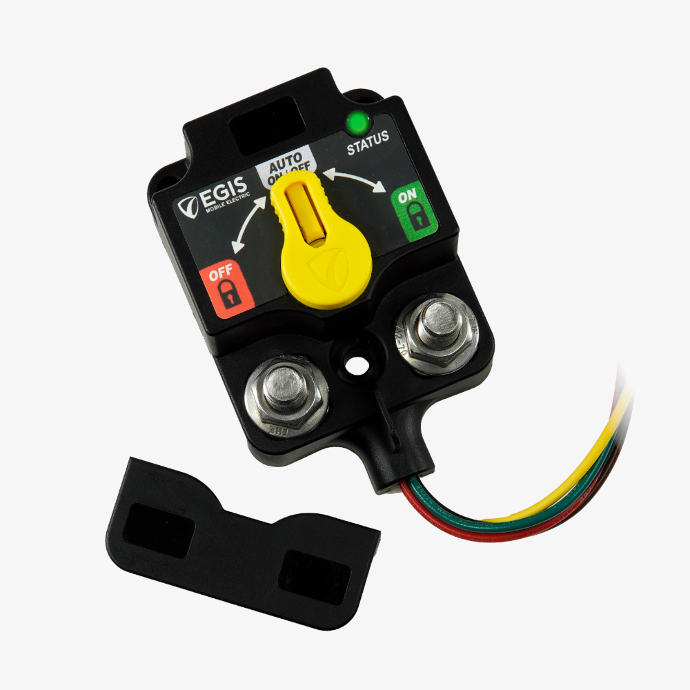

The 8710-1300 allows a relay to be commanded closed, open or into voltage-based automatic operation through remote On/Off/Auto inputs. Its compact format supports 500 amps continuously per relay and lists a 1,500-amp surge rating.

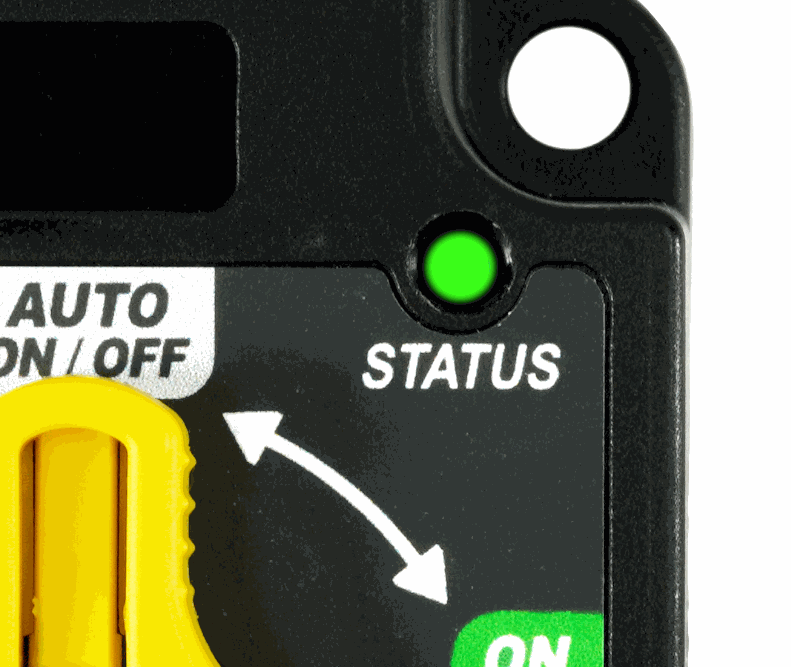

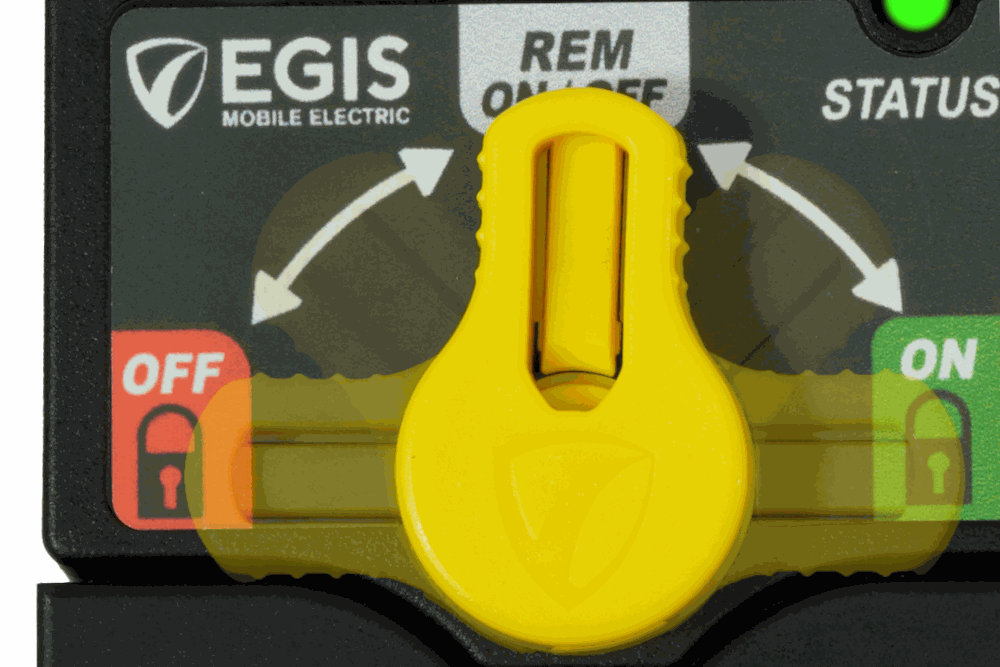

DIP switches choose relay/battery-disconnect, voltage-sensing or low-voltage disconnect modes as an alternative to legacy remote switching. Each relay has local and remote LED indication. Optional front manual override knobs on equipped versions allow on/off locking for servicing, while other versions omit the knobs.
Specifications
| Surge Ampere Rating (A) | 1500 Amp |
|---|---|
| Continuous Ampere Rating (A) | 500 Amp |
| Installation Type | Bolt-On |
| Base Diameter (IN) | Bracket Mount |
| Activation Type | Manual |
| Type | Rotary With Fixed Lever |
| Marine | Yes |
