Description

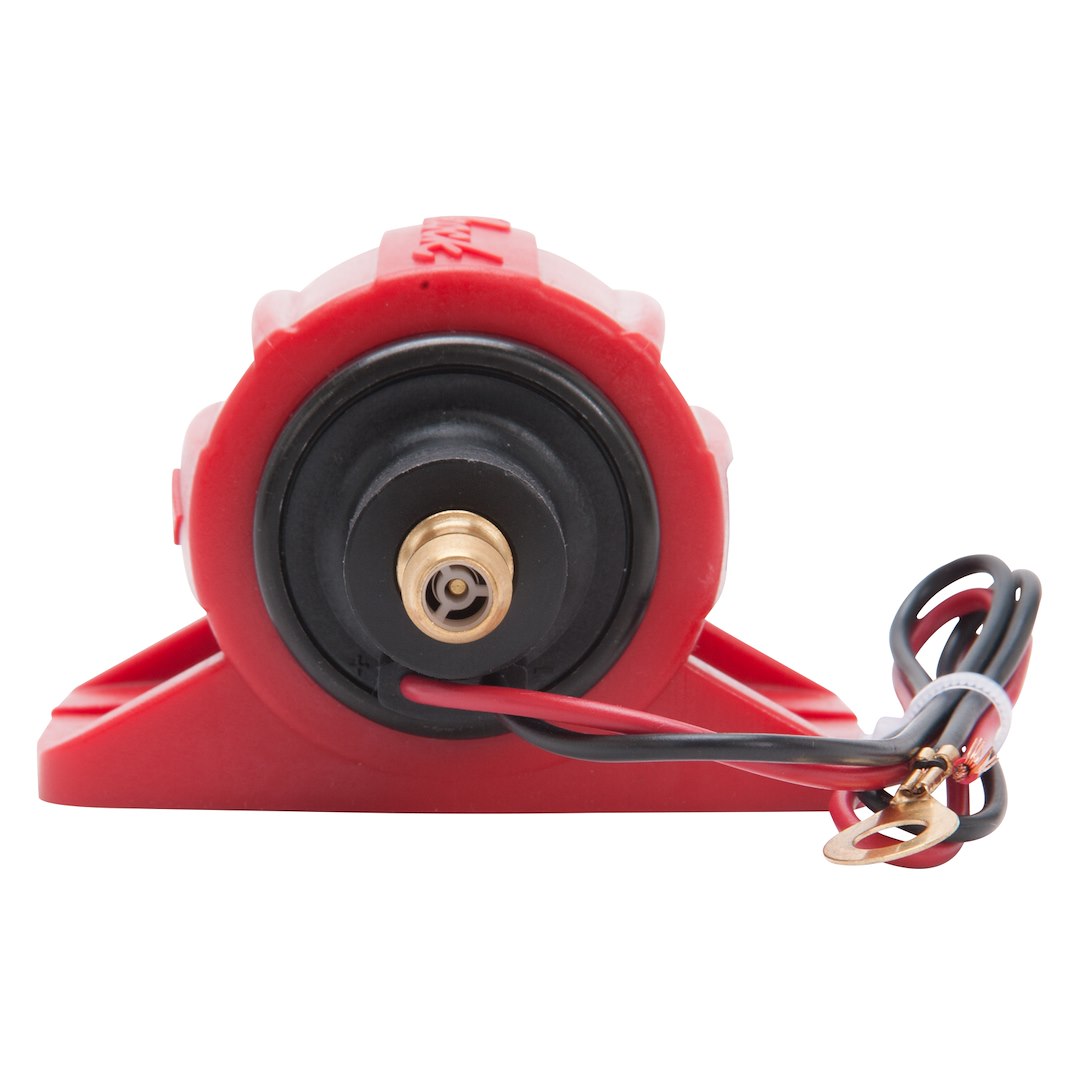

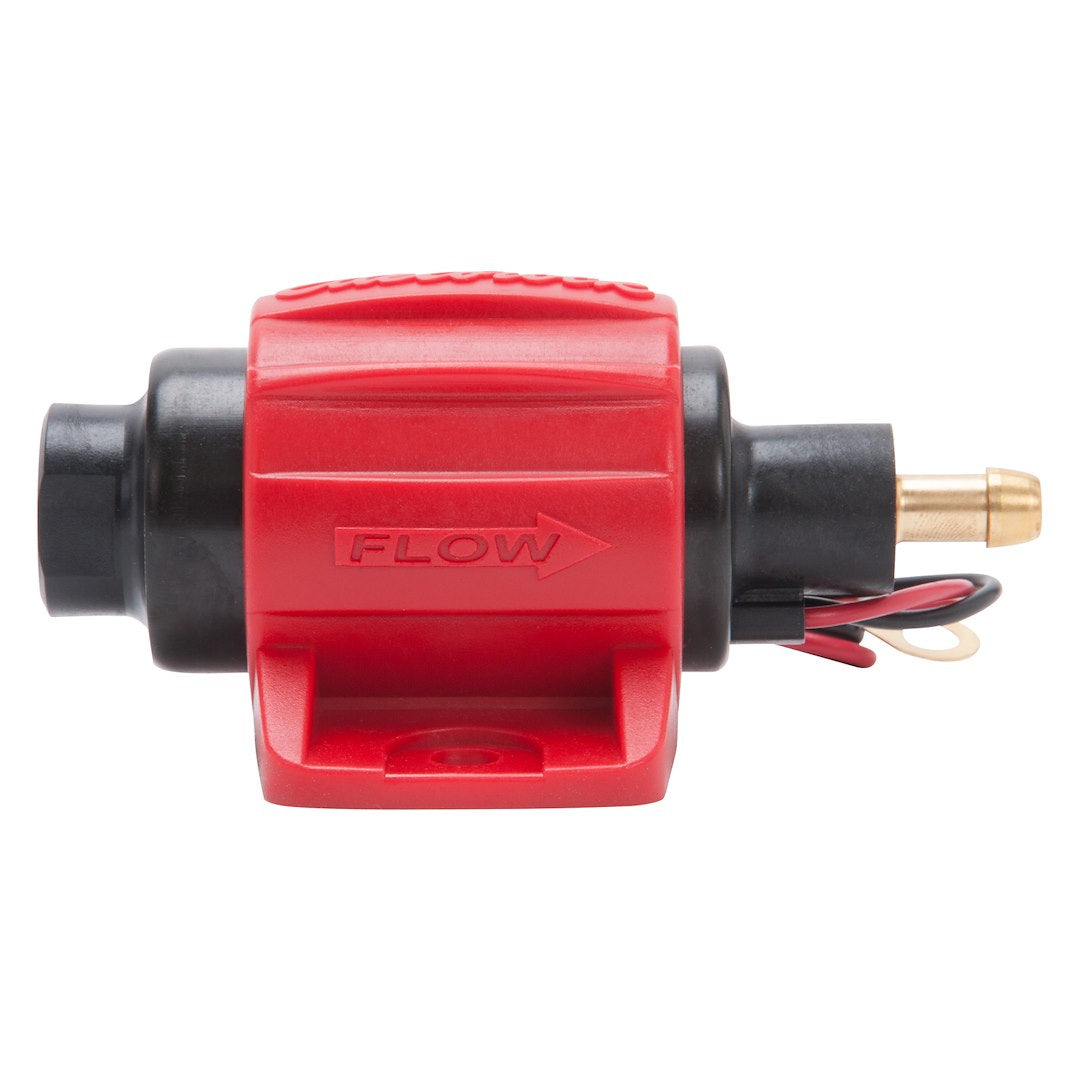

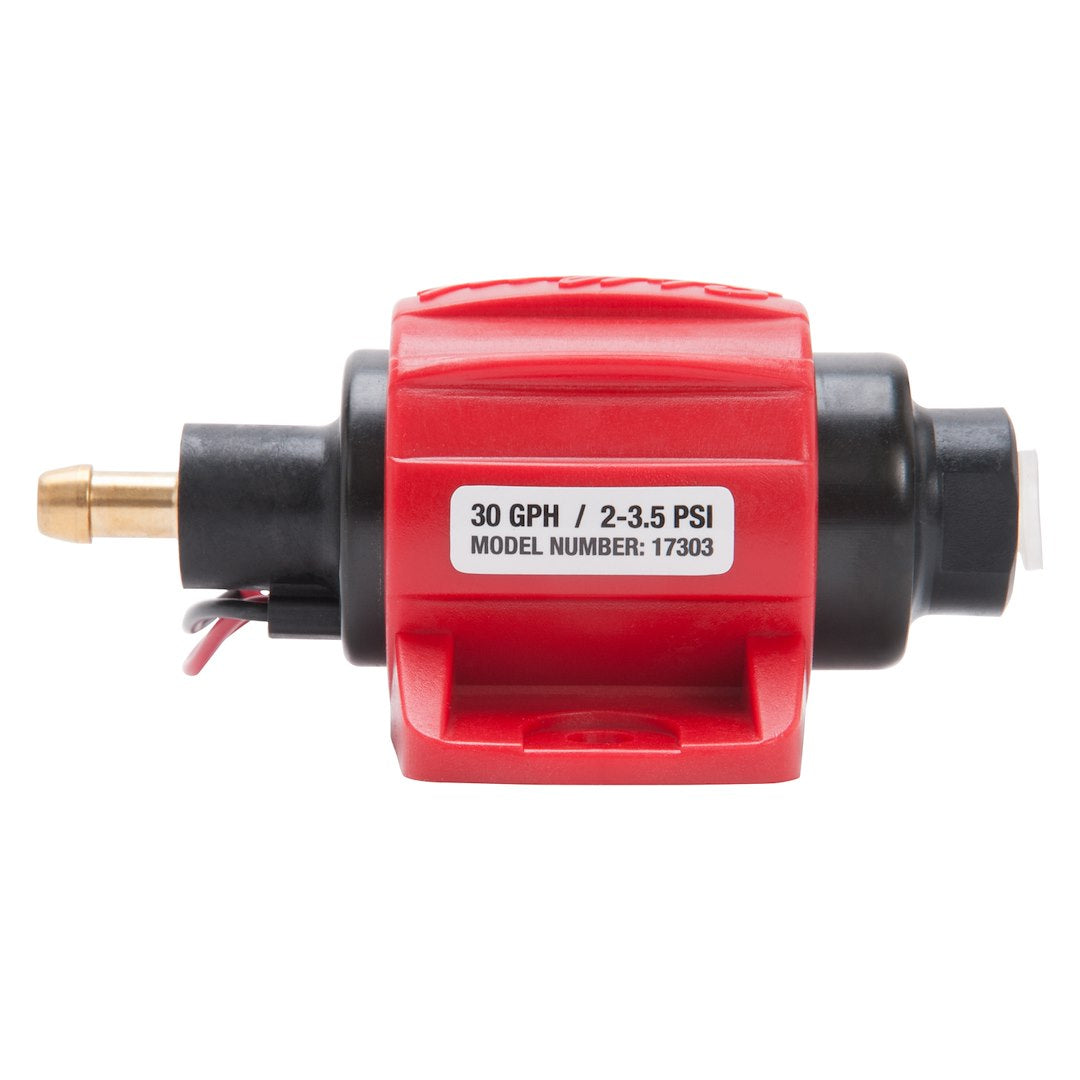

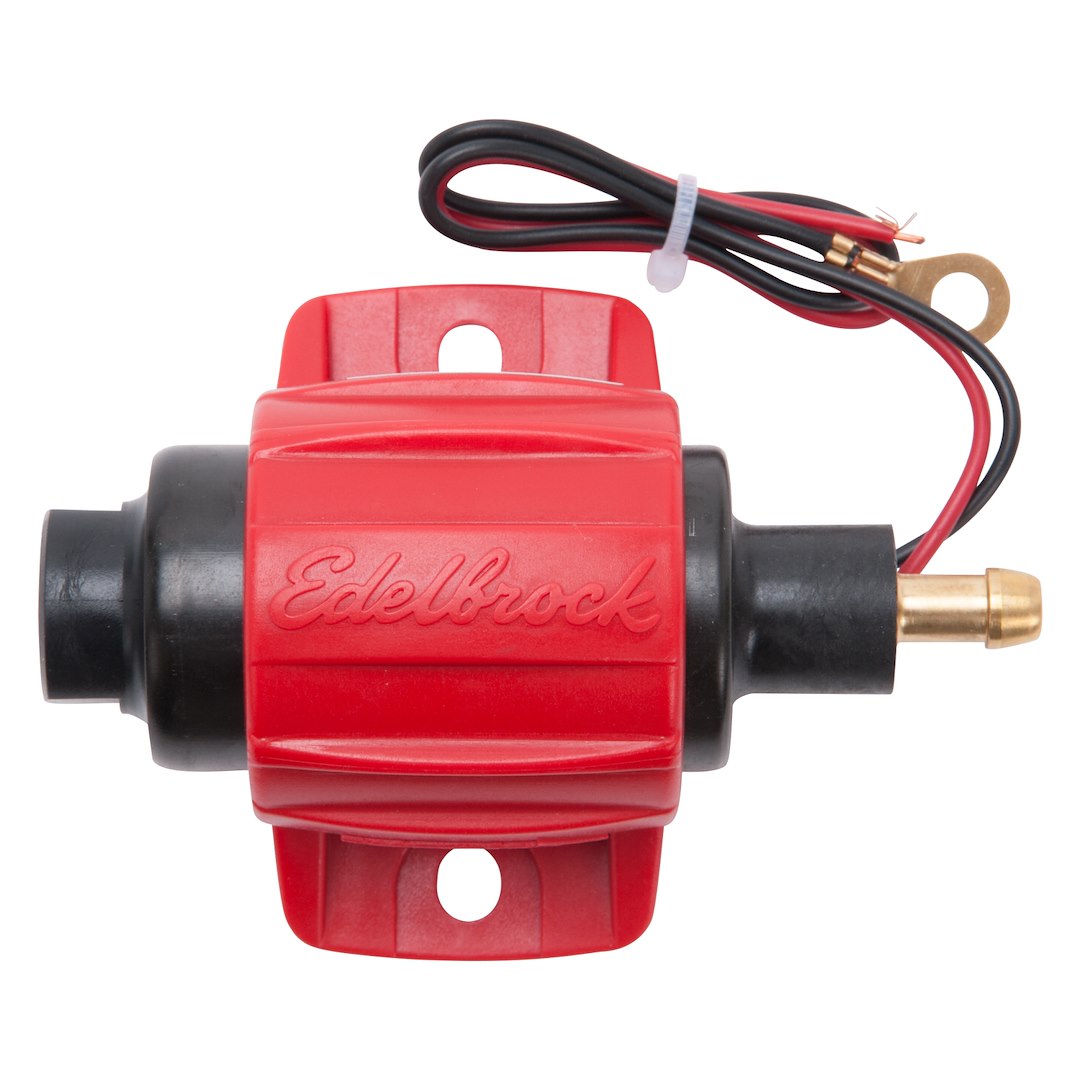

Gasoline delivery at 2–3.5 PSI is specified for the 17303 Universal Micro electronic pump. The 12-volt unit offers a 30-GPH free-flow rating in a compact design intended for quiet operation with reduced risk of flooding or vapor lock.
Connections consist of a single 1/8-inch (-2 AN) male-thread inlet and a single 5/16-inch (-5 AN) hose-barb outlet. A hanger accompanies the specified in-tank mounting arrangement; a fuel sending unit is excluded.
Specifications
| Inlet Size | -2 AN (1/8 Inch) |
|---|---|
| Outlet Size | -5 AN (5/16 Inch) |
| Inlet Quantity | 1 |
| Outlet Quantity | 1 |
| Voltage Rating | 12 Volt |
| Estimated Install Time (Hours) | 2 |
| Maximum Pressure (PSI) | 2 To 3.5 Pounds Per Square Inch |
| Free Flow Rate | 30 Gallon Per Hour |
| Fuel Type | Gasoline |
| Outlet Attachment | Hose Barb |
| Mounting Style | In-Tank |
| Inlet Attachment | Male Threads |
| With Sending Unit | No |
| With Mounting Hanger | Yes |
