Description

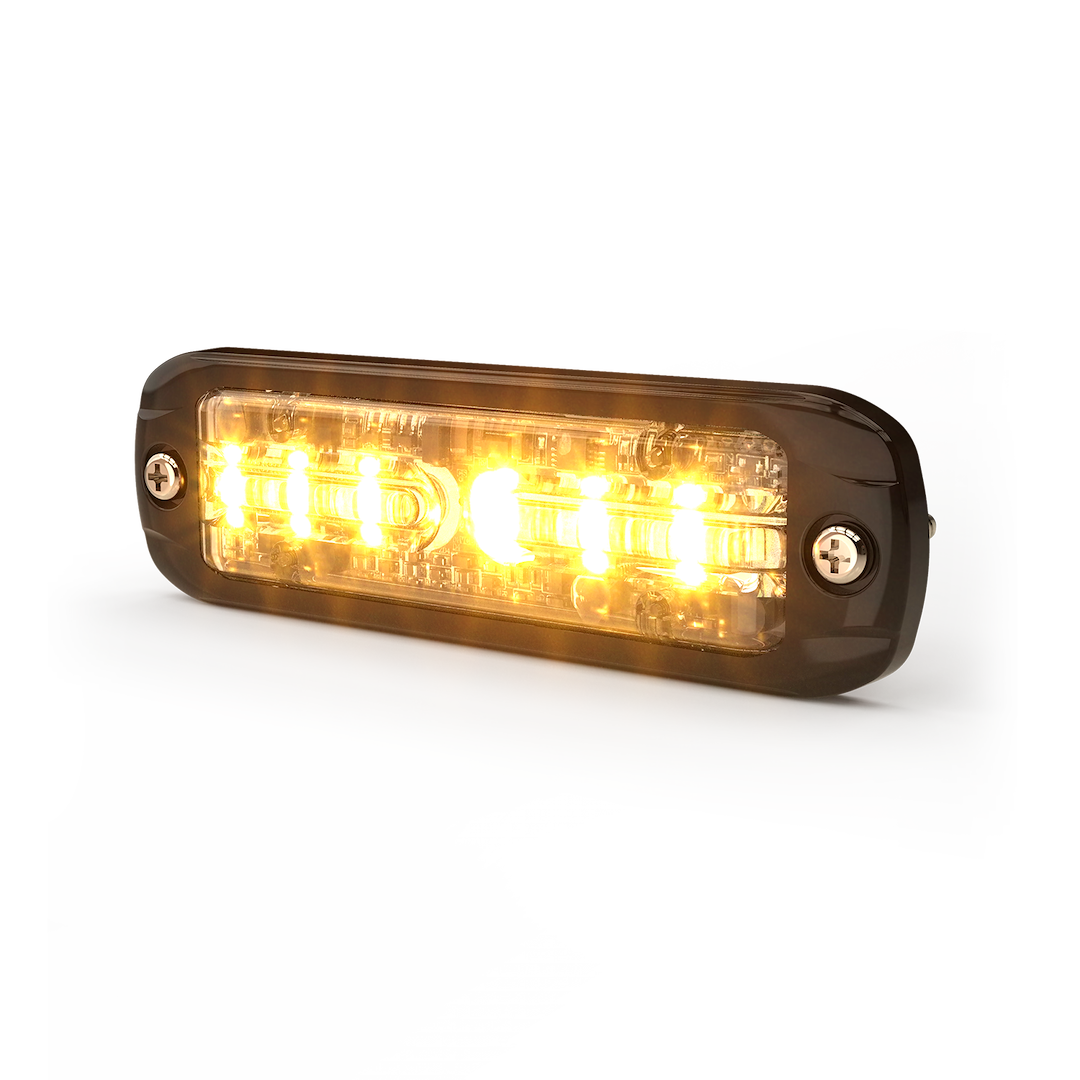

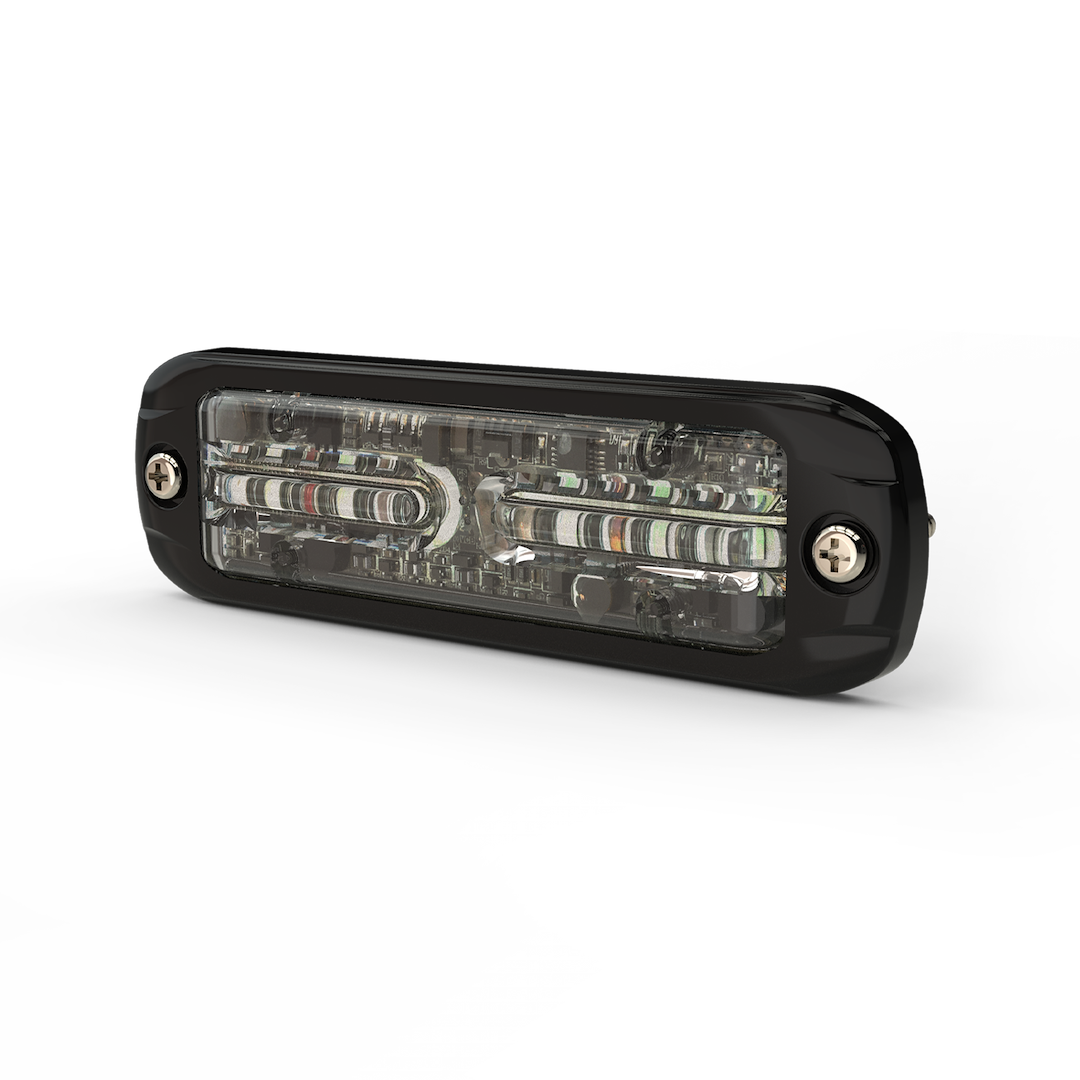

The ED3802AW places wide-angle optics behind an amber/white polycarbonate lens. A die-cast base supports this ultra-low-profile surface-mount LED unit, which is 25 percent thinner than preceding models.
Each LED color is independently controllable. The 69 flash patterns synchronize for simultaneous or alternating operation. Supply: 12–24 volts DC; temperature range: -22°F to +122°F. Limited warranty: 5 years.
Specifications
| Shape | Rectangular |
|---|---|
| Length (IN) | 4-3/4 Inch |
| Width (IN) | 0.37 Inch |
| Height (IN) | 1.4 Inch |
| Diameter (IN) | Not Applicable |
| Style | Directional |
| Type | LED |
| Mount Type | Surface Mount |
| Lens Color | Amber/ White |
| Light Pattern | 69 Flash Pattern |
| Power Supply | 12 To 24 Volt |
| With Cigarette Lighter Plug | No |
| Includes Control Panel | No |
| Lens Material | Polycarbonate |
| Base Material | Die-Cast |
| Wire Length (FT) | No Wire |
| Number Of Alley Lights | No Alley Lights |
| Number Of Takedown Lights | No Takedown Lights |
| Number Of Flashing Marker Lights | 69 |
| Mounting Strap Material | No |
| Includes Gaskets | No |
