Description
LED heat transfers through a bonded copper-core circuit board into the redesigned powder-coated aluminum housing of these C2 2.0 pods. Their compact 2-inch platform can fit suitable roof racks, roll bars, bumpers or A-pillars where mounting space permits.

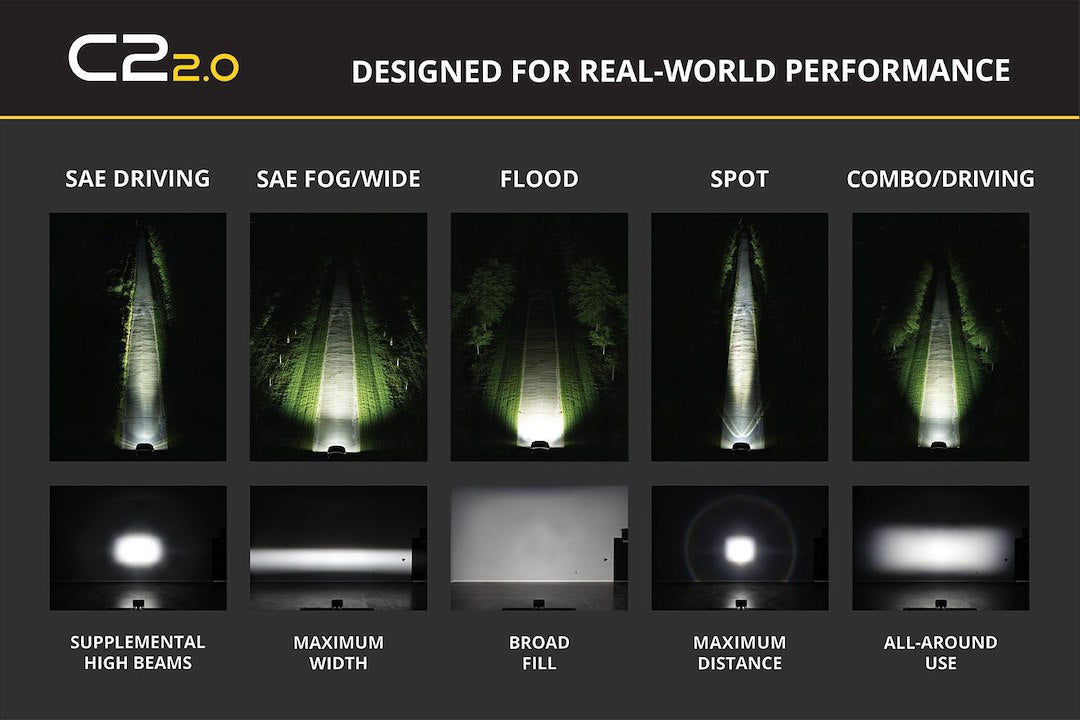

Patented, revised TIR optics concentrate the yellow driving beam and reduce glare, while a separate amber accent backlight fills the optic. The pair is rated at 3,150 lumens and 23 watts and carries the listed IP69K rating. Two brackets, two Deutsch-style pigtails and mounting hardware are supplied.
For the C2 2.0 platform, Diode Dynamics reports up to 120% greater intensity from its revised TIR optics compared with C2 1.0.
Compatibility
Confirm pod mounting clearance and the voltage and wiring specifications below.
- Voltage Rating: 9 To 30 Volt
- Wattage: 23 Watt
- Ampere Rating At 12 Volts: 1.8 Amp

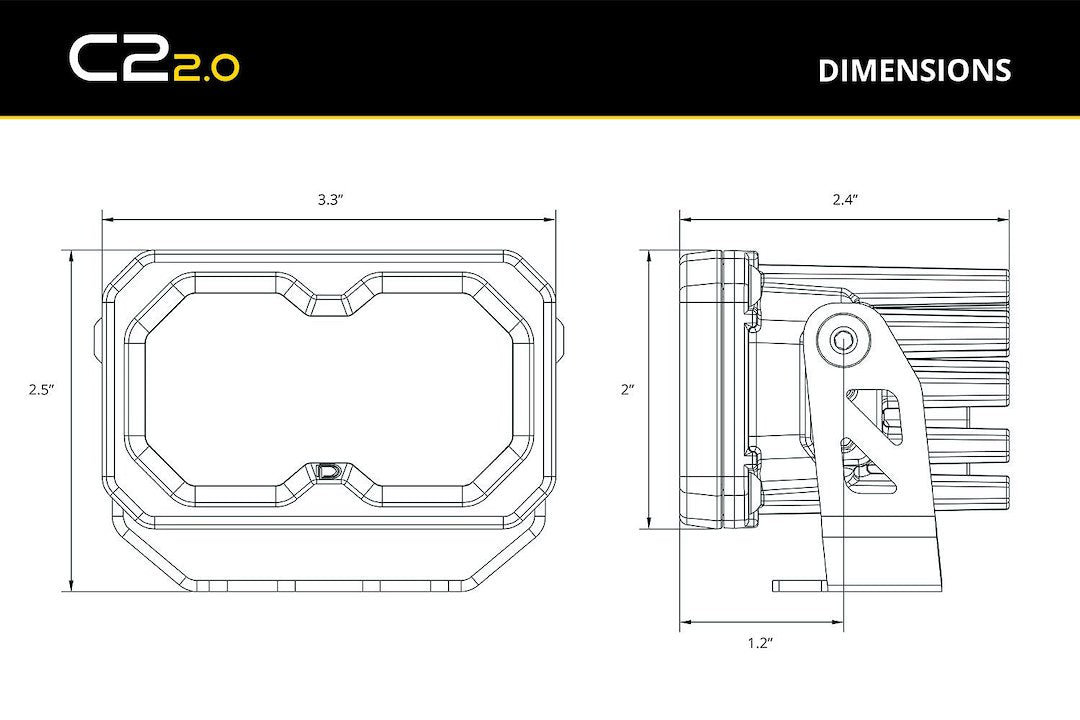

- Height/ Width: 2 Inch Height X 3-5/16 Inch Width
- Depth: 2-1/2 Inch
- Mounting Style: Bracket Mount
Specifications
| Estimated Install Time (Hours) | 1.5 |
| Ampere Rating At 12 Volts | 1.8 Amp |
| Height/ Width | 2 Inch Height X 3-5/16 Inch Width |
| Depth | 2-1/2 Inch |
| Wattage | 23 Watt |
| Lumens | 3150 Lumens |
| Voltage Rating | 9 To 30 Volt |
| Housing Material | Aluminum |
| Housing Color | Black |
| Mounting Style | Bracket Mount |
| Beam Type | Driving Beam |
| Waterproof Rating | IP69K Rated |
| Bulb Type | LED |
| Diameter | Not Applicable |
| Bulb Specifications | Osram Ostar Projection Compact LED Bulb |
| Lens Material | Polycarbonate |
| Shape | Rectangular |
| Universality | Semi-Universal |
| Quantity | Set Of 2 |
| Includes | With 2 Deutsch-Style Wire Pigtails/ 2 Mounting Brackets And Hardware |
| Light Color | Yellow |
