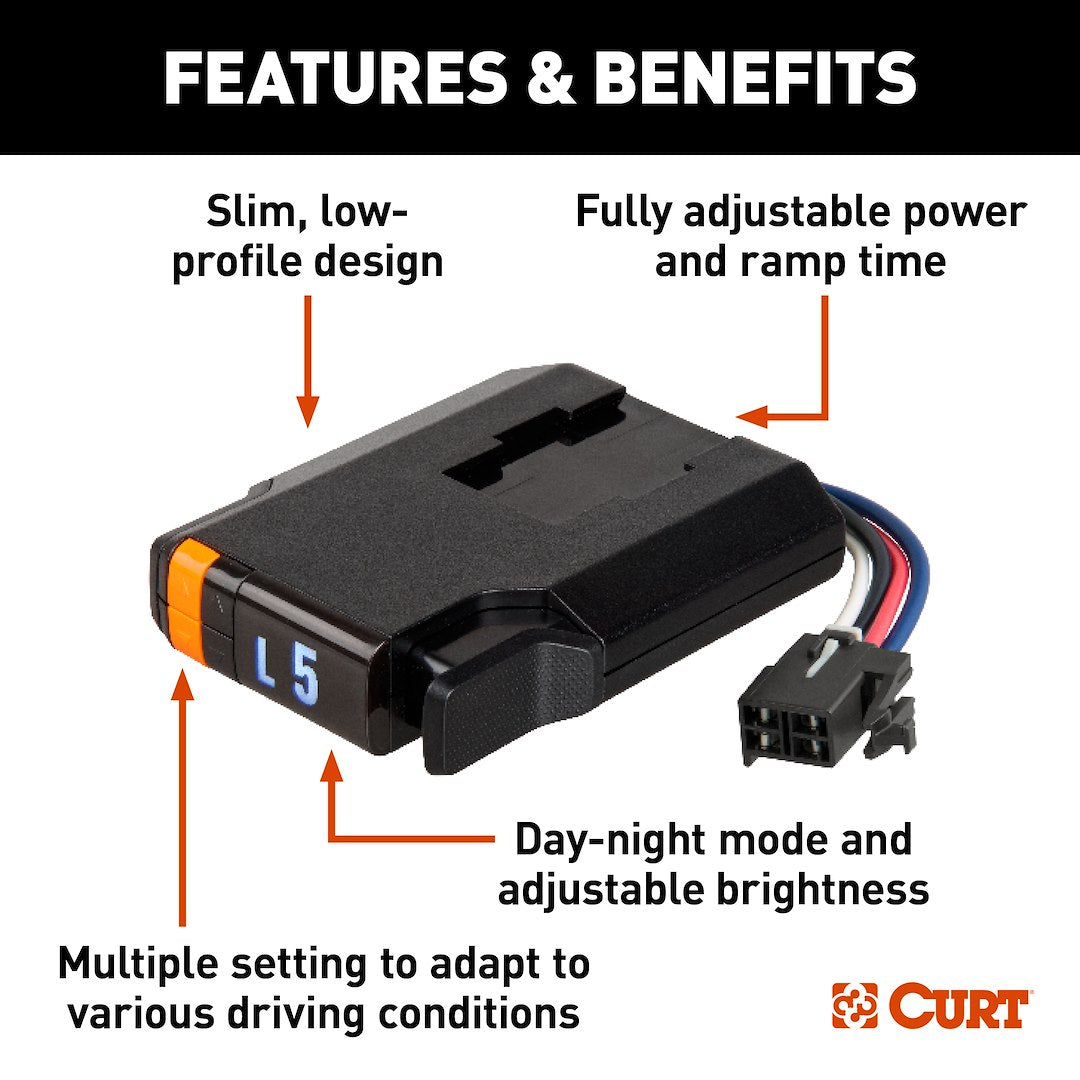

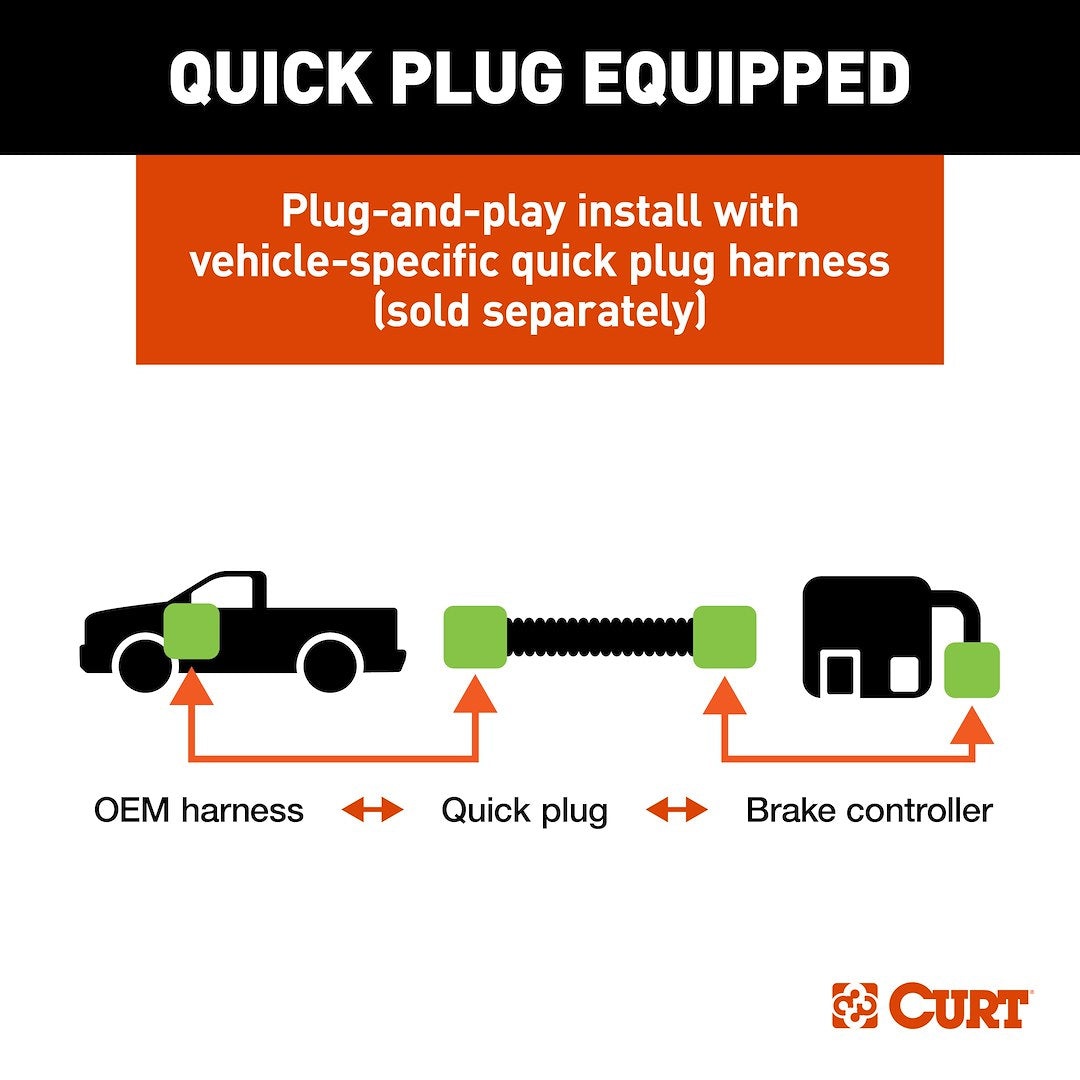

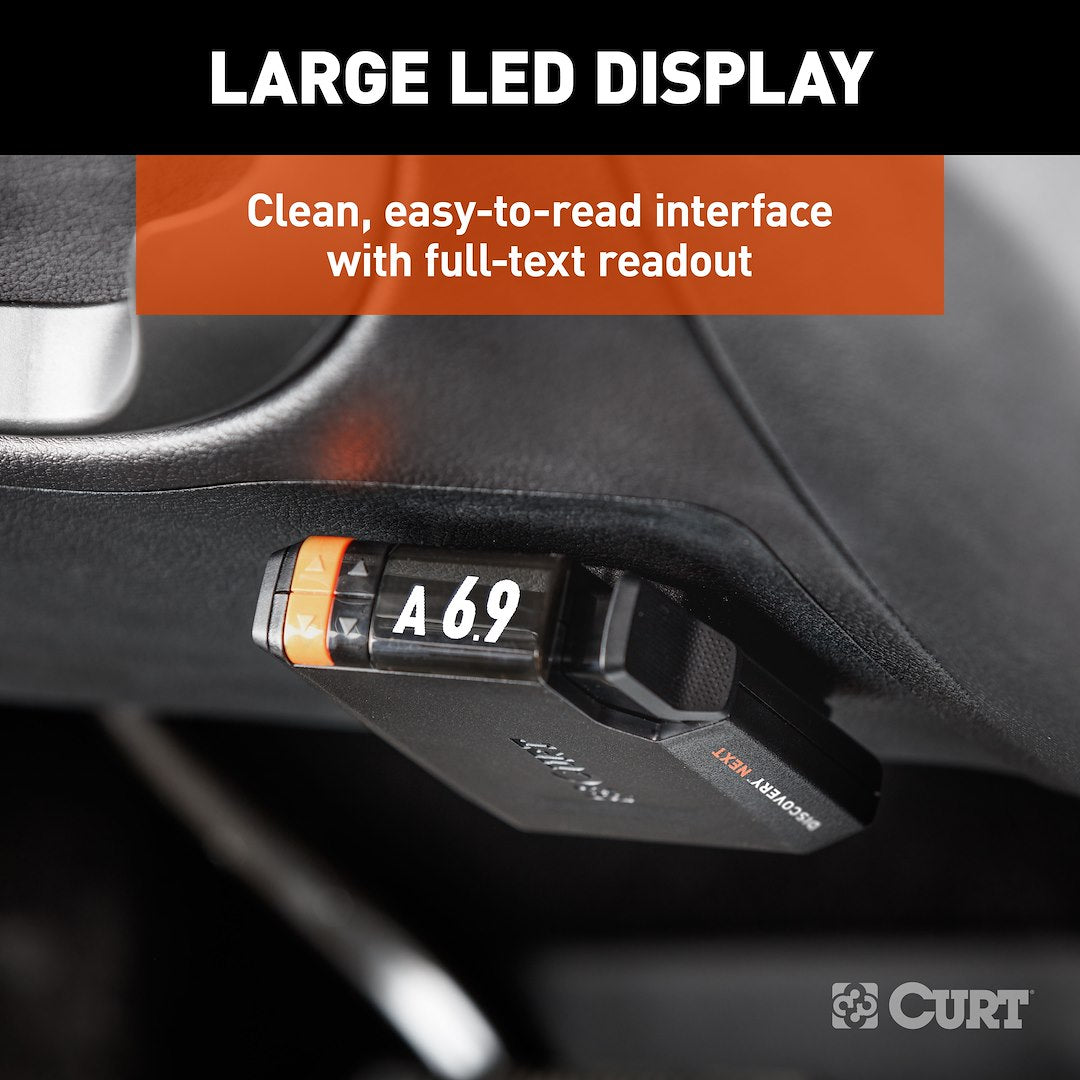

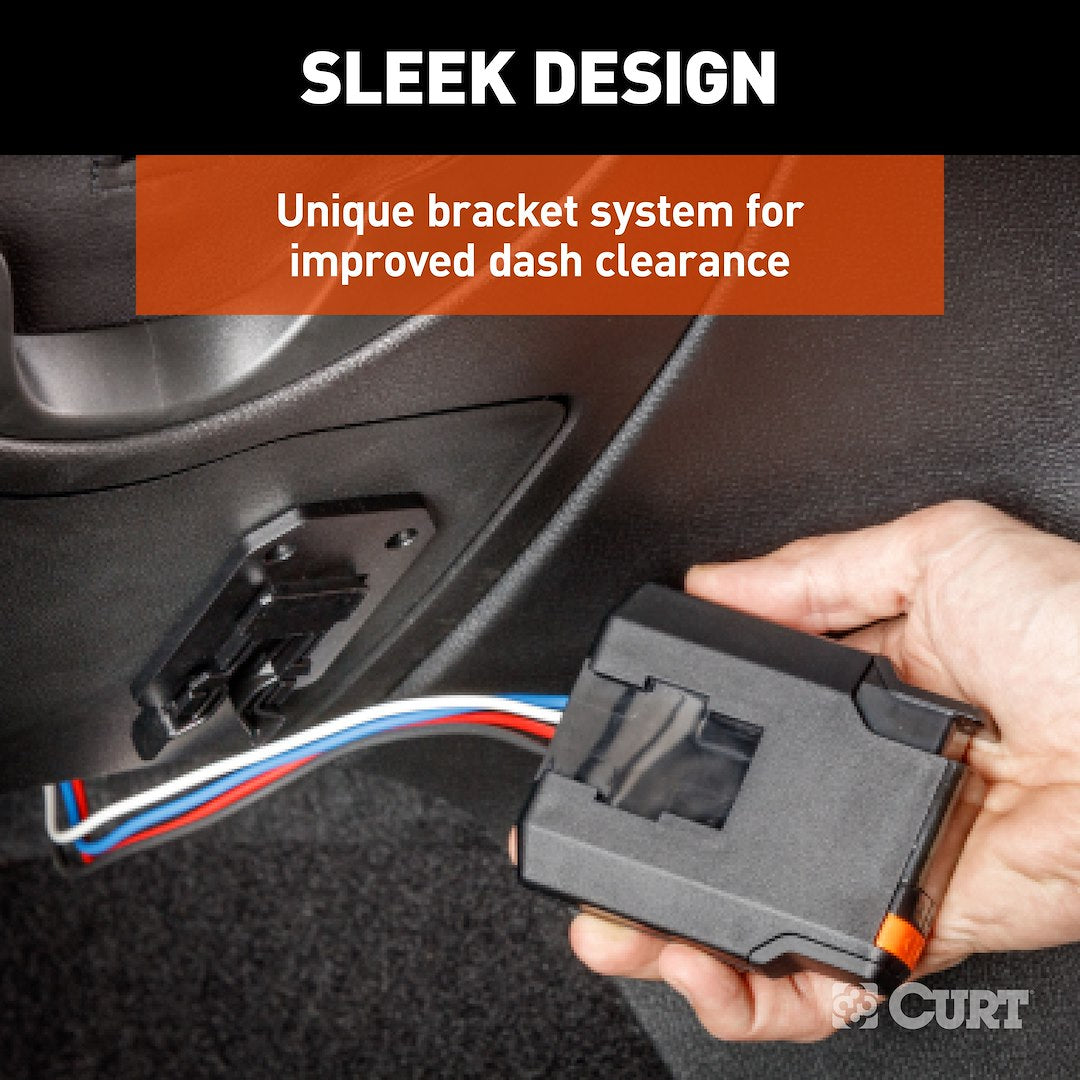

CURT 51126 Discovery NEXT is a time-delay trailer brake controller for one to four axles (two to eight electric brakes). It features an LCD digital display with full-text diagnostics, adjustable gain and ramp time, day/night brightness and a low-profile mounting bracket. Because output builds over a selected time interval, it does not proportion braking using the vehicle's deceleration sensor. The unit requires no leveling and can be mounted at different angles. Mounting hardware is included; a matching vehicle-specific CURT quick-plug harness is sold separately. Confirm the vehicle's brake-controller port and electric-brake wiring before installation.
Key Features
- Type: Time Delay.
- With Wiring Harness: No.
Specifications
| Accommodated Number Of Trailer Axles |
1 To 4 Axles |
| Type |
Time Delay |
| Brake Systems Type |
2 To 8 Brake System |
| Display |
LCD Digital Display |
| With Wiring Harness |
No |
Part Identification
| Brand |
CURT |
| Manufacturer Part Number |
51126 |
Installation Notes
| Estimated Install Time (Hours) |
1 |
