Description

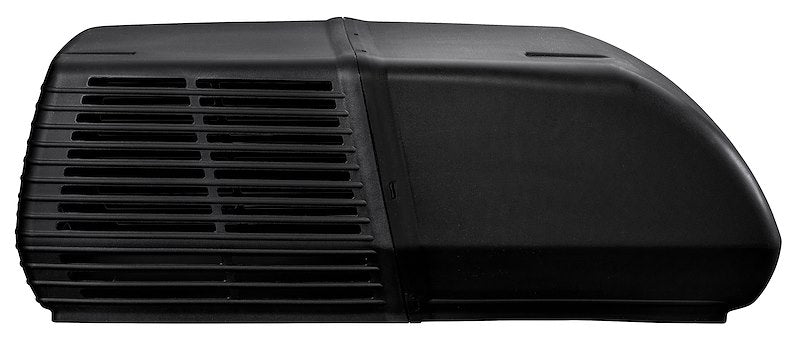

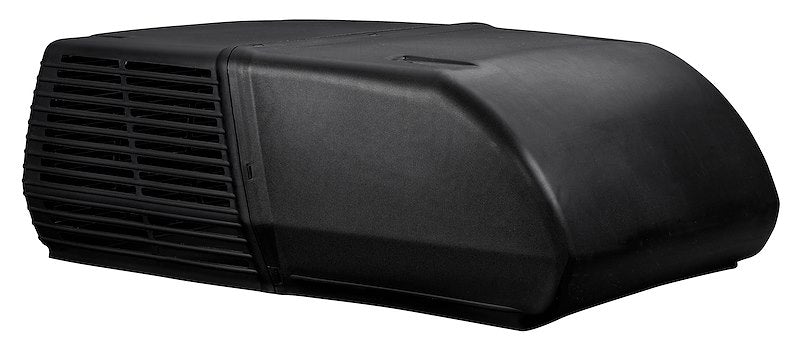

Coleman Mach 38203-0693 3 Plus Rooftop RV A/C 13500 BTU Non-Ducted is an new air conditioner from Coleman Mach, with the key specifications and application details provided below.
Product Details
- Product Line: Mach 3 Plus
- Manufacturer Part Number: 38203-0693
- Mounting Size: Fits 14 Inch x 14 Inch Rooftop Vent Openings
- Cooling Capacity: 13500 BTU
- System Type: Non-Ducted System
- Cooling Type: Evaporative Cooling
- Function: AC Only
- Color: Textured Black
- Voltage Rating: 120 Volt
- Compressor Draw: 12.8 Amp
- Amp Rating: 13 Amp
- Evaporator Flow Rate: 320 CFM
- Height: Medium Profile - 13.8 Inch
- Width: 26.1 Inch
- Length: 38 Inch
- Weight: 79.5 Pounds
- Heat Pump: No
- Condensate Pump: No
- Remote Control: No
- Zone Control Board: Not Included
- Estimated Installation Time: 1.5 Hours
- Marine Approved: No
- Condition: New
Features & Benefits
- Powerful 13,500 BTU rooftop RV air conditioner
- Designed specifically for non-ducted RV cooling systems
- Quiet operation for improved interior comfort
- Large evaporator and condenser coils improve heat dissipation
- Raised lance fin coil design enhances cooling efficiency
- Strong 320 CFM airflow for effective cabin cooling
- All-copper tubing and gas-flux brazed joints for durability and long service life
- Compatible with optional 5,600 BTU electric heat element
- Medium-profile rooftop design for dependable RV cooling performance
- Textured black finish complements modern RV styling
- Product Description
- The Coleman Mach 3 Plus Rooftop RV Air Conditioner delivers dependable cooling performance and quiet operation for non-ducted RV climate control applications. Featuring 13,500 BTU of cooling capacity and strong 320 CFM airflow, this rooftop air conditioner is engineered to provide efficient interior comfort for RVs, campers, trailers, and specialty vehicles.
- Designed specifically for non-ducted RV systems, the Mach 3 Plus fits standard 14 Inch x 14 Inch rooftop vent openings and offers reliable cooling performance for a wide range of RV applications.
- The system utilizes large evaporator and condenser coils with raised lance fins to improve heat dissipation and maximize cooling efficiency. Its all-copper tubing and gas-flux brazed joints are engineered for excellent durability and long-term reliability in demanding travel conditions.
- This model is also compatible with an optional 5,600 BTU electric heat element for supplemental heating during cool-weather camping conditions.
- The textured black finish provides a sleek modern appearance ideal for contemporary RVs and specialty vehicle applications.
- Please note that both the ceiling assembly and thermostat must be ordered separately.
- Compatibility Notes
- Fits standard 14 Inch x 14 Inch rooftop vent openings
- Designed for non-ducted RV systems
- Ceiling assembly sold separately
- Thermostat sold separately
- Compatible with optional Coleman Mach heat strip
Important Notes
- AC-only model — no heat pump included
- Optional electric heat strip available separately
- Zone control electronic board not included
- Remote control not included
- Condensate pump not included
- Professional installation recommended
Warranty
- Limited 2 Year Warranty
